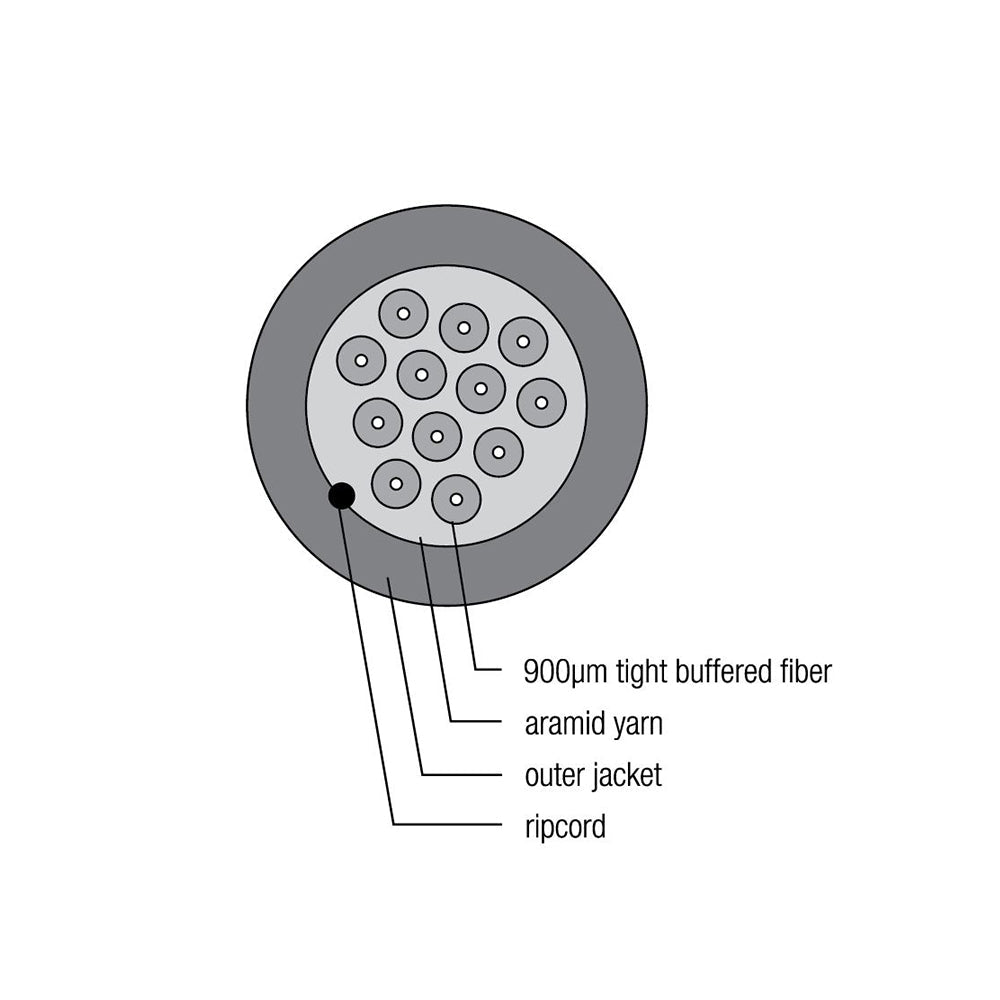

This bulk OM3 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
This cable can be used in all environments: riser, general inside plant and outside plant.
- Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696.
- Approved for mining applications.
- RoHS/REACH Compliant.
Physical Characteristics
|
Color |
Black |
Fiber Optic Type |
OM3 50 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
Fiber Count |
12-Strand |
Glass Fiber
|
Corning ClearCurve |
Sub Unit Diameter |
900 Micron |
Nominal Diameter |
4.8mm |
Tension(Installation) |
150 lbs |
Tension(Long Term) |
45 lbs |
Bending Radius(Installation) |
7.2cm |
Bending Radius(Long Term) |
4.8cm |
Operating Temperature |
-40 deg C ~ +70 deg C |
Storage Temperature |
-40 deg C ~ +70 deg C |
Installation |
-10 deg C ~ +70 deg C |
Attenuation Range |
@850nm 3.0dB/km @1300nm 1.2dB/km |
Bandwidth Range |
@850nm > 1500 MHz/km @1300nm > 500 MHz/km |
Gigabit Ethernet Min. Link Distance |
850nm = 1000 1300nm = 500 |
10 Gigabit Ethernet Min. Link Distance |
850nm = 300 |
Fire Rating |
OFNR |
UV Stabilizer |
Yes |
Anti-Fungus Protection |
Yes |
Certification(s)
|
ETL |
Yes |
c(ETL) |
Yes |
Product Support
|
RoHS |
Yes |
Country of Origin |
USAĀ |
