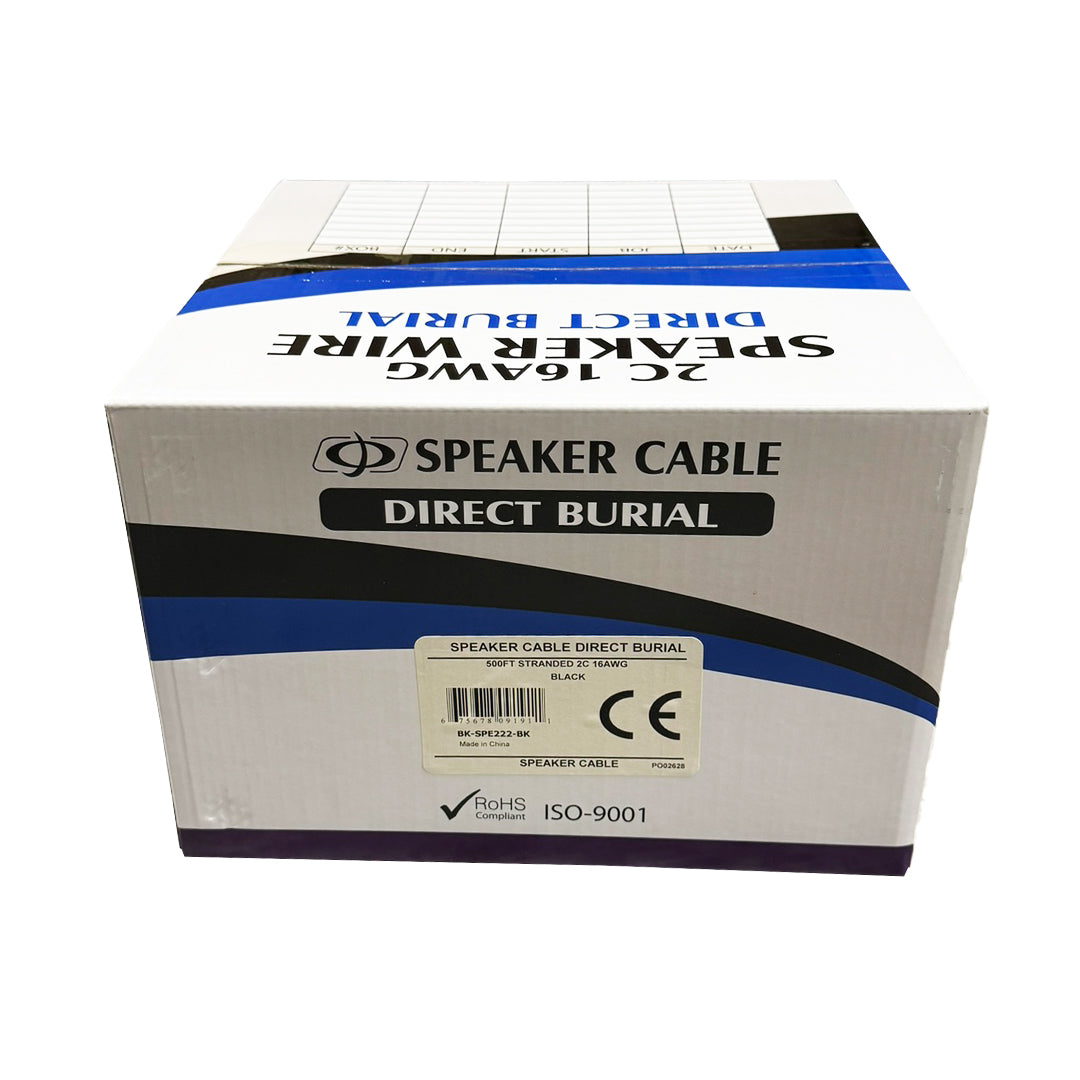

500ft 2C 16AWG Direct Burial Bulk Speaker Cable - Black

Speaker Bulk CableSKU: BK-SPE222-BK

Price:
Sale price$103.31 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

This bulk outdoor speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors and used to connect speakers to amplifiers.

Physical Characteristics
Cable Length 500 foot [152.4m]
Color Black
Temperature Rating -40℃ ~ 75℃
Cable Diameter 6.00±0.10mm
Number of Conductors 2 Conductor
Wire Gauge 16AWG
Conductor Material 100% Bare Copper
Stranding Count & Diameter 65/0.16mm ± 0.004
Assembly Diameter 4.80±0.20
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating Outdoor
Jacket
Average Thickness
0.60mm
Jacket
Minimum Thickness
0.54mm
Insulation
Average Thickness
0.310mm
Insulation
Minimum Thickness
0.280mm
Insulation Diameter 2.10±0.05
Ripcord Nylon
Cable Shielding None
Core wrap 1 PET Tape
Core wrap 2 Water Block Tape
Max Voltage Rating
300V
Flammability Test CMX
Capacitance < 11.2nF/100M
Resistance 70+/-10 OHM
Conductor Resistance Max 15.5ohm/km at 20℃
Insulator Resistance Min 50MΩ km at 20℃
Mechanical Characteristics
Before Aging Tensile Strength (Mpa): >=10.6
Elongation (%): >=300
Aging Condition (deg C x hrs) 100x168
After Aging Tensile Strength (Mpa): >=85% of unaged
Elongation (%): >=50% of unaged
Approvals
CE Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 19.9 lbs
