Description

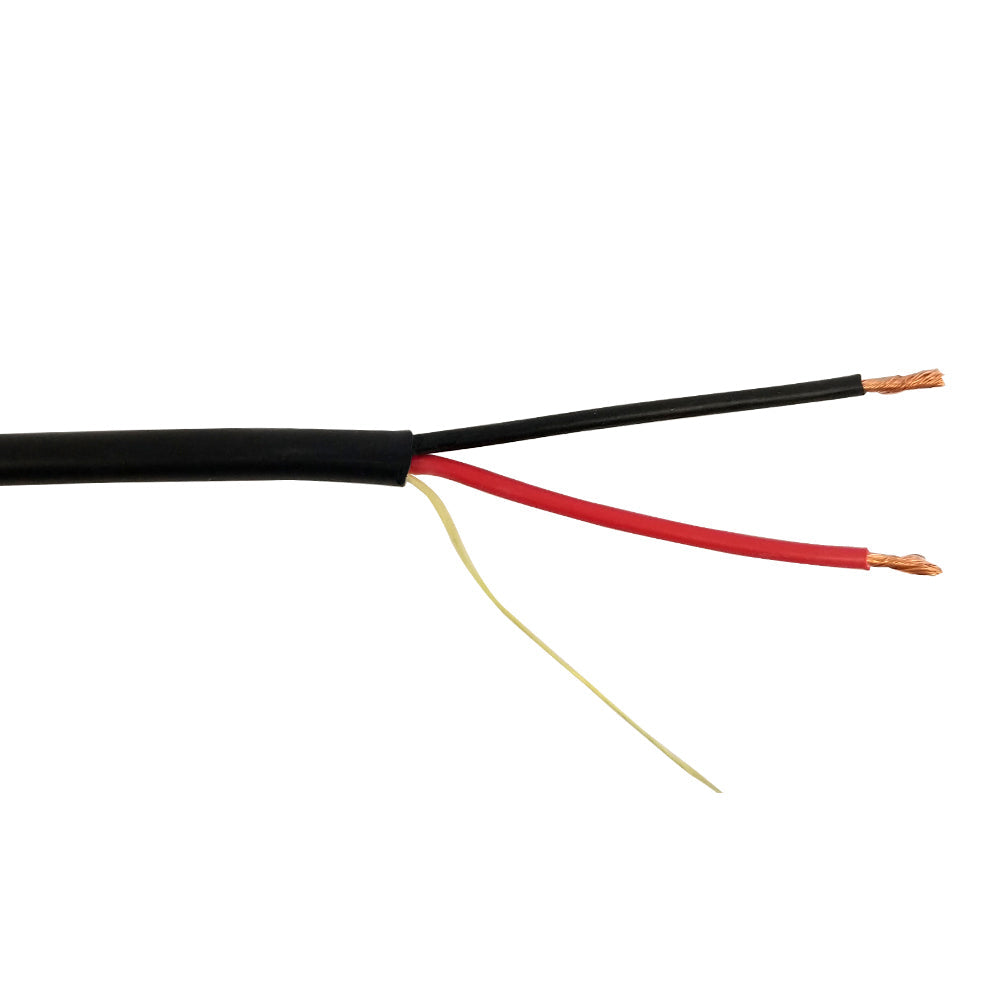

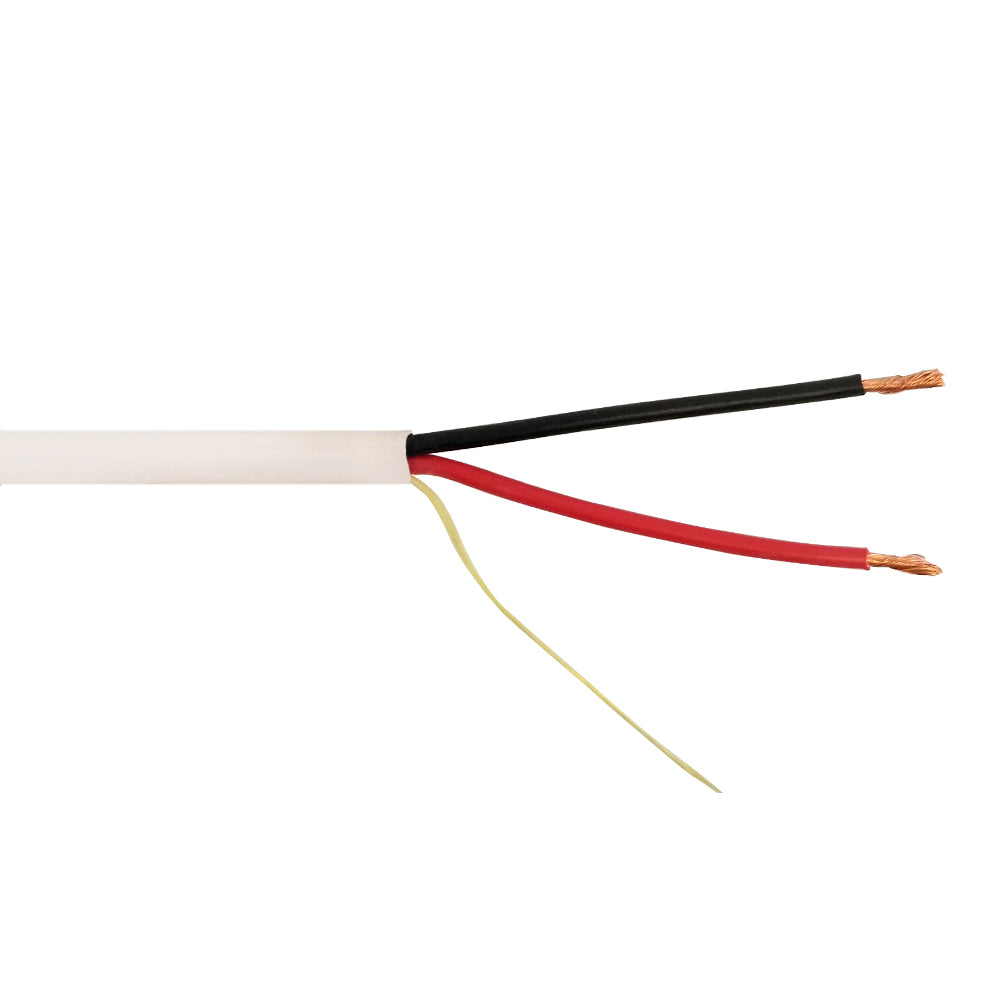

This bulk plenum rated speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run in plenum air spaces and used to connect speakers to amplifiers.Ā
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black / White |
| Cable Diameter | 5.1 mm |
| Number of Conductors | 2 Conductor |
| Wire Gauge | 16AWG |
| Conductor Material | 100% Bare OFC (Oxygen Free Copper) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP/FT6 [Plenum Rated] |
| Diameter over Dielectric | 0.0788Ā±0.004 inches [2.0Ā±0.10mm] |
| Nominal Jacket Thickness | 0.018 inches [0.46mm] |
| Minimum Spot | 0.014 inches [0.36mm] |
| DCR Conductor | 4.42 Ohms/1000 FT 14.5 Ohms/Km (Nom) |
| Cable Shielding | None |
| Temperature Rating | -20ā ~ 80ā |
| Max Voltage Rating |
300V |
| Approvals | |
| c(UL)us |
Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 15.43 lbs |
Spec Sheets
Product Weight
Black
BK-SPE622-BK
15.43 lb
BK-SPE622-BK
15.43 lb
White
BK-SPE622-WH
15.43 lb
BK-SPE622-WH
15.43 lb
