Description
Overview

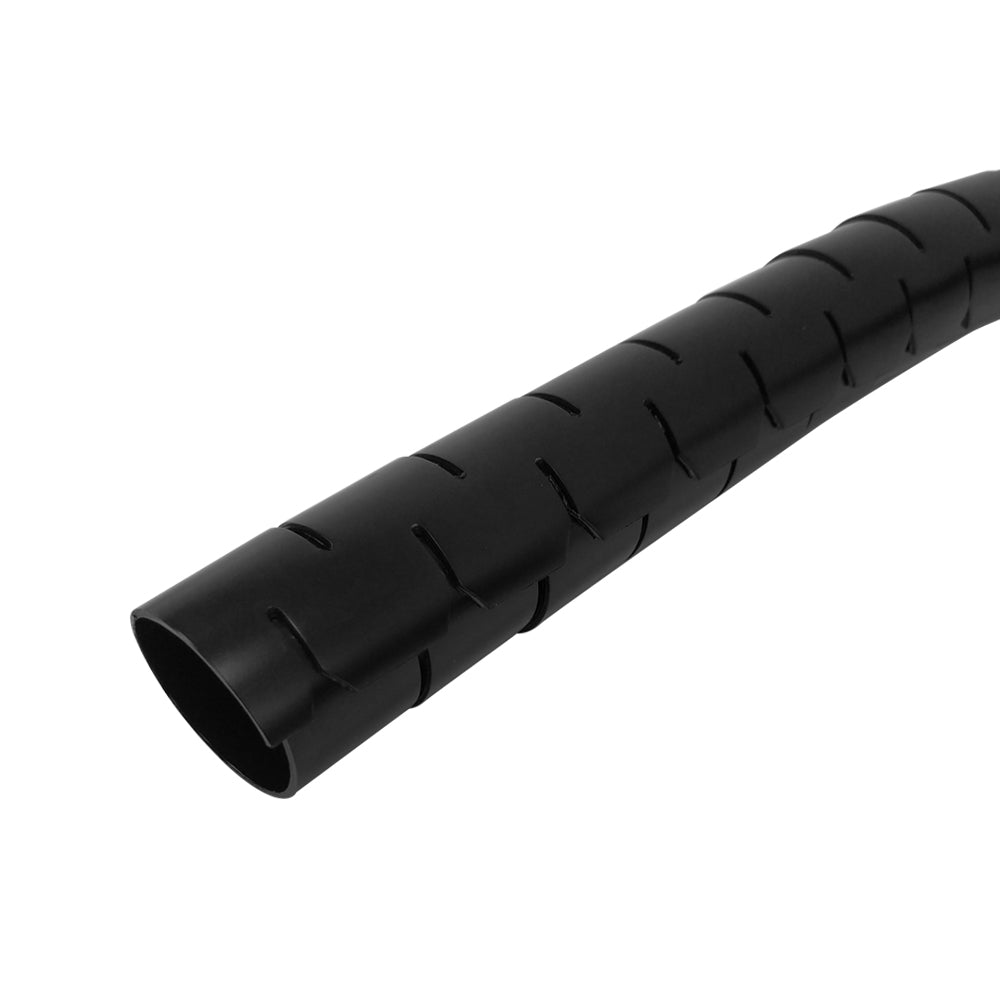

This split spiral wrap permits flexible routing of cable harnesses while forming a neat, protective bundle. With the use of the insertion tool, the wrap easily bundles cables and allows lead-outs at any point. It is made of polyethylene which is designed for general indoor use with good resistance to ordinary solvents and abrasion.
Application
Specifications
| Physical Characteristics | ||
|---|---|---|
| Length | 5 meters [16.4 foot] | |
| Width | 3/4 inch | |
| Outer Diameter | 20.9mm [0.82 inch] | |
| Inner Diameter | 20.0mm [0.79 inch] | |
| Max. Bundle Diameter | 22mm [0.86 inch] | |
| Material | Polyethylene | |
| Compatible Tools | ||
|
TL-SWS-750 |
Split Spiral Wrap Insertion Tool for 3/4" Wrap |
|
| Environmental | ||
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 1.10 lbs [0.49kg] | |
Video
Spec Sheets
Product Weights
| SKU | Weight | |
| SW-S750-15BK | 0.75 lb |
