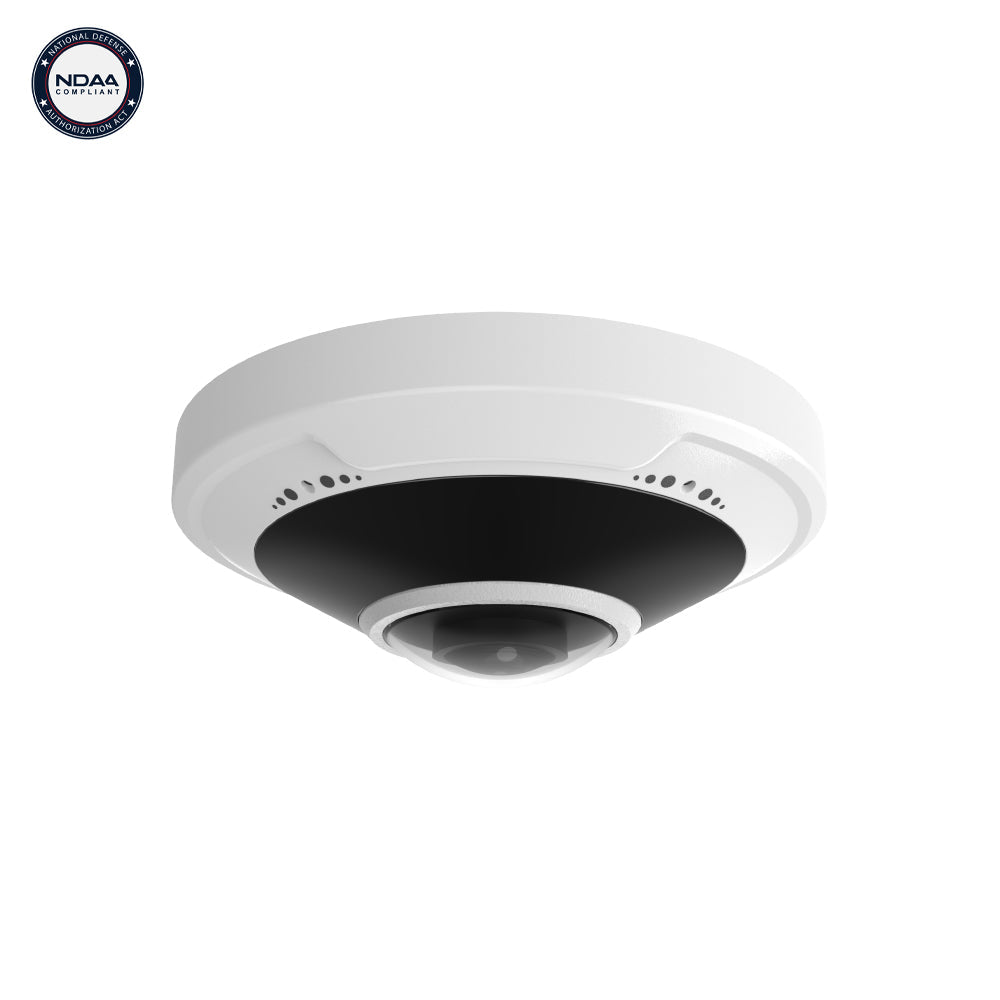

5MP Fisheye IP Camera - 1.4mm Fixed Lens - WDR - Microphone - IP66 IK10 Rated - White

Phantom IP Cameras & RecordersSKU: SC-8153FW-I-F14

Price:
Sale price$574.26 USD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.

Description

Overview

This 5MP fisheye IP based camera provides sharp, high definition images in daylight or nighttime settings. The camera has a 1.4mm fixed lens. Its maximum resolution is 2592 x 1944 at 30 fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. It offers a 33ft (10m) IR range which provides well lit images in low light conditions. It also features motion detection, audio detection and a tampering alarm.

Features

  • High quality image with 5MP, 1/2.8"CMOS sensor
  • 5MP (2592*1944):@ 30/25fps;
  • Ultra 265, H.265, H.264, MJPEG
  • 120dB true WDR technology enables clear image in strong light scene
  • Built-in 2 microphones supports the detection of sounds over longer distances
  • Alarm:1 in/1 out, Audio: 1 in/1 out
  • Smart IR, up to 10m (33ft) IR distance
  • Supports 256Gb Micro SD card
  • IK10 vandal resistant
  • IP66 protection
  • Supports PoE power supply

Application

The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

NVR Setup



Standalone Camera Setup

Specifications

Camera
Image Sensor 1/2.8" (5 MP) progressive scan CMOS
Minimum Illumination Color: 0.01 lux @ (F2.0, AGC on)
0 Lux with IR
Day/Night IR-cut filter for day & night function
Shutter Auto/Manual, Shutter Time 1 ~ 1/100000s
S/N >55dB
WDR 120dB
Lens
Lens Type 1.4mm @ F2.0
Angle of View 360┬░
DORI
DORI Distance 1.4mm Lens, 31.5m Detect, 12.6m Observe, 6.3m Recognize, 3.2m Identify
Illuminator
IR Range Up to 10m (33ft) IR Range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 5MP (2592*1944): Max.30fps;
Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Settings Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browse
Digital Noise Reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Flip Vertical/Flip Horizontal/180┬░
Dewarping N/A
HLC N/A
BLC Supported
Defog Digital Defog
Events
Statistical Analysis Heat Map
Basic Detection Motion detection, Tampering alarm, Audio Detection
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-Way Audio Supported
Suppression Supported
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Live View Display
Mount Type Support table, wall, and ceiling
Decoding Mode Support software decoding
Display Mode 11 display modes in total
Software decoding:
Ceiling mount: fisheye view, 360┬░Panoramic+1PTZ, 180┬░Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360┬░Panoramic+6PTZ, Fisheye+8PTZ
Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ
Table mount: fisheye view, 360┬░Panoramic+1PTZ, 180┬░Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360┬░Panoramic+6PTZ, Fisheye+8PTZ
Interface
Audio I/O Input: impedance 35 k╬ę; amplitude 2 V [p-p]
Output: impedance 600 ╬ę; amplitude 2 V [p-p]
Alarm I/O 1/1
RS485 N/A
Built-In Mic Supported (2 Mics)
Built-In Speaker N/A
WIFI
N/A
Network 1 * RJ45 10M/100M Base-TX Auto-Adaptive Ethernet
Video Output N/A
Certification
EMC FCC CFR 47 Part 15
EN 55032:2015
EN 55024:2010
EN 61000-3-2:2014
EN 61000-3-3-2013
Safety IEC 62368-1
EN 62368-1
UL 62368-1
Environment CE-ROHS (2011/65/EU;(EU)2015/863);
WEEE (2012/19/EU);
REACH (Regulation (EC) No 1907/2006)
General
Power DC12V(┬▒25%), PoE+(IEEE 802.3af)
Power consumption: MAX 8.5W
Power Interface ├ś 5.5mm coaxial power plug

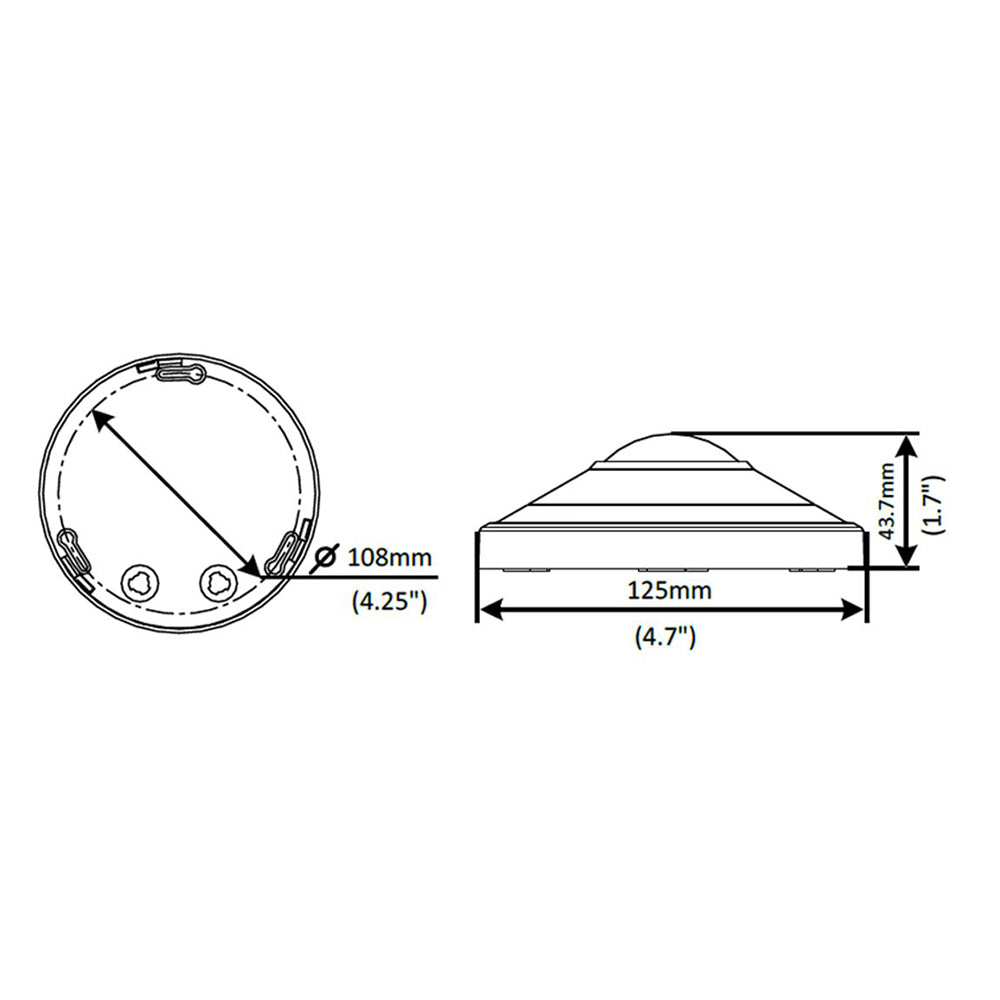

Dimensions
(├ś x H)
╬Ž125 ├Ś 43.7 mm (╬Ž4.9" ├Ś 1.7")
Weight 0.36kg (0.79lb)
Material Metal + Plastic
Working /Storage Environment -30┬░C ~ 60┬░C (-22┬░F ~ 140┬░F), Humidity: ÔÇ░┬Ą95% RH (non-condensing)
Surge Protection 4KV
Reset Button Supported

Quick Start Guide

User Manual

Phantom Camview for Android

Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

PhantomCamTools Windows app

PhantomCamStation Windows app to set up cameras

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
