Description
This bulk OM4 fiber cable is indoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments.

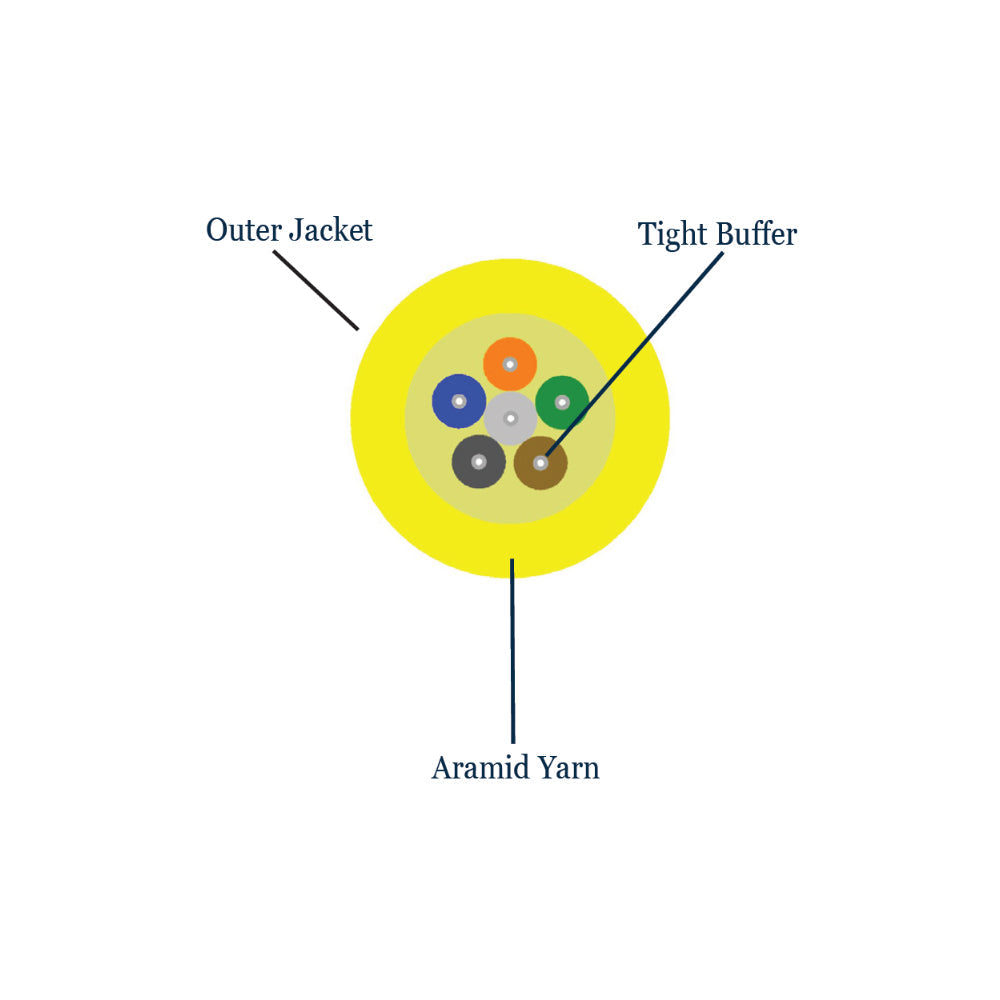

Features
- 900Āµm Tight Buffers
- Aramid yarn strength members
- Exclusive use of CorningĀ® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 50 micron Multimode Plenum Indoor Cable |
| Fiber Count | 6-Strand/12-Strand/24-Strand |
| Glass Fiber | Corning ClearCurve |
| Outer Jacket Material/Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yarn |
| Weight |
57 lbs / kmĀ (6-strand) 81 lbs/kmĀ Ā (12-strand) 138 lbs/kmĀ Ā (24-strand) |
| Nominal Outer Diameter |
4.8mm (6-strand) 5.8mm (12-strand) 7.8mm (24-strand) |
| Minimum Bend Radius, Installation |
7.2cmĀ Ā (6-strand) 8.7cmĀ Ā (12-strand) 11.7cmĀ Ā (24-strand) |
| Minimum Bend Radius, Operation |
4.8cmĀ (6-strand) 5.8cmĀ (12-strand) 7.8cmĀ Ā (24-strand) |
| Operating Temperature | 0 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Wavelength | 850 / 1300nm |
| Maximum Attenuation | 3.0 / 1.0 dB/km |
| Link Length | 550m (10Gb/s@850nm) |
| Bandwidth (EMB High Performance)[MHz.km] | 4,700 @850 |
| Certification(s) | |
| UL | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.10 lbsĀ |
Spec Sheets
Product Weight
6-strand
BK-F6CP-OM4-P-T
0.07 lb
BK-F6CP-OM4-P-T
0.07 lb
12-strand
BK-F12CP-OM4-P-T
0.09 lb
BK-F12CP-OM4-P-T
0.09 lb
24-strand
BK-F24CP-OM4-P-T
0.13 lb
BK-F24CP-OM4-P-T
0.13 lb
