Description
Overview

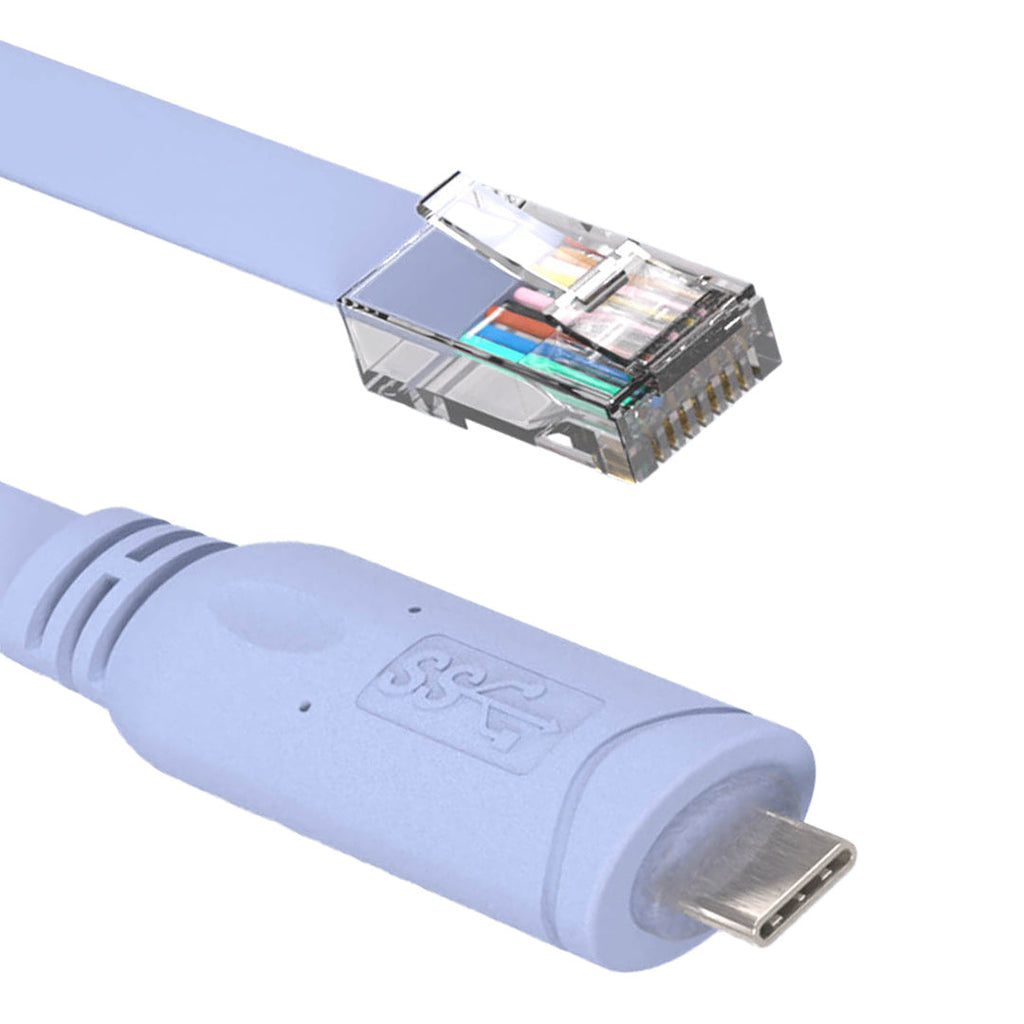

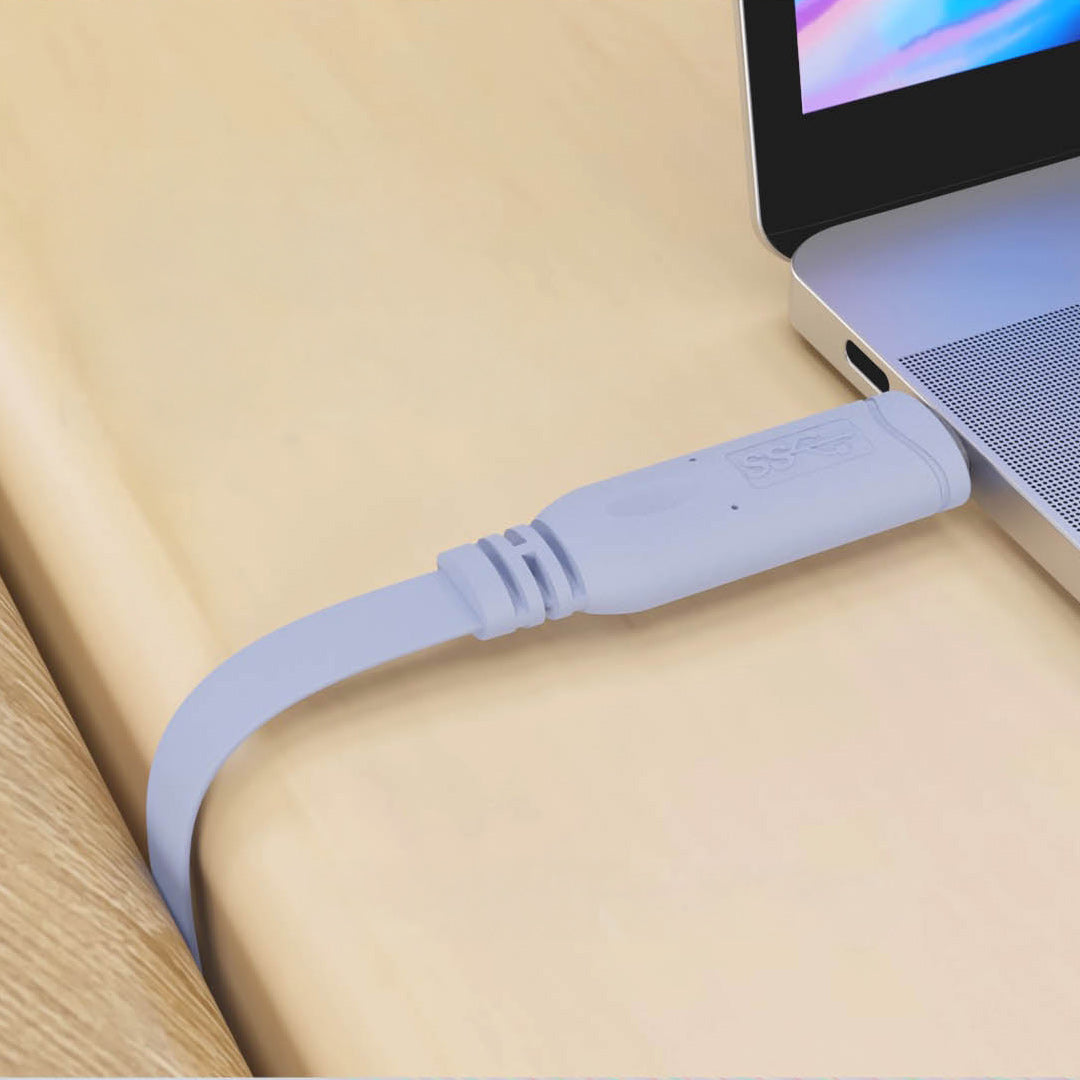

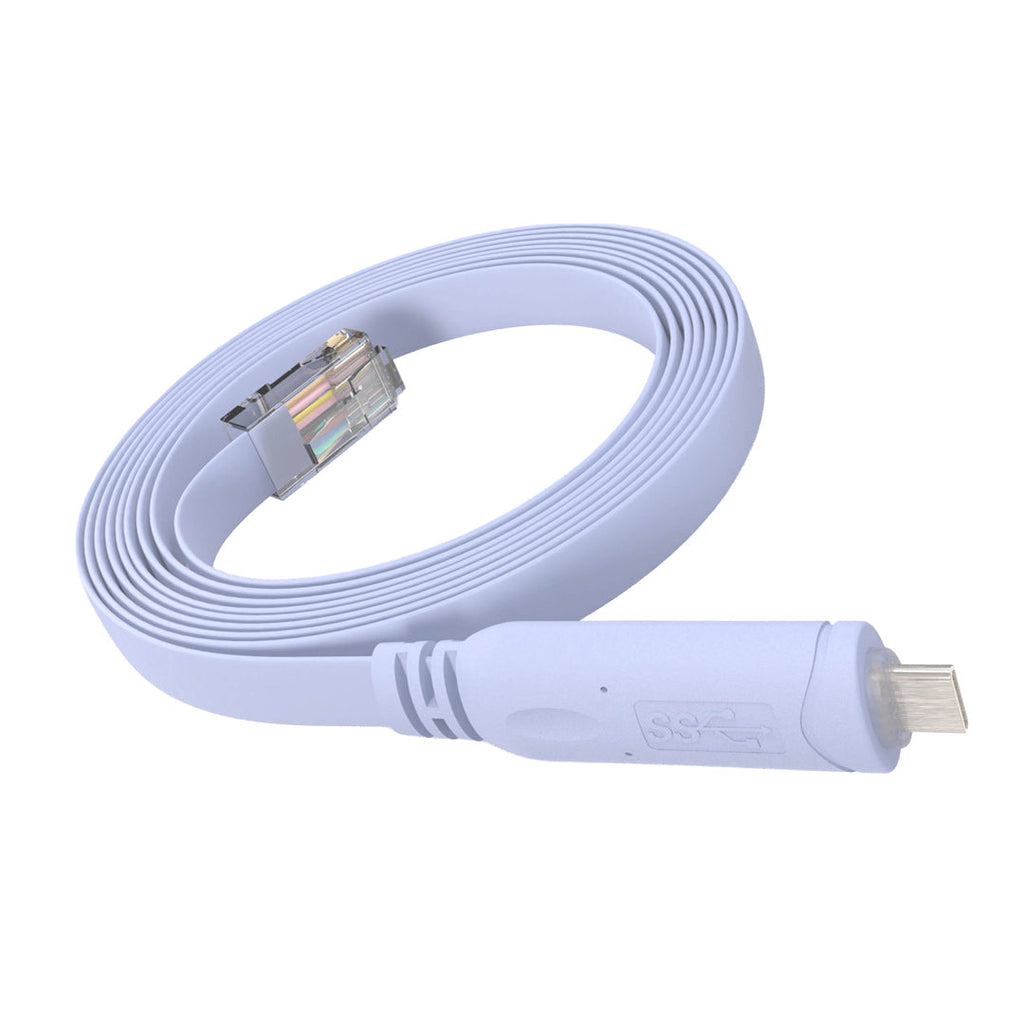

This console cable consists of a USB Type-C male on one end and RJ45 male connector on the other. It is commonly used to connect the laptop to a routers console port of network hardware for initial configuration, command-line interface (CLI) management, or troubleshooting.
Features
- Flat Jacket
- Conductive impedance less than 3 ohm
- Insulation impedance greater than 2M ohm
- Gold-plated contact
- PCB with FT232+ZT213 Chip
- Data rates of USB2.0, 480Mbps.
- Voltage at 300V
- 100% tested short circuit, open circuit, and break
- 100% functional tested
- All materials RoHS complied
| Physical Characteristics | |
|---|---|
| Color | Light Blue |
| Jacket Material | 45 PVC, 94V-1 Molded |
| Temperature Rating | -20 ~ 80℃ |
| Wire Gauge | 28 AWG * 8C, Bare Copper |
| Chip Set | PCB with FT232+ZT213 Chip |
| USB Connector | LDPE Molded |
| Compatibility | |
| Operating Systems |
Windows 7 and later releases are driver free MAC OS Linux |
| Connectors | |
| Connector A | USB Type-C Male |
| Connector B | RJ45 8P8C Male |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
