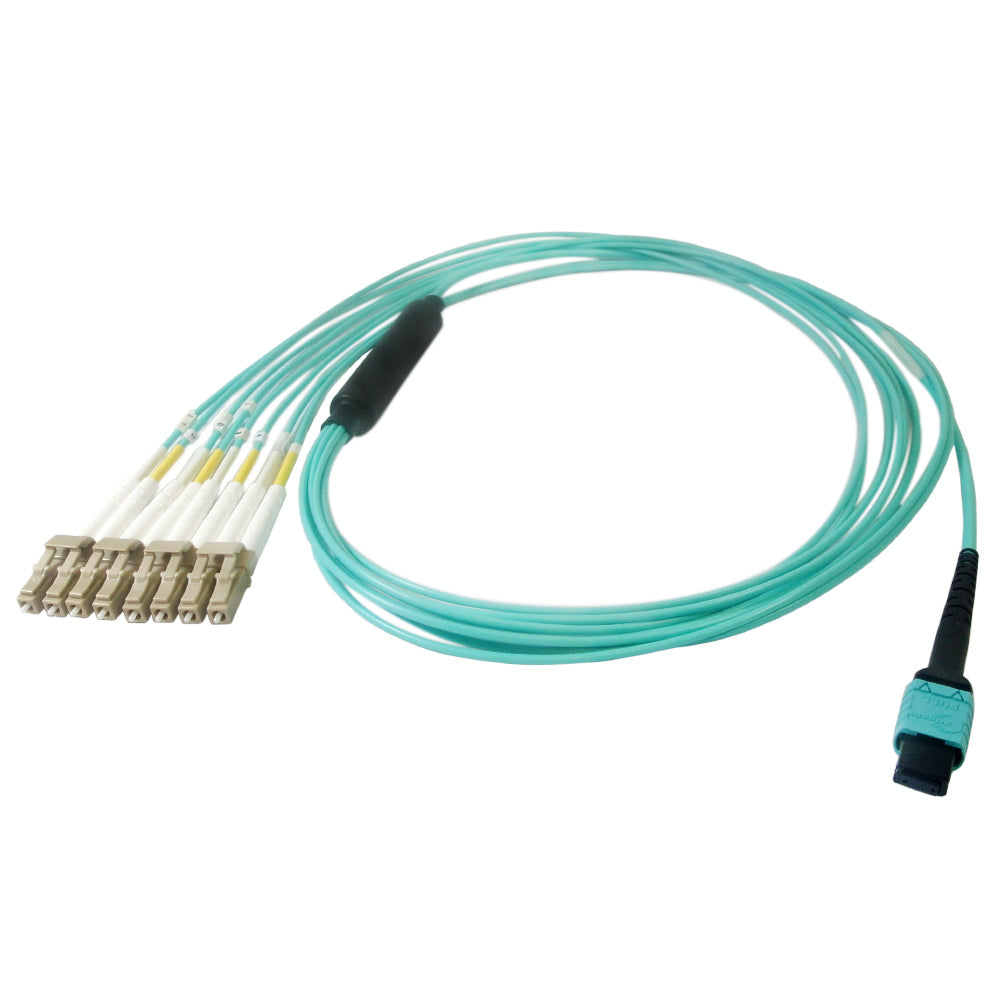

8-Fiber Multimode OM3 12-Position MPO Female no guide pins to 8x LC/UPC clipped in pairs - OFNP Plenum


Length: 1m
Price:
Sale price$39.19 USD
Stock:
In stock

Description

This multimode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 4 duplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.Ā

Physical Characteristics
Breakout Length 24 inches
Color Aqua
Cable Diameter 3mm
Fiber Count 8 Fibers
Fiber Type Multimode 50/125 Micron OM3
Glass Manufacturer Corning Glass ClearCurve OM3
Jacket Rating Plenum (OFNP)
Temperature RangeĀ  0 ā€“ 60Ā°C
Connector(s)
Connector A 1 - 12-Position MPO Female (no guide pins) Elite Connectors
Connector B 4 - LC Duplex Male
Performance
MPO Insertion Loss ā‰¤0.35 dB
MPO Return Loss ā‰„20db
LC Insertion Loss ā‰¤0.3 dB
LC Return Loss ā‰„20 dB
Testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Yes
UL UL Listed Cable
Packaging Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 30ft - 10m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m
0.14 lbs 0.16 lbs 0.18 lbs 0.22 lbs 0.26 lbs 0.35 lbs 0.43 lbs 0.53 lbs 0.66 lbs 0.74 lbs
SKU Options Weight
FO-1313-03P 1m 0.07 lb
FO-1313-06P 2m 0.1 lb
FO-1313-10P 3m 0.15 lb
FO-1313-15P 5m 0.2 lb
FO-1313-23P 7m 0.24 lb
FO-1313-33P 10m 0.33 lb
FO-1313-50P 15m 0.5 lb
FO-1313-65P 20m 0.63 lb
FO-1313-80P 25m 0.77 lb
FO-1313-100P 30m 0.95 lb
