8MP Dome IP Camera - 2.8mm Fixed Lens - 30m IR Range - Outdoor IP67 Rated

OEM IP Cameras & RecordersSKU: CA-NC328-TD-2WH

Size: 2.8mm Lens
Color: White
Price:
Sale price$276.92 USD

Contact sales to place an order, 1-866-207-6442 or sales@infinitecables.com.

Description

Overview

This 8MP outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 102° horizontal field of view. Its maximum resolution is 3840 x 2160 at 15 fps and supportsH.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using an IR cut filter and IR LEDs.

Features

  • 1/2.5" Progressive Scan CMOS
  • H.265+/H.265/H.264+/H.264/MJPEG
  • Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
  • 12.5/15fps(3840x2160), 20fps(3072x1728),25fps/30fps (2560x1440, 1920x1080, 1280x720)
  • VCA functions
  • 3 streams
  • 3D DNR
  • BLC/HLC
  • ICR
  • EXIR, up to 30m
  • WDR (Wide Dynamic Range)
  • DC12V&PoE
  • Built-in micro SD/SDHC/SDXC slot
  • Guarding Vision APP

Application

Specifications

Camera
Image Sensor 1/2.5" (8 MP) progressive scan CMOS
Minimum Illumination Color: 0.028 Lux @ (f/2.0, AGC on)
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Auto-Iris No
Day /Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120dB
Angle Adjustment (Bracket) Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Lens
Focal Length 2.8 mm, 6 mm
Aperture F2.0
Focus Manual
FOV 2.8mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124°
6mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59°
Lens Mount M12
IR
IR Range Up to 100 ft (30 m)
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265+/H.265/H.264+/H.264/MJPEG
H.264 Type Main profile/high profile
H.264+ Main stream support
H.265 Type Main profile
H.265+ Main stream support
Video Bit Rate 32 Kbps to 16 Mbps
Smart Features
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest One fixed region for main stream and sub-stream
Maximum Resolution 3840 x 2160
Main Stream 15 fps (3840 x 2160), 20fps (3072 x 1728), 30 fps (2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping No
Day/Night Switch Day/night/auto/schedule
Network
Network Storage Supports microSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS),and ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User / Host Up to 32 users; three levels: administrator, operator, and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface 1-port RJ-45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes
General
Operating Conditions -22° F to 140° F (-30° C to 60° C); humidity: 95% or less (non-condensing)

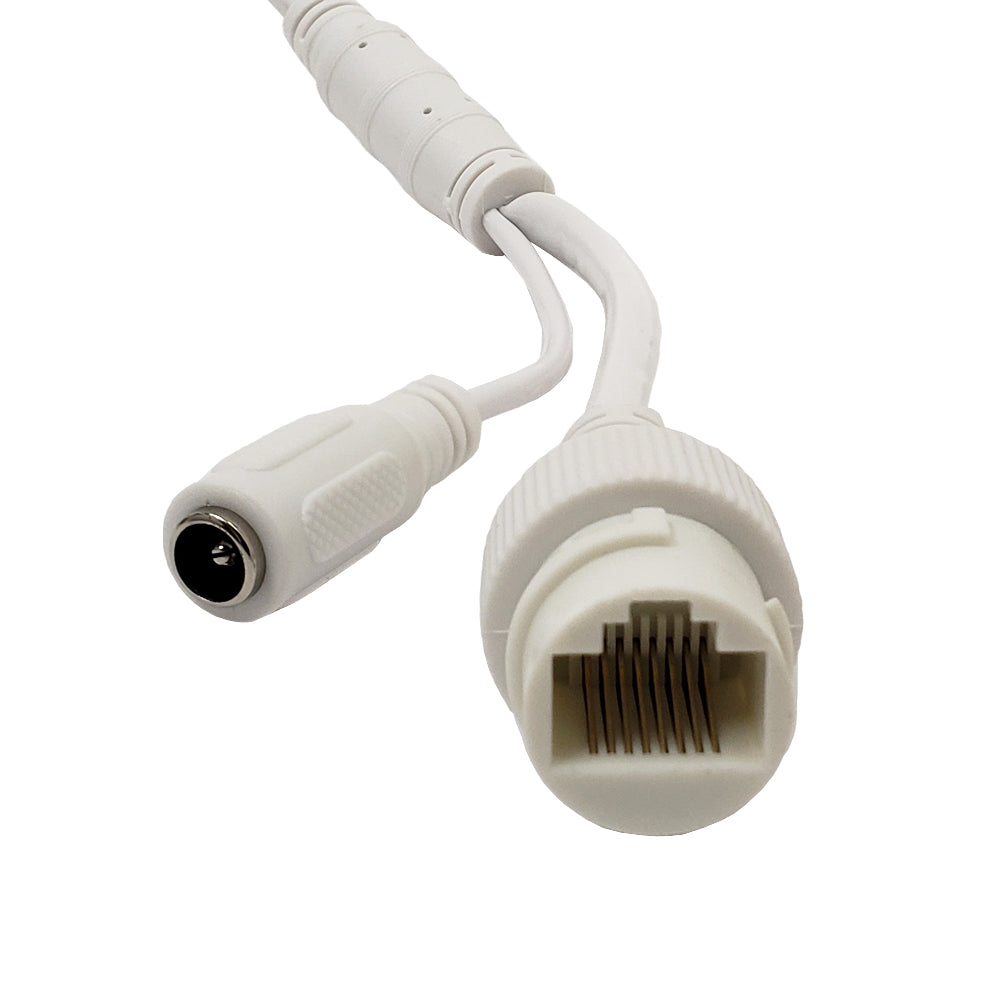

Power Supply 12 VDC ± 25%, ⌀ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.6 A, maximum: 7.5 W; PoE: (802.3af, 37 V to 57 V), 0.3 A to 0.2 A, maximum: 9 W
Protection Level IP67, IK10
Material Body: metal, bubble: plastic

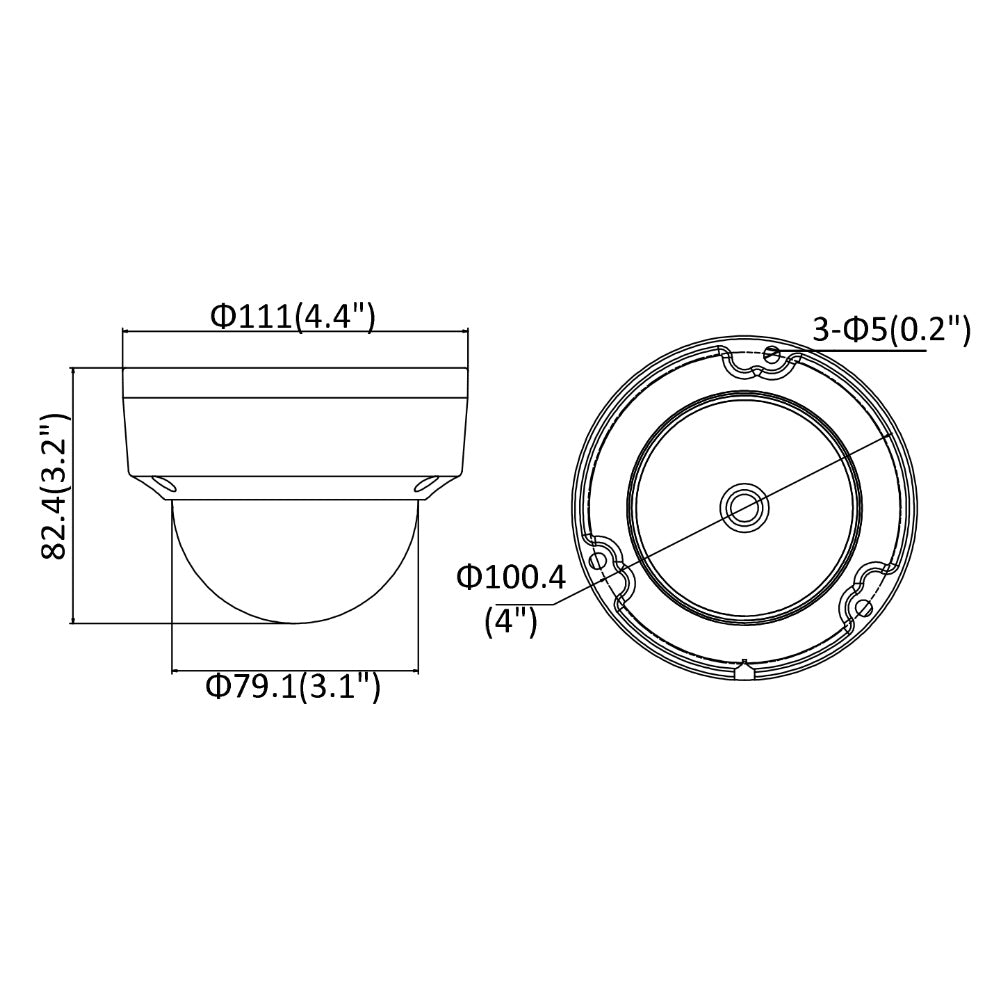

Dimensions Camera: ⌀ 4.4" x 3.2" (⌀ 111 x 82.4 mm)
Weight Camera: 1.10 lbs (500 g)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Quick Start Guide
Data Sheet
RJ45 pin out diagram


Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11

Guarding vision Android app
Supports Android 4.1 and up

Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)

SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information
