Overview

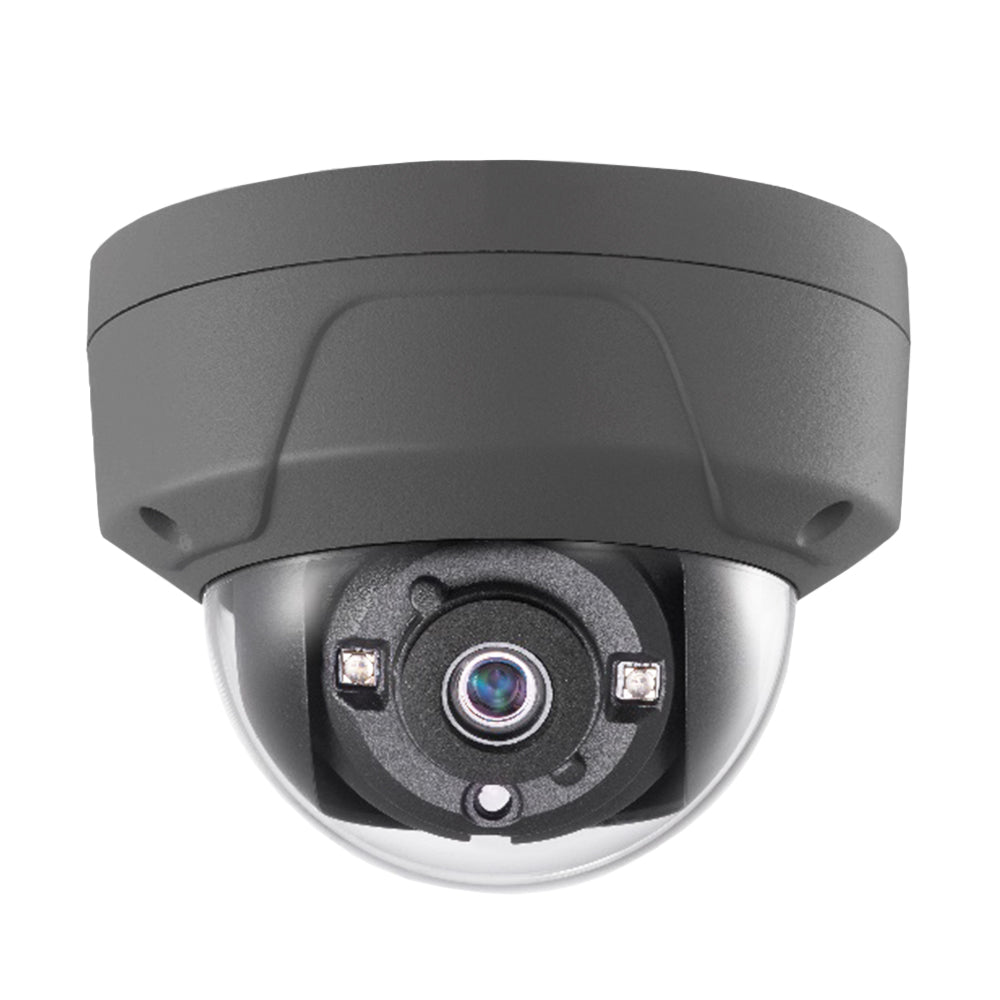

This 8MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera comes with 2.8mm or 3.6mm fixed lens which delivers 102.2° or 79° horizontal field of view respectively. Its maximum resolution is 3840 x 2160p at 15 fps. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use.
Features
- 8 Megapixel high-performance CMOS
- Smart IR, up to 30 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP67 outdoor rated, IK10 rated
- DWDR
- 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- 12 VDC
- Up the Coax (UTC-C)
- 2.8mm/3.6mm Lens
Application
Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.
Specifications
| Camera | |
|---|---|
| Image Sensor | 2 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) x 1080 (V) |
| Minimum Illumination | 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Slow Shutter | Maximum 16 times |
| Lens | 2.8mm |
| Horizontal Field of View |
102.25° |
| Day & Night | ICR |
| Lens Mount | Φ14 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Synchronization | Internal synchronization |
| S/N Ratio | >62 dB |
| Menu | |
| AGC | Low/middle/high |
| DWDR | Yes |
| Day and Night Mode | Smart/color/BW(Black and White) |
| White Balance | Auto/Manual |
| Backlight Compensation | Yes |
| Language | English |
| Functions | Digital noise reduction, Mirror |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 15% |
| Power Consumption | Max. 4 W |
| Ingress Protection | IP67 |
| Material | Plastic |
| IR Range | Up to 65 ft (20 m) |

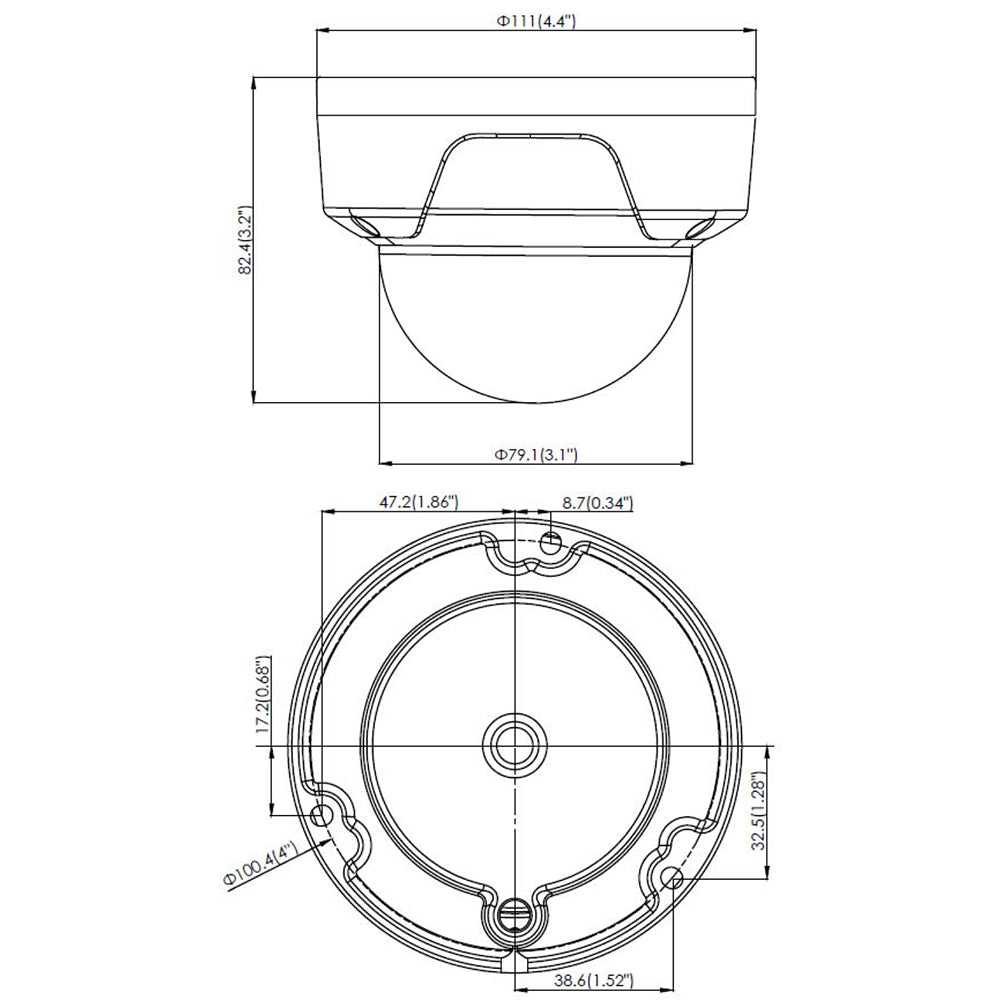

| Dimensions | ⌀ 4.33" x 3.67" (⌀ 110 mm x 93.2 mm) |
| Weight | Approximately 1.21 lbs (550 g) |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-RG59P | BNC Male Crimp Connector for RG59 Plenum Cable |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| CA-AC318-OD-2GY | 2.8mm Lens / Grey | 0.77 lb |
| CA-AC318-OD-3WH | 3.6mm Lens / White | 0.77 lb |
