Description

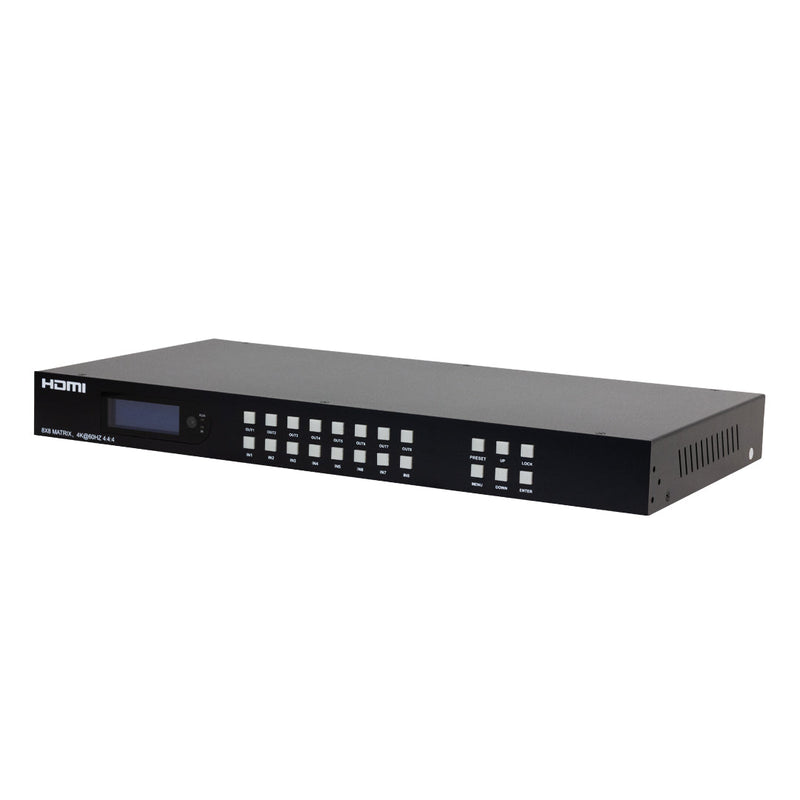

This 8x8 HDMI matrix switch enables you to connect up to eight HDMI sources to up to eight HDMI displays. Any one of the eight inputs can be displayed on any one of the eight outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0ā ~ 40ā |
| Storage Temperature | -10ā ~ 60ā |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Input Voltage | 125 VAC |
| Power Supply (Transmitter) | 12VDC 3A |
| Power Consumption | 28W Max. |
| Connector(s) | |

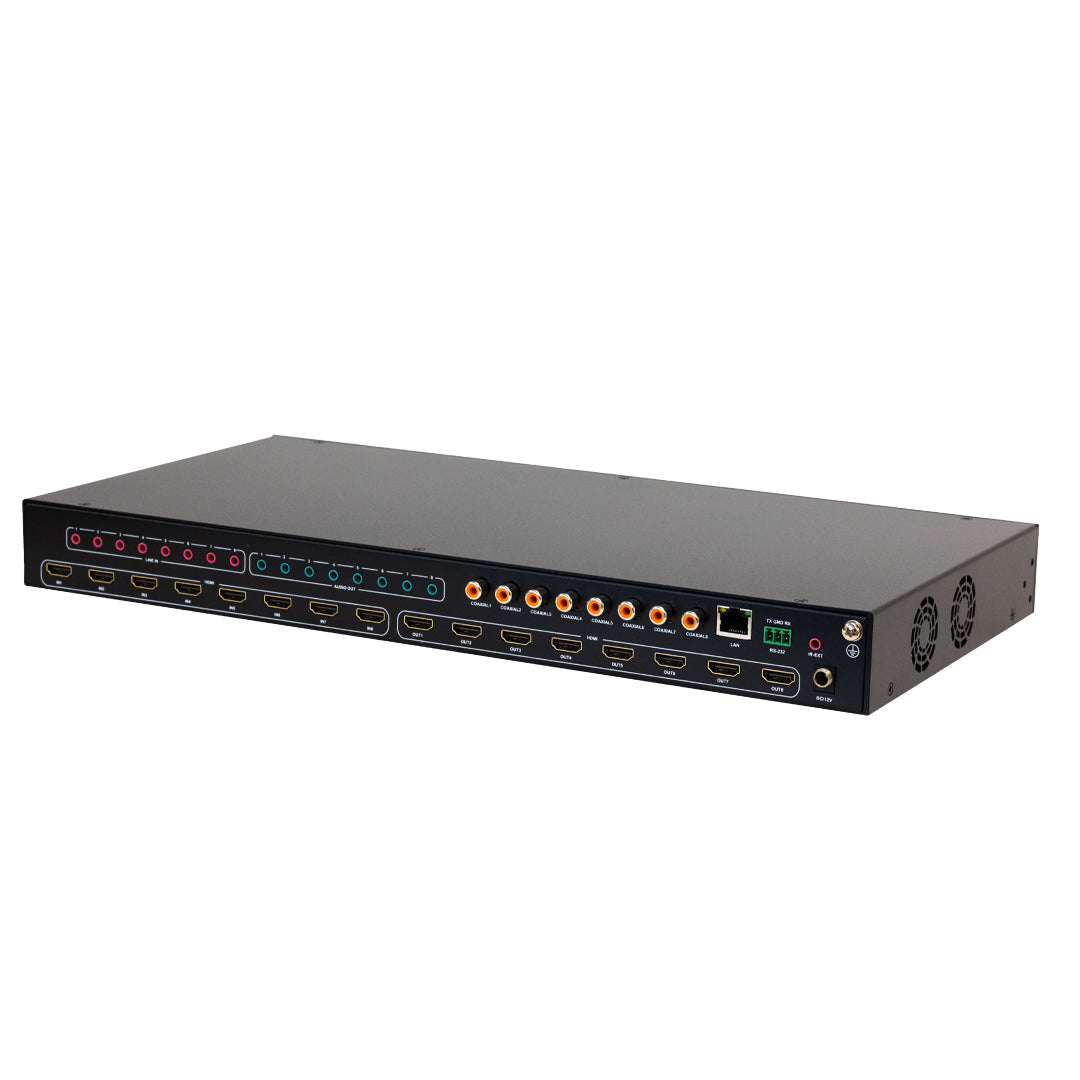

| Input | 8 x HDMI Female, 8 x 3.5mm Stereo Jack |
| Output | 8 x HDMI Female, 8 x SPDIF, 8 x 3.5mm Stereo Jack |
| RS-232 Serial Port | DB9 Female |
| Ethernet Port (IP Control) | RJ45 Female |
| IR Ext Port | 1 x 3.5mm Stereo Jack |
| Performance | |
| Video | 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0,4K@ 60hz YUV4:4:4 |
| Audio | LPCM2.0-5.1/16-24BIT/32-192KHZ, Dolby Atmos and DTS-X |
| HDMI Version | HDMI 2.0 (4K@60Hz YUV4:4:4) |
| Bandwidth | 18 Gbps |
| HDCP Version | HDCP2.2/1.4 Compliant |
| IR Control | Compliant |
| 3D Compliant | Compliant |
| Other Features |
Support HDR10, HLG, Dolby Vision Support EDID management, CEC and ARC |
| Factory Default Information | |
| Login Credentials | IP Address : 192.168.1.168 Default Username : admin Default Password : 123456 |
| RS-232 Baud Rate | 115200 |
| Approvals | |
| Power Adapter | c(UL)us |
| Power Cable | c(ETL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 6.20 lbs [2.81 kg] |
| Contents | |

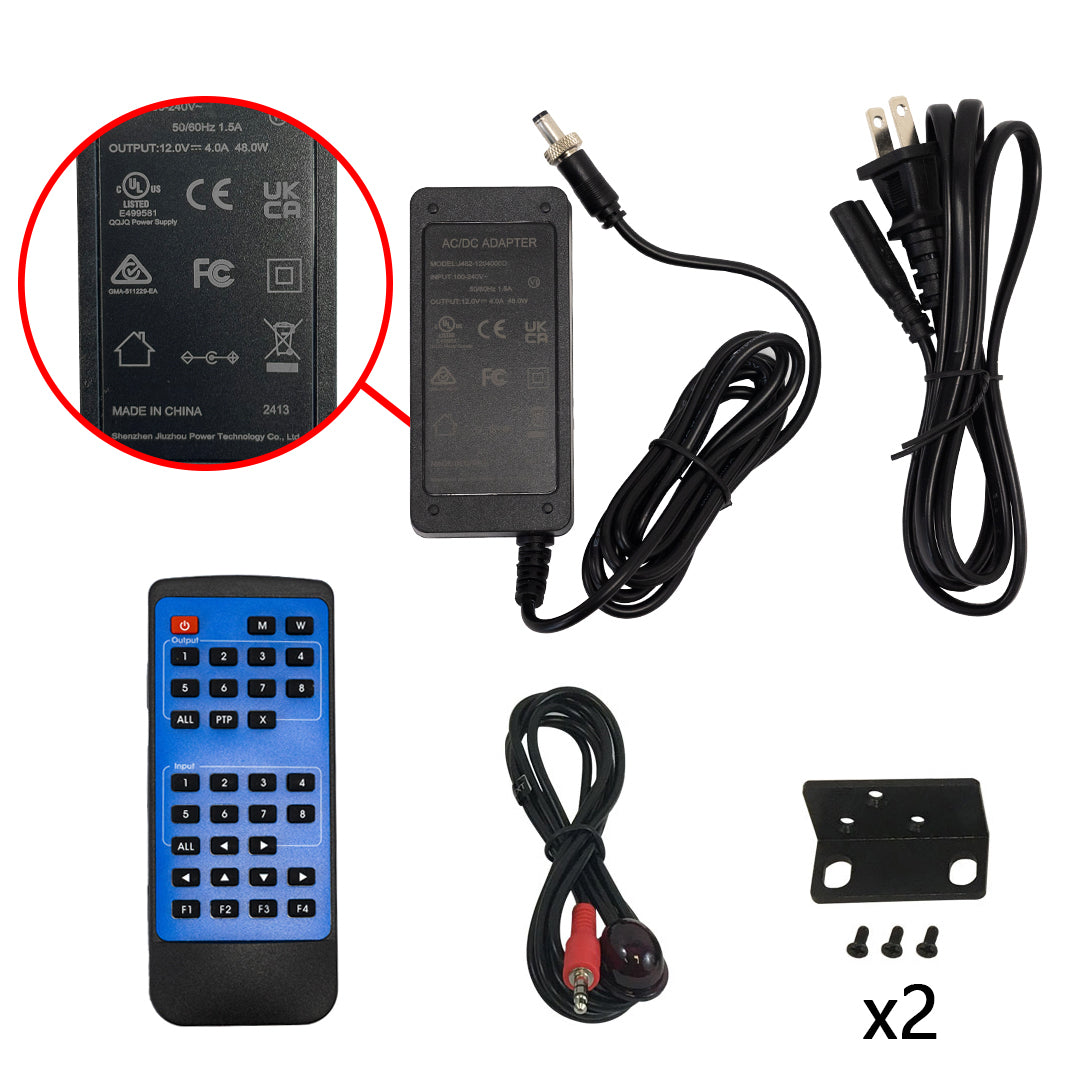

| Included in Package | 1 - HDMI Matrix |
| 1 - IR Ext RX Cable | |
| 1 - DC12V 3A Power Supply | |
| 1 - Remote Control | |
| 1 - Mounting Kit | |
| 1 - CD for Control Software & Manual | |
Downloads
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| VM-HDMI-207 | 6.2 lb |
