Overview

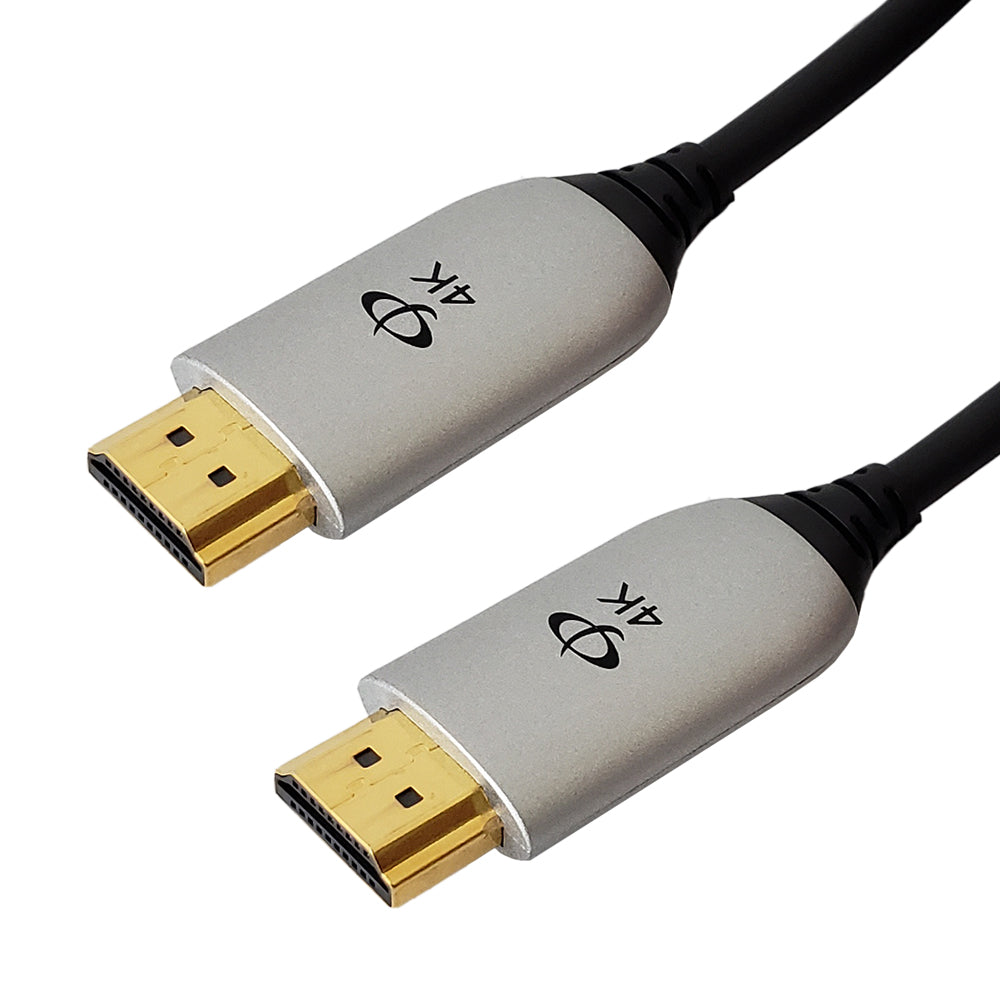

This active optical High-Speed HDMIĀ® cable consists of a HDMI male connector on both ends. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 4K Ultra HD resolution and High Dynamic Range (HDR), and works with splitters, switches and other video sharing devices.
This active optical HDMIĀ® cable is directional, each connector has a marking to indicate whether it should be connected to the source or the display. Always test the connection before installing the cable within a wall.
 |
Extend HDMI Signals Over Optical CableThese cables are constructed from both copper and optical fiber, they feature a built-in booster chipset ideal for maintaining 4K Ultra HD resolution and ensure a full 18Gpbs bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length cables, making them easier to install in walls or run around tight corners. The fiber reduces the risk of EMI/RFI so performance is stable when used in high interference environments.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Gold |
| Shell Material | Zinc-Alloy |
| Cable Specs | Fiber Optic 50/125um multimode / Copper |
| Cable Diameter | 4.8mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Bend Radius | 48mm |
| Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
| Performance | |
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz |
| Active Chipset Technology | Silicon SL82817/SL82827 |
| Chroma Sampling | 4:4:4 |
| Bandwidth | 18Gbps |
| Video | HDR, Deep Color (48-bit) and 3D Compatible |
| Audio | 32 Channel Audio with ARC |
| Support | CEC, EDID, and HDCP |
| Built in Ethernet Channel | Yes |
| HDCP 2.2 Compliant | Yes |
| HDMI Version | HDMI 2.0 |
| Approvals | |
| CE | Yes |
| FCC | Yes |
| CPR | Yes |
| ATC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Years Warranty |
| 25ft | 35ft | 50ft | 75ft | 100ft | 150ft | 200ft | 300ft |
|---|---|---|---|---|---|---|---|
| 1.00 lbs (0.45 kg) | 1.25 lbs (0.56 kg) | 1.53 lbs (0.69 kg) | 2.48 lbs (1.12 kg) | 2.94 lbs (1.33 kg) | 4.07 lbs (1.84 kg) | 4.99 lbs (2.26 kg) | 7.00 lbs (3.18 kg) |
| SKU | Options | Weight |
| HDMI-230-35N | 35ft | 1.1 lb |
| HDMI-230-50N | 50ft | 1.55 lb |
| HDMI-230-75N | 75ft | 2.26 lb |
| HDMI-230-100N | 100ft | 3.0 lb |
| HDMI-230-150N | 150ft | 6.2 lb |
| HDMI-230-200N | 200ft | 7.28 lb |
| HDMI-230-300N | 300ft | 15.0 lb |
