Description

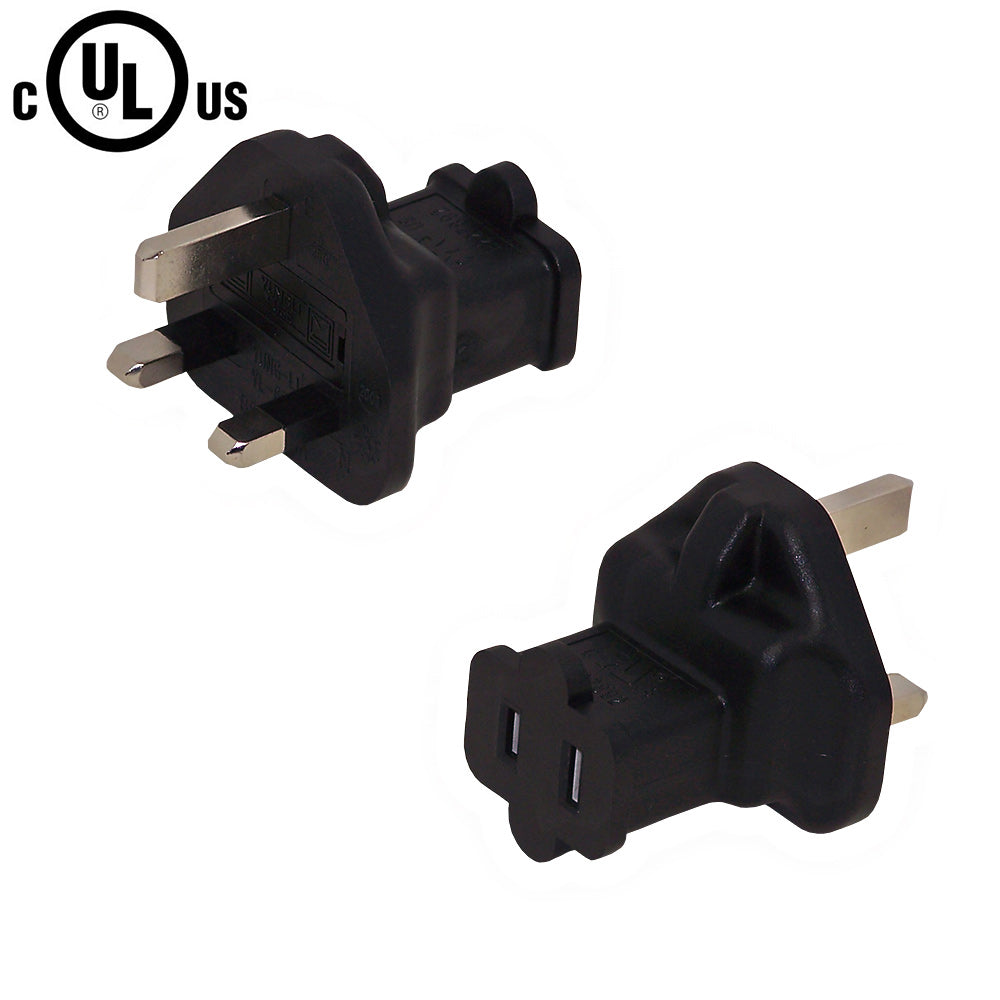

This adapter consists of BS1363 (UK) plug on one end and a 1-15R receptacle on the other. It is primarily used to adapt or convert an existing power cable.
| Physical Characteristics | |
|---|---|
| Connector Plating | Nickel |
| Color | Black |
| Electrical Rating | Up to 5A at 250V |
| Insulation Resistance | 100Mā¦ |
| Dielectric Voltage | 2000V/sec |
| Connectors | |
| Connector A | BS1363 (UK) Plug |
| Connector B | 1-15R Receptacle |
| Approvals | |
| UL | Yes |
| RoHS | Yes |
| Reach | Yes |
| ISO | ISO14001:2015, ISO9001:2015 |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.15 lbs [0.07 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| PW-AD061 | 0.15 lb |
