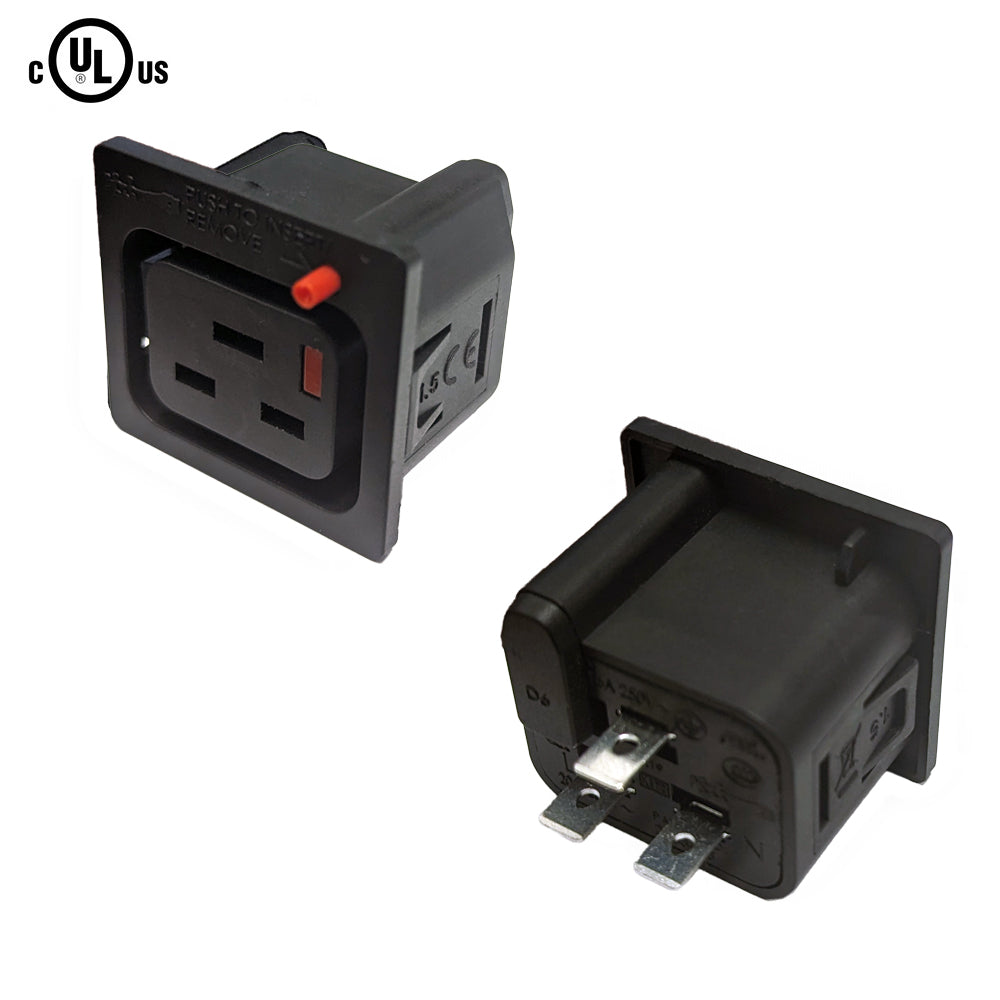

This power outlet has a locking female C19 connector on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C20 power cable to the locking C19 power outlet. Compatible with any C20 cable.
Physical Characteristics
|
Connection Type
|
Snap-in Mounting From Front
|
Color
|
Black
|
Material (Body)
|
Thermoplastic UL94V-0
|
Connector Plating
|
Nickel
|
Rating
|
16A/250VAC
|
Insulation Resistance
|
10M (500VDC, 1Min.)
|
Dielectric Strength
|
2KV (50Hz 1 Min) to Accessible Surfaces
|
Panel Mount
|
Yes
|
Panel Thickness
|
Black & White IEC320 Snap-in 1mm or 1.5mm
|
Solder/QC Dimensions
|
6.3 x 0.8mm
|
Manufacturing Information |
IEC-Lock Part # |
PA195015BK1 |
Connectors
|
C19
|
Female
|
Solder/Quick Connect
|
Male
|
Approvals
|
Certification
|
c(UL)us
|
Packaging Information
|
Package Quantity
|
1
|
Product Weight
|
0.05 lbs [0.02kg]
|
