Description

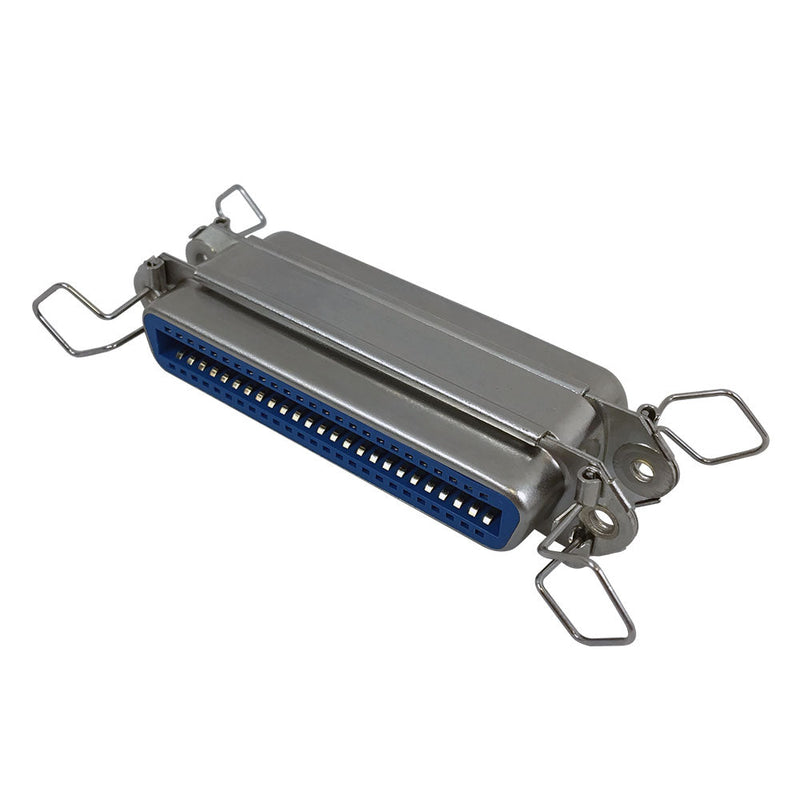

This adapter consists of a C50 female on one end and a C50 female on the other. It is primarily used to convert a C50 male cable to a C50 female cable.
| Physical Characteristics | |
|---|---|
| Connector Plating | Nickel |
| Contact Plating | Gold Plated Over Nickel |
| Insulator | PBT Glass Fiber Reinforced UL94 VO |
| Shell | Nickel Silver |
| Pin Assignment | Straight Through |
| Body Style | Slimline |
| Temperature | -25Ā°C ~ +105Ā°C |
| Dielectric Strength | 500V AC for One Minute |
| Insulator Resistance | 500M Ohm min. at 500V DC |
| Current Rating | 3 AMP |
| Connectors | |
| Connector A | C50 Female |
| Connector B | C50 Female |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.10 lbs [0.05 kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| AD-C50-2SL | 0.1 lb |
