This cable gland has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Physical Characteristics |
Color |
Black |
Material |
Nylon 66 |
Thread |
M16xP1.5 |
Mounting Hole |
16.0 ~ 16.3 mm[0.63 ~ 0.64 inches] |
Cable Range |
5 ~ 10 mm[0.20 ~ 0.39 inches] |

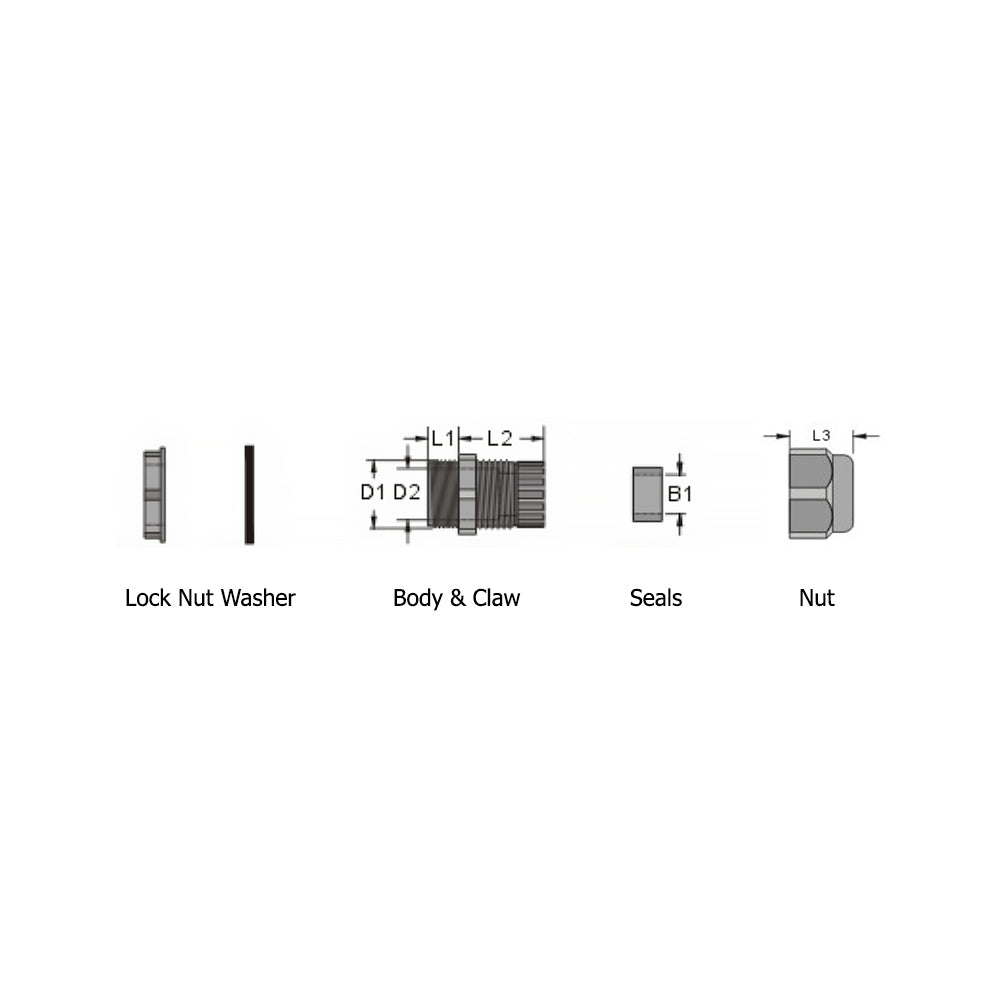

Dimensions |
D1 |
D2 |
B1 |
L1 |
L2 |
L3 |
16.0mm |
10.7mm |
10.1mm |
8.2mm |
23.3mm |
16.1mm |
0.63in |
0.42in |
0.40in |
0.32in |
0.92in |
0.63in |
|
IP68 Rated |
Yes |
Approvals |
RoHS |
Yes |
Packaging Information |
Package Quantity |
1 |
Product Weight |
0.2 lbs [0.09kg] |
