Description

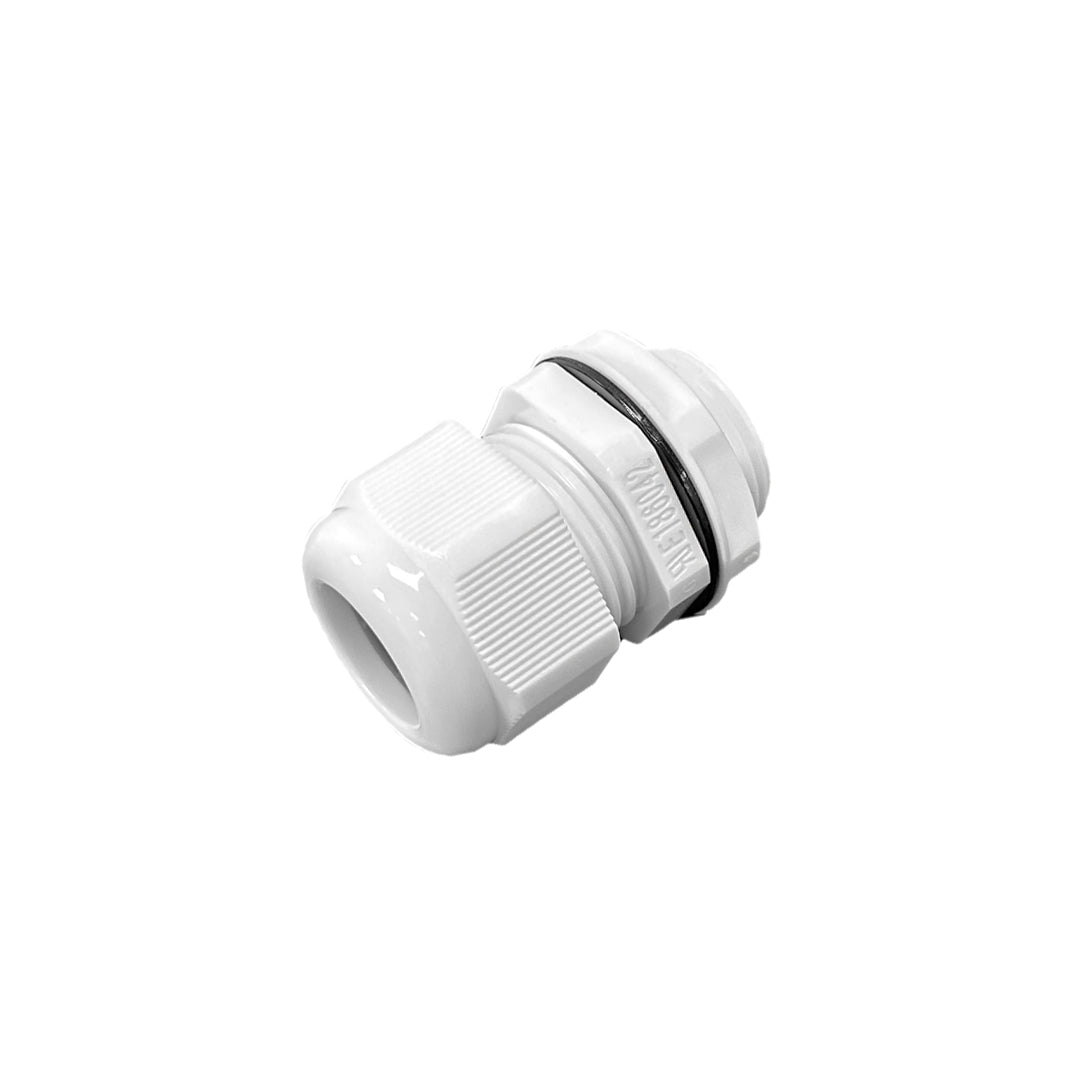

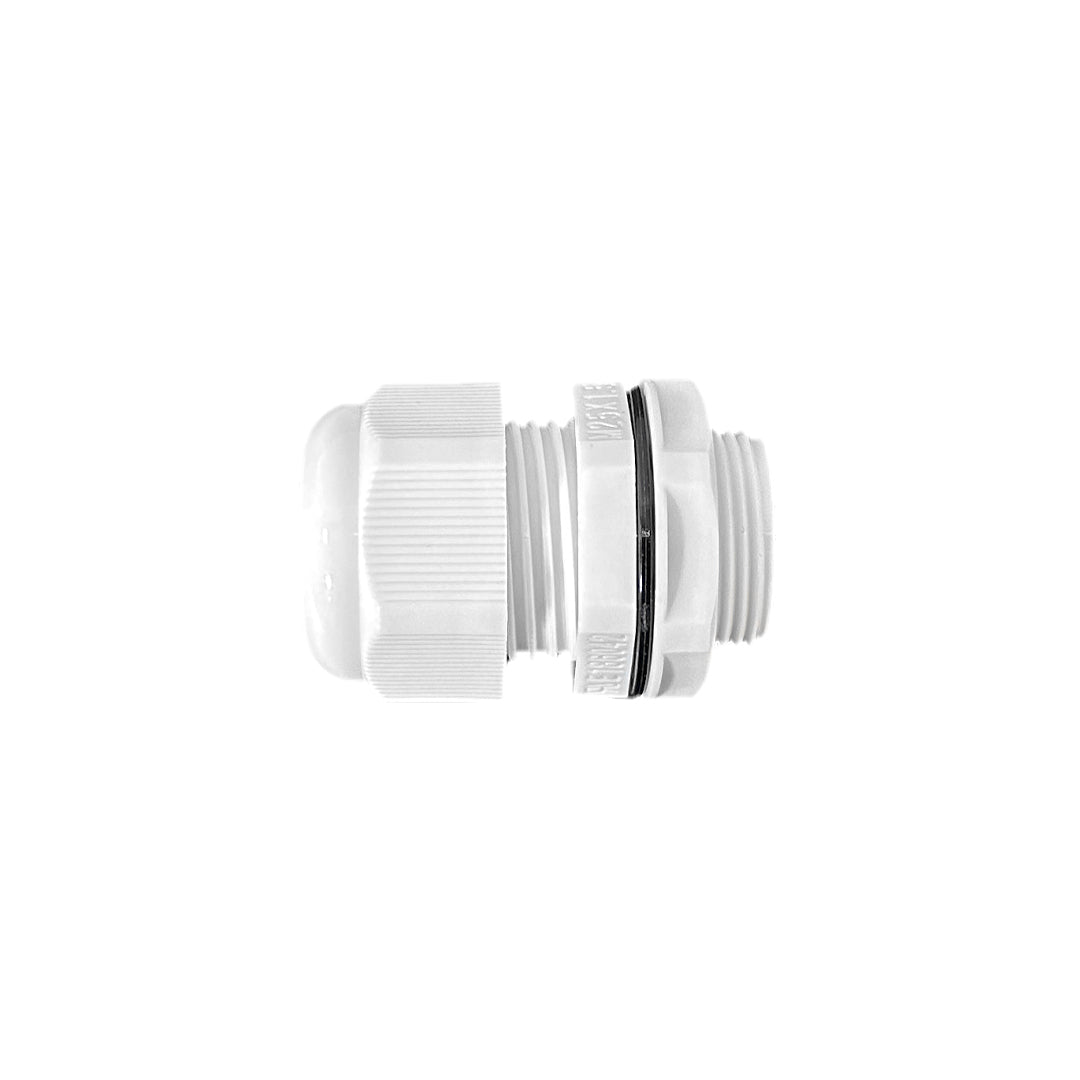

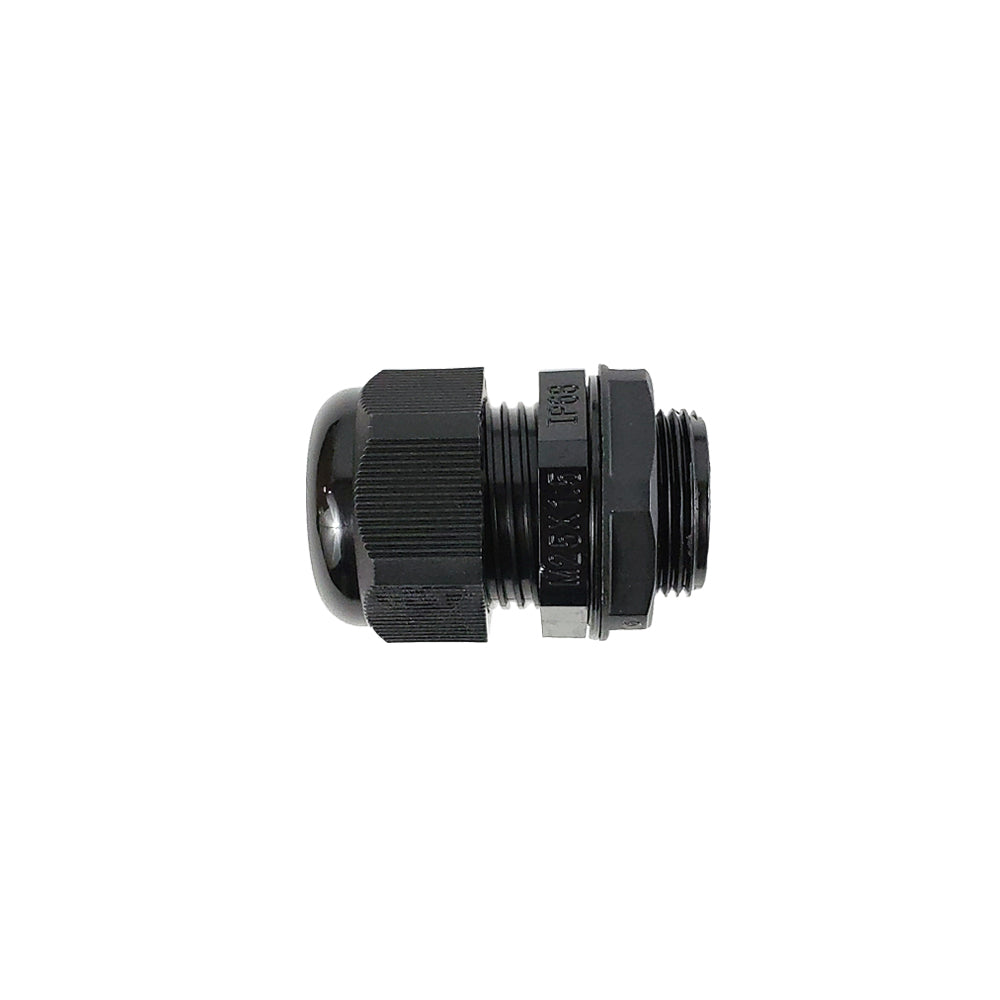

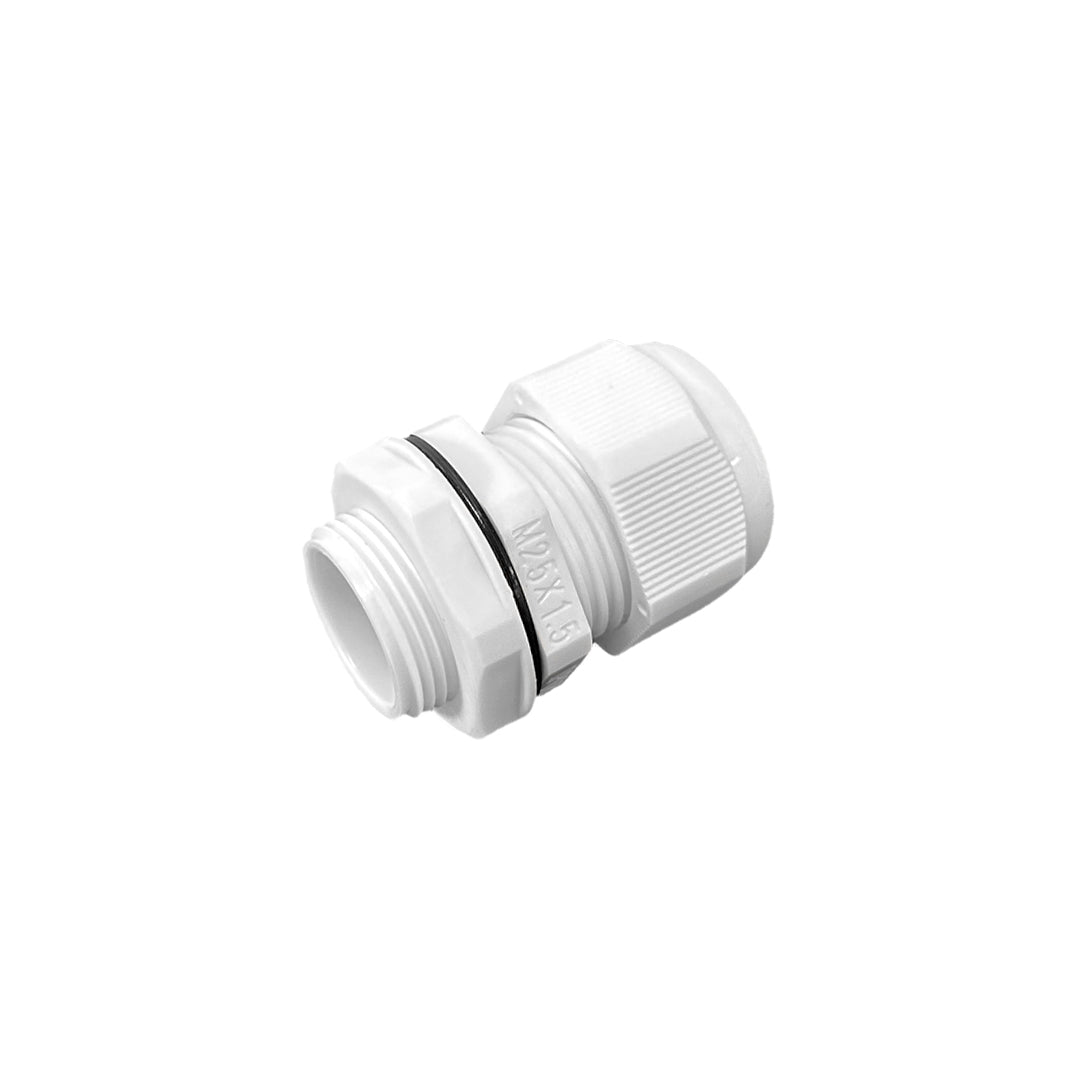

This cable gland has a metric thread pattern of M25xP1.5 and accommodates a cable size of 13 to 18mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
| Physical Characteristics | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black/White | ||||||||||||||||||
| Material | Nylon 66 | ||||||||||||||||||
| Thread | M25xP1.5 | ||||||||||||||||||
| Mounting Hole | 25.0 ~ 25.4 mm[0.98 ~ 1.00 inches] | ||||||||||||||||||
| Cable Range | 13 ~ 18 mm[0.51 ~ 0.71 inches] | ||||||||||||||||||
|

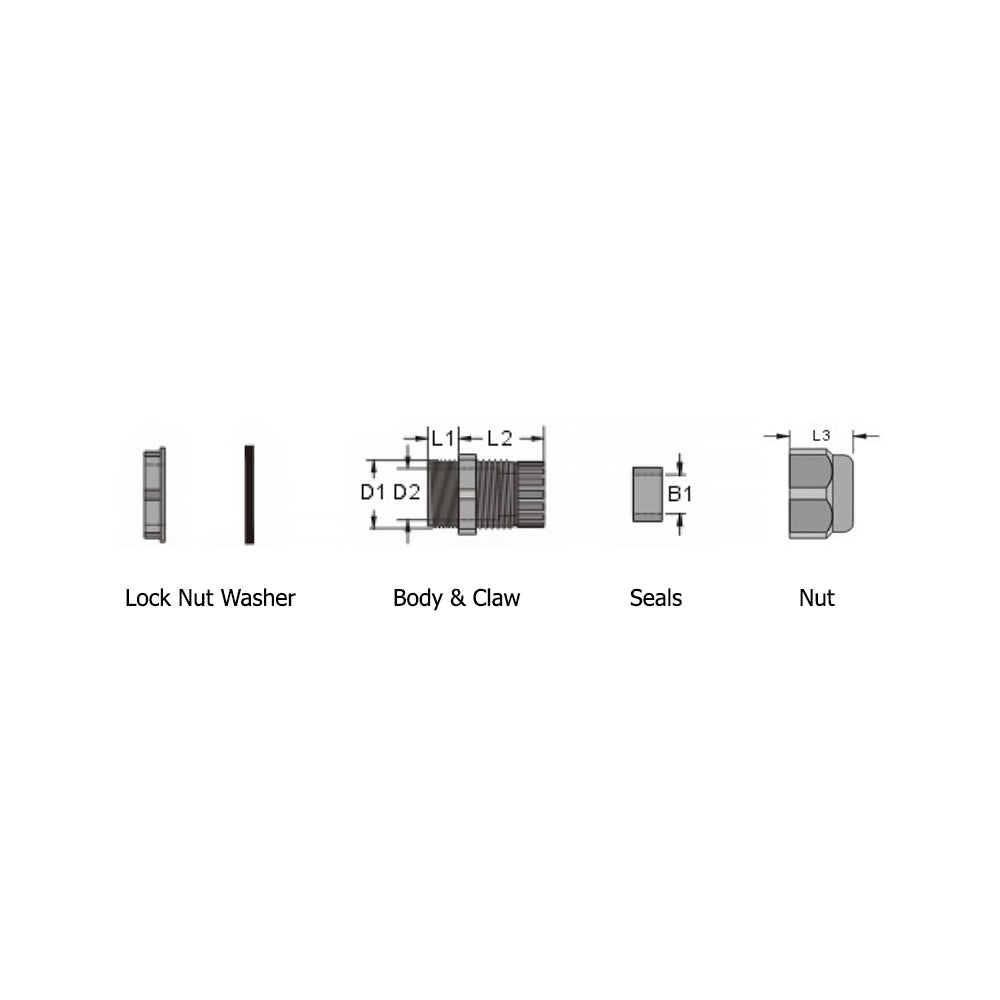

Dimensions (mm) |
|
||||||||||||||||||
| Flammability Rating | UL94V-2 | ||||||||||||||||||
| IP68 Rated | Yes | ||||||||||||||||||
| Approvals | |||||||||||||||||||
| UL | Yes | ||||||||||||||||||
| RoHS | Yes | ||||||||||||||||||
| Packaging Information | |||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||
| Product Weight | 0.2 lbs [0.09kg] | ||||||||||||||||||
Spec Sheets
Product Weights
| SKU | Options | Weight |
| CG-M25-L | Black | 0.2 lb |
| CG-M25WH-L | White | 0.2 lb |
