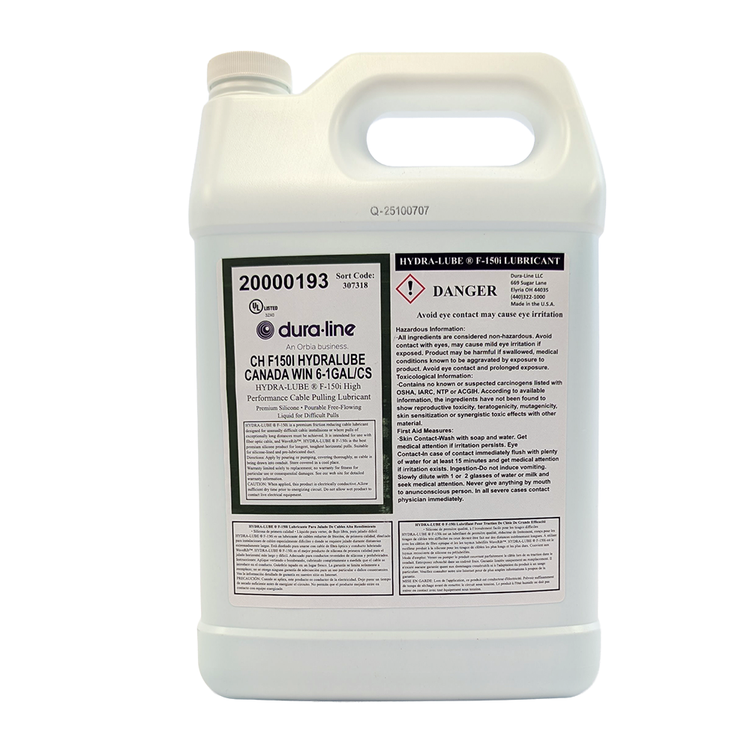

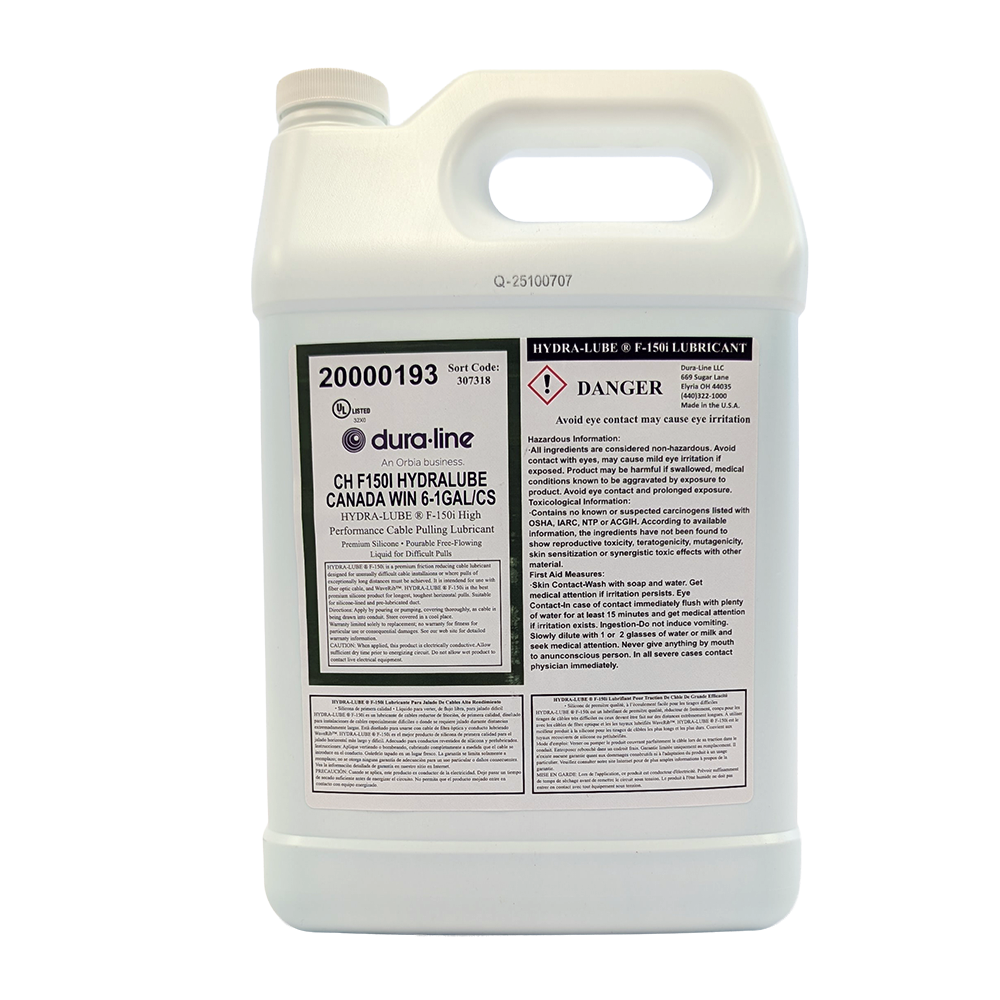

This cable lubricant incorporates new lubricant technology to create a high-performance, water-based pourable lubricant formulated for many difficult applications, including extremely long pulls with multiple bends. It is designed to meet or exceed all cable pulling requirements with respect to viscosity, cling, drag, wetting, operational temperature range and reduction of pulling tension.
Features
- New technology for increased friction reduction; Will not be displaced by cables
- Silicone modified for maximum friction reduction properties
- Especially effective for placement of fiber optic, coaxial and other communications cables
- Highly effective for placing high-voltage power cables
- Can be poured or pumped
- Compatible with all types of cable jackets
- Slow drying, leaves a lubricating, non-adhesive film
- UL listed
|
Physical Characteristics
|
| Amount per bottle |
1 Gallon |
| Appearance |
Opaque, cream colored, pourable liquid |
| Brookfield Viscosity (100 rpm) |
1350 cPs (25˚C) |
| Density |
Approximately 8.4 pounds per gallon |
| Percent Non-Volatile Solids |
5.0 to 5.5% |
| Temperature Stability |
Freeze/Thaw (10 cycles) Excellent, no phase separation
Higher Temperature (7 days @ 122˚F) Excellent, no phase separation |
| pH |
7.5 - 8.0 |
| Toxicity |
Non-Toxic and Non-Sensitizing |
| Temperature Use Range |
-20°F to 140°F (-28C to 60°C)
|
| Flammability |
ASTM D93 (PMCC) - Product has no flash point, residue has no significant flammability |
| Compatibility with Cable Jackets |
IEEE/ICC P1210 |
| Lubricity |
(150 lb/ft sidewall load @ 65 fpm pulling speed)
coefficient of kinetic friction < 0.075 |
|
Certifications
|
| UL |
Compliant |
|
Packaging Information
|
| Packaging Quantity |
1 gallon bottle |
| Product Weight |
8.66 lbs |
