Overview
This Cat6 shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). These cables are Fluke® Cat6 patch cable certified and come with an individual test report. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Double Shielded100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT6 patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 6mm |
| Wire Gauge | 26AWG Stranded |
| Shielding | F/FTP (Foil Shield on Individual Pairs plus Overall Foil Shield) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Molding | Assembled Tab Style Strain Relief |
| Temperature Rating | 75°C |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Shielded Long Body Male |
| Connector B | RJ45 Shielded Long Body Male |
| Performance | |
| Fluke® CAT6 Patch Cable Test | Yes, with Test Report |
| Approvals | |
| c(UL)us | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 5ft | 7ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.03 lbs | 0.06 lbs | 0.09 lbs | 0.15 lbs | 0.25 lbs | 0.30 lbs | 0.45 lbs | 0.75 lbs | 1.05 lbs | 1.50 lbs | 2.25 lbs | 3.00 lbs |
| SKU | Options | Weight |
| CAT6SM-01BK | 1ft / Black | 0.07 lb |
| CAT6SM-02BK | 2ft / Black | 0.1 lb |
| CAT6SM-03BK | 3ft / Black | 0.15 lb |
| CAT6SM-05BK | 5ft / Black | 0.2 lb |
| CAT6SM-07BK | 7ft / Black | 0.24 lb |
| CAT6SM-10BK | 10ft / Black | 0.33 lb |
| CAT6SM-15BK | 15ft / Black | 0.5 lb |
| CAT6SM-25BK | 25ft / Black | 0.77 lb |
| CAT6SM-35BK | 35ft / Black | 1.1 lb |
| CAT6SM-50BK | 50ft / Black | 1.55 lb |
| CAT6SM-01BL | 1ft / Blue | 0.07 lb |
| CAT6SM-02BL | 2ft / Blue | 0.1 lb |
| CAT6SM-03BL | 3ft / Blue | 0.15 lb |
| CAT6SM-05BL | 5ft / Blue | 0.2 lb |
| CAT6SM-07BL | 7ft / Blue | 0.24 lb |
| CAT6SM-10BL | 10ft / Blue | 0.33 lb |
| CAT6SM-15BL | 15ft / Blue | 0.5 lb |
| CAT6SM-25BL | 25ft / Blue | 0.77 lb |
| CAT6SM-35BL | 35ft / Blue | 1.1 lb |
| CAT6SM-50BL | 50ft / Blue | 1.55 lb |

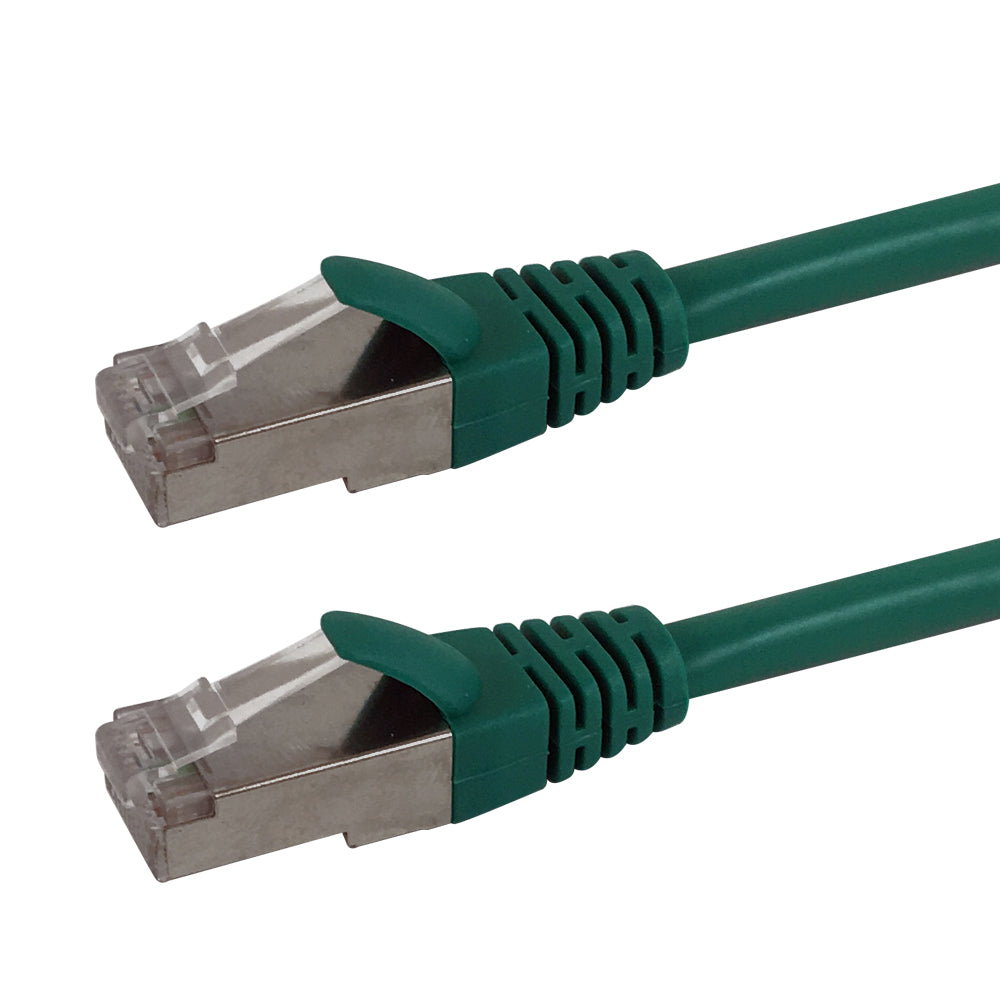

| CAT6SM-01GN | 1ft / Green | 0.07 lb |
| CAT6SM-02GN | 2ft / Green | 0.1 lb |
| CAT6SM-03GN | 3ft / Green | 0.15 lb |
| CAT6SM-05GN | 5ft / Green | 0.2 lb |
| CAT6SM-07GN | 7ft / Green | 0.24 lb |
| CAT6SM-10GN | 10ft / Green | 0.33 lb |
| CAT6SM-15GN | 15ft / Green | 0.5 lb |
| CAT6SM-25GN | 25ft / Green | 0.77 lb |
| CAT6SM-35GN | 35ft / Green | 1.1 lb |
| CAT6SM-50GN | 50ft / Green | 1.55 lb |

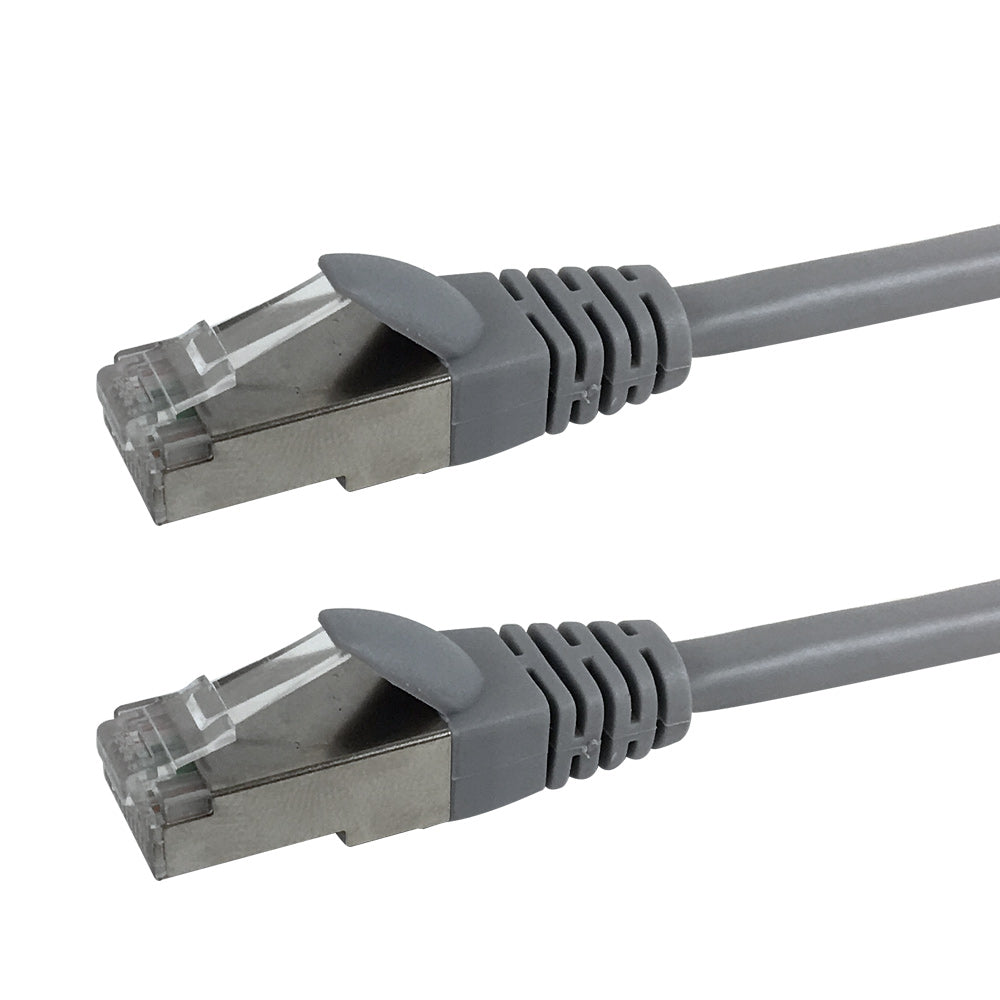

| CAT6SM-01GY | 1ft / Grey | 0.07 lb |
| CAT6SM-02GY | 2ft / Grey | 0.1 lb |
| CAT6SM-03GY | 3ft / Grey | 0.15 lb |
| CAT6SM-05GY | 5ft / Grey | 0.2 lb |
| CAT6SM-07GY | 7ft / Grey | 0.24 lb |
| CAT6SM-10GY | 10ft / Grey | 0.33 lb |
| CAT6SM-15GY | 15ft / Grey | 0.5 lb |
| CAT6SM-25GY | 25ft / Grey | 0.77 lb |
| CAT6SM-35GY | 35ft / Grey | 1.1 lb |
| CAT6SM-50GY | 50ft / Grey | 1.55 lb |

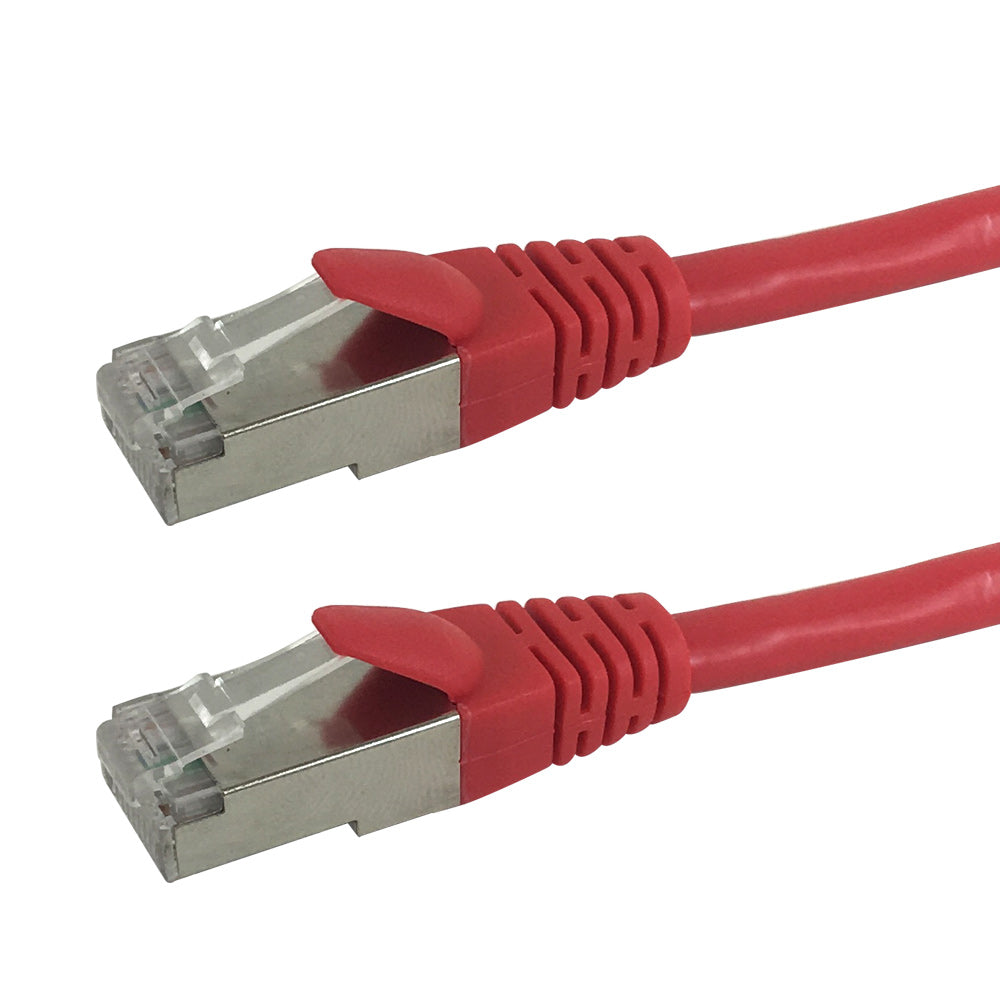

| CAT6SM-01RD | 1ft / Red | 0.07 lb |
| CAT6SM-02RD | 2ft / Red | 0.1 lb |
| CAT6SM-03RD | 3ft / Red | 0.15 lb |
| CAT6SM-05RD | 5ft / Red | 0.2 lb |
| CAT6SM-07RD | 7ft / Red | 0.24 lb |
| CAT6SM-10RD | 10ft / Red | 0.33 lb |
| CAT6SM-15RD | 15ft / Red | 0.5 lb |
| CAT6SM-25RD | 25ft / Red | 0.77 lb |
| CAT6SM-35RD | 35ft / Red | 1.1 lb |
| CAT6SM-50RD | 50ft / Red | 1.55 lb |

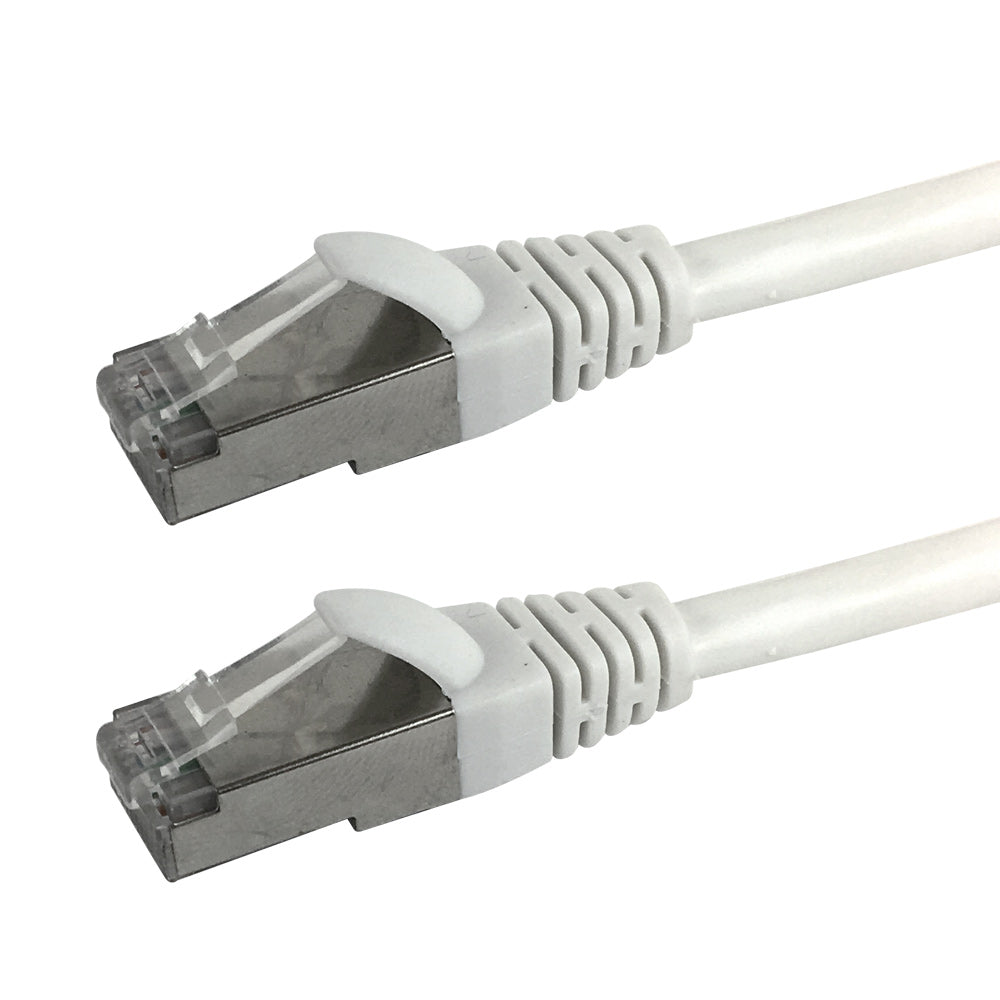

| CAT6SM-01WH | 1ft / White | 0.07 lb |
| CAT6SM-02WH | 2ft / White | 0.1 lb |
| CAT6SM-03WH | 3ft / White | 0.15 lb |
| CAT6SM-05WH | 5ft / White | 0.2 lb |
| CAT6SM-07WH | 7ft / White | 0.24 lb |
| CAT6SM-10WH | 10ft / White | 0.33 lb |
| CAT6SM-15WH | 15ft / White | 0.5 lb |
| CAT6SM-25WH | 25ft / White | 0.77 lb |
| CAT6SM-35WH | 35ft / White | 1.1 lb |
| CAT6SM-50WH | 50ft / White | 1.55 lb |

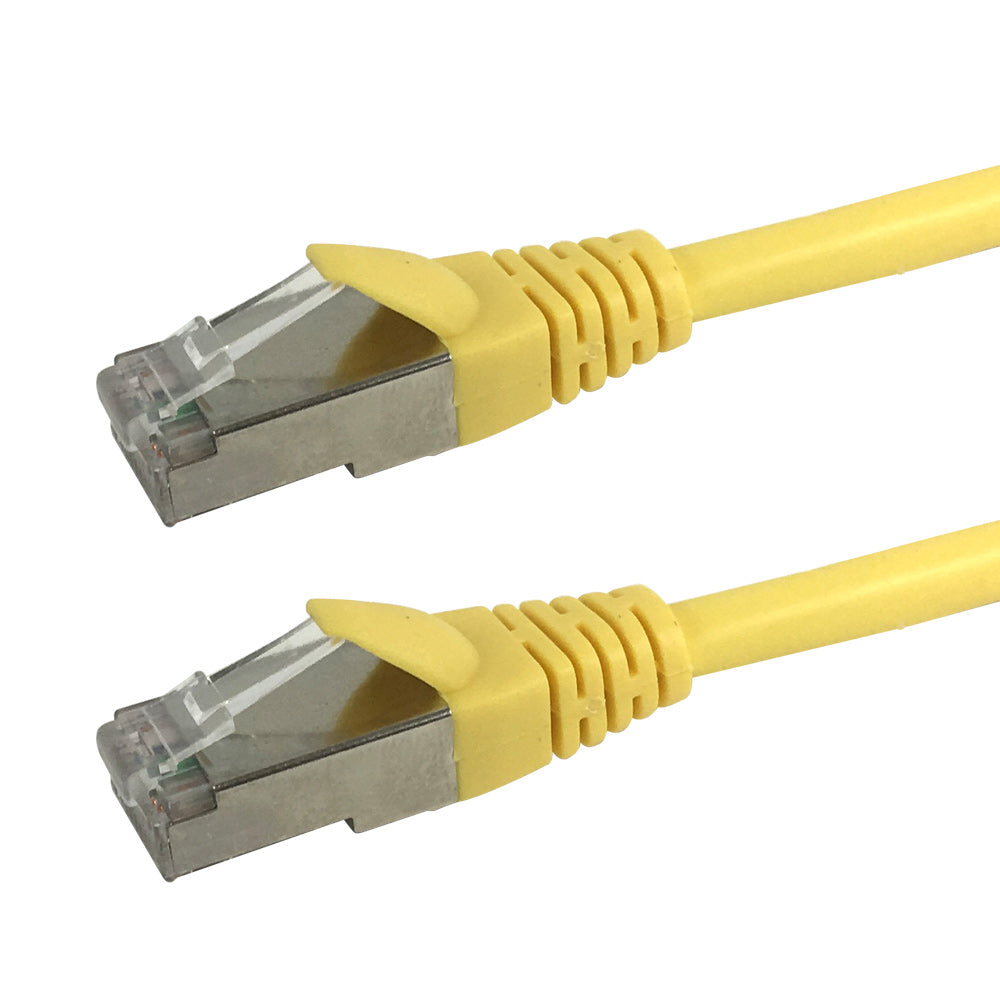

| CAT6SM-01YL | 1ft / Yellow | 0.07 lb |
| CAT6SM-02YL | 2ft / Yellow | 0.1 lb |
| CAT6SM-03YL | 3ft / Yellow | 0.15 lb |
| CAT6SM-05YL | 5ft / Yellow | 0.2 lb |
| CAT6SM-07YL | 7ft / Yellow | 0.24 lb |
| CAT6SM-10YL | 10ft / Yellow | 0.33 lb |
| CAT6SM-15YL | 15ft / Yellow | 0.5 lb |
| CAT6SM-25YL | 25ft / Yellow | 0.77 lb |
| CAT6SM-35YL | 35ft / Yellow | 1.1 lb |
| CAT6SM-50YL | 50ft / Yellow | 1.55 lb |
