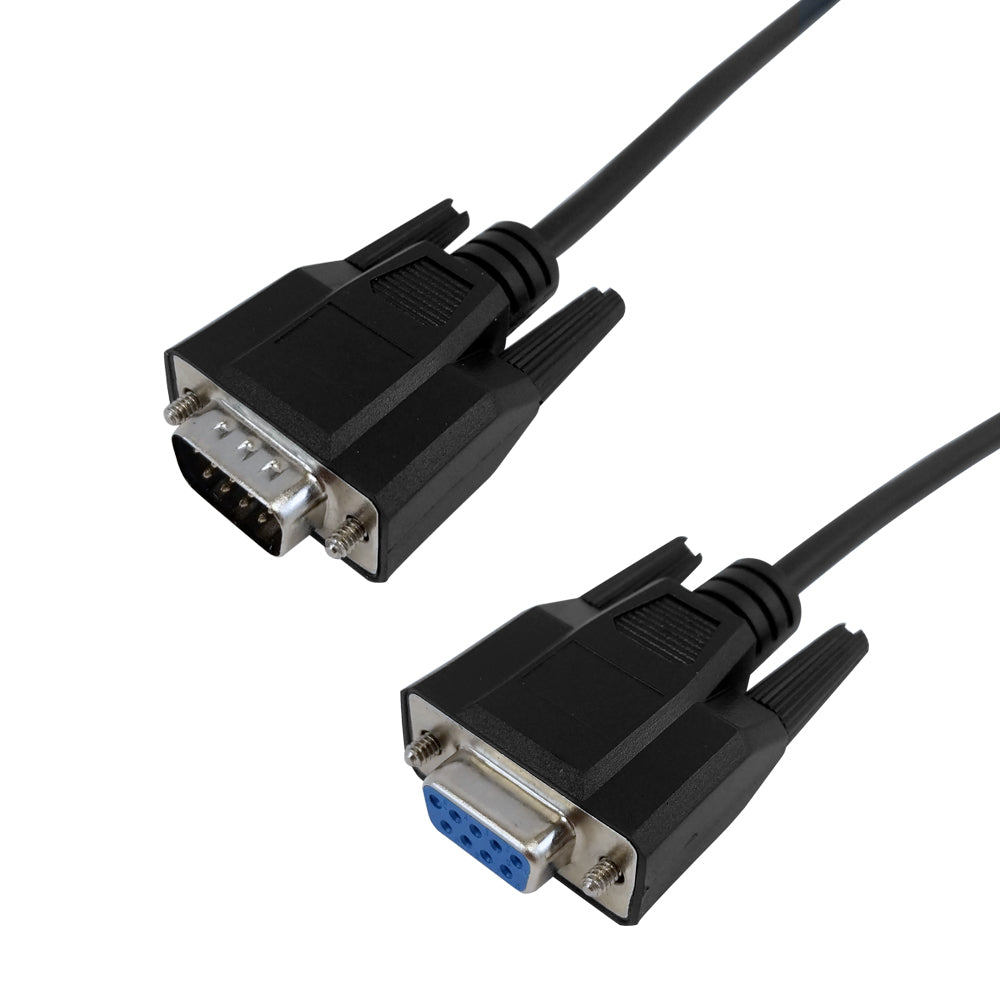

DB9 Male to DB9 Female Serial Cable - Straight-Through

Serial CablesSKU: SR-101-01BK

Length: 1ft
Price:
Sale price$2.30 USD
Stock:
In stock

Description

This DB9 serial cable consists of a DB9 male on one and a DB9 female on the other. It is commonly used in serial RS-232 data applications.

Physical Characteristics
Color Black
Number of Conductors 9 Conductors
Wire Gauge 28AWG Stranded
Jacket Material PVC - Polyvinyl Chloride
Cable Shielding 100% Aluminum Mylar Foil Shield
Connectors
Connector A DB9 Male
Connector B DB9 Female
Pin Out
DB9 Male - DB9 Female
1 - 1
2 - 2
3 - 3
4 - 4
5 - 5
6 - 6
7 - 7
8 - 8
9 - 9
Shell - Shell
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty
Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft 15ft 25ft 50ft
0.15 lbs 0.25 lbs 0.30 lbs 0.35 lbs 0.50 lbs 0.70 lbs 1.30 lbs

Product Weight

1ft
SR-101-01BK
0.07 lb
3ft
SR-101-03BK
0.15 lb
6ft
SR-101-06BK
0.21 lb
10ft
SR-101-10BK
0.33 lb
15ft
SR-101-15BK
0.5 lb
25ft
SR-101-25BK
0.77 lb
50ft
SR-101-50BK
1.55 lb
