Description

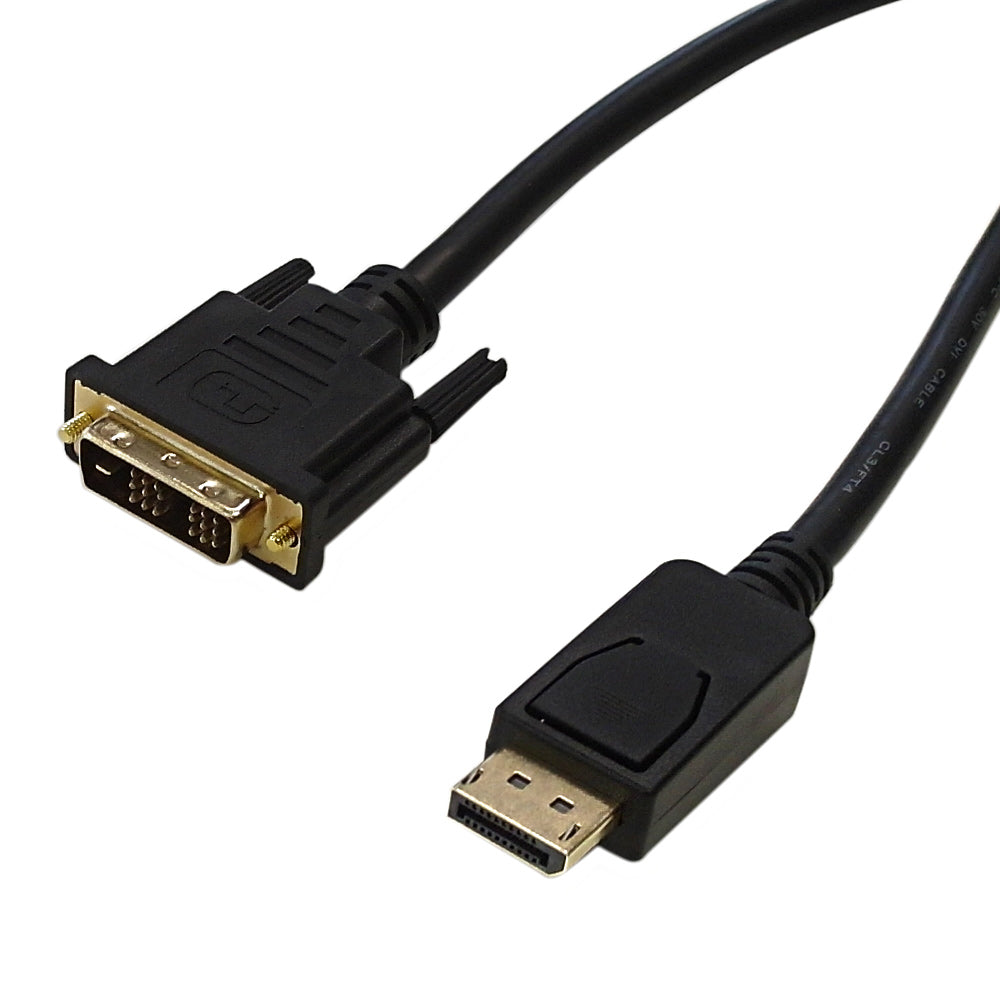

This cable consists of a DisplayPort male on one end and a DVI male on the other end. It is typically used to connect a DisplayPort PC to a DVI monitor. This is a passive directional cable that will only work on a DisplayPort++ (DP++) source to DVI monitor and does not work in the reverse direction (DVI PC to DisplayPort monitor).
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 7.3 mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CL3, FT4 Riser Rated |
| Cable Shielding | Yes |
| Strain Relief | Molded PVC |
| Temperature Rating | 80 deg C |
| Connector(s) | |
| Connector A | DVI Single Link Male |
| Connector B | DisplayPort Male |
| Performance | |
| Bandwidth | 6.75Gb/S |
| Resolution | 1080P |
| 3D Support | No |
| Version | v1.1 |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.23 lbs | 0.35 lbs | 0.50 lbs | 0.72 lbs | 1.10 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DP-DVI-03 | 3ft | 0.15 lb |
| DP-DVI-06 | 6ft | 0.21 lb |
| DP-DVI-10 | 10ft | 0.33 lb |
| DP-DVI-15 | 15ft | 0.5 lb |
| DP-DVI-25 | 25ft | 0.77 lb |
