Description
Overview

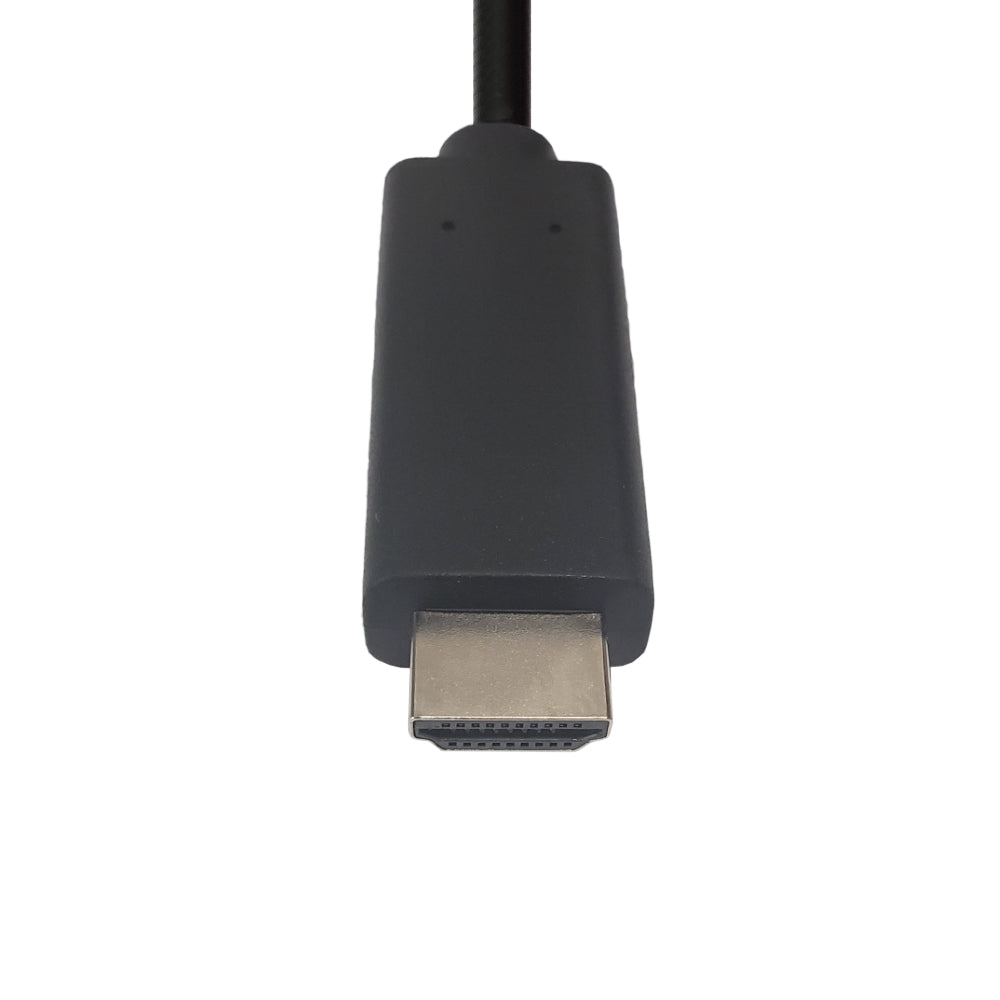

This cable has a DisplayPort male on one end and a HDMI male on the other. It is used to connect a DP source to a HDMI display. It cannot be used to connect a HDMI source to a DisplayPort monitor.
Note: The output resolution, refresh rate and video pixel format depends on the performance of the computer and the monitor.
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 8K @ 60Hz. Used in Common InstancesThis cable can be used in common instances - for example, connecting your PC to a TV, at the highest possible resolution available.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge | 32 AWG |
| Working Voltage | 3.3 - 3.6V |
| Working Current | 150mA - 300mA |
| Standby Power Consumption | ā¤1W |
| Operating Temperature & Humidity | 0Ā°C to +45Ā°C 10% to 90 % RH (no condensation) |
| Storage Temperature & Humidity | -10Ā°C to +70Ā°C 10% to 90 % RH (no condensation) |
| Connectors | |
| Connector A | HDMI Male |
| Connector B | DisplayPort Male |
| Performance | |
| HDMI Features | Supports HDMI max 8K/60Hz Supports Dynamic HDR10+ Supports HDCP1.4 & HDCP2.3 specification Supports HPD Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth output Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 Supports 1 to 32 channels LPCM 192kHz audio output Supports HBR audio up to 1536kHz |
| DisplayPort Features | Supports DP1.4 Supports DSC1.1/1.2a or uncompressed video Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 |
| Certifications | |
| FCC, CE | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft |
|---|---|---|
| 0.12 lbs | 0.16 lbs | 0.34 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DP-HD101-03 | 3ft | 0.15 lb |
| DP-HD101-06 | 6ft | 0.21 lb |
| DP-HD101-10 | 10ft | 0.33 lb |
