Description

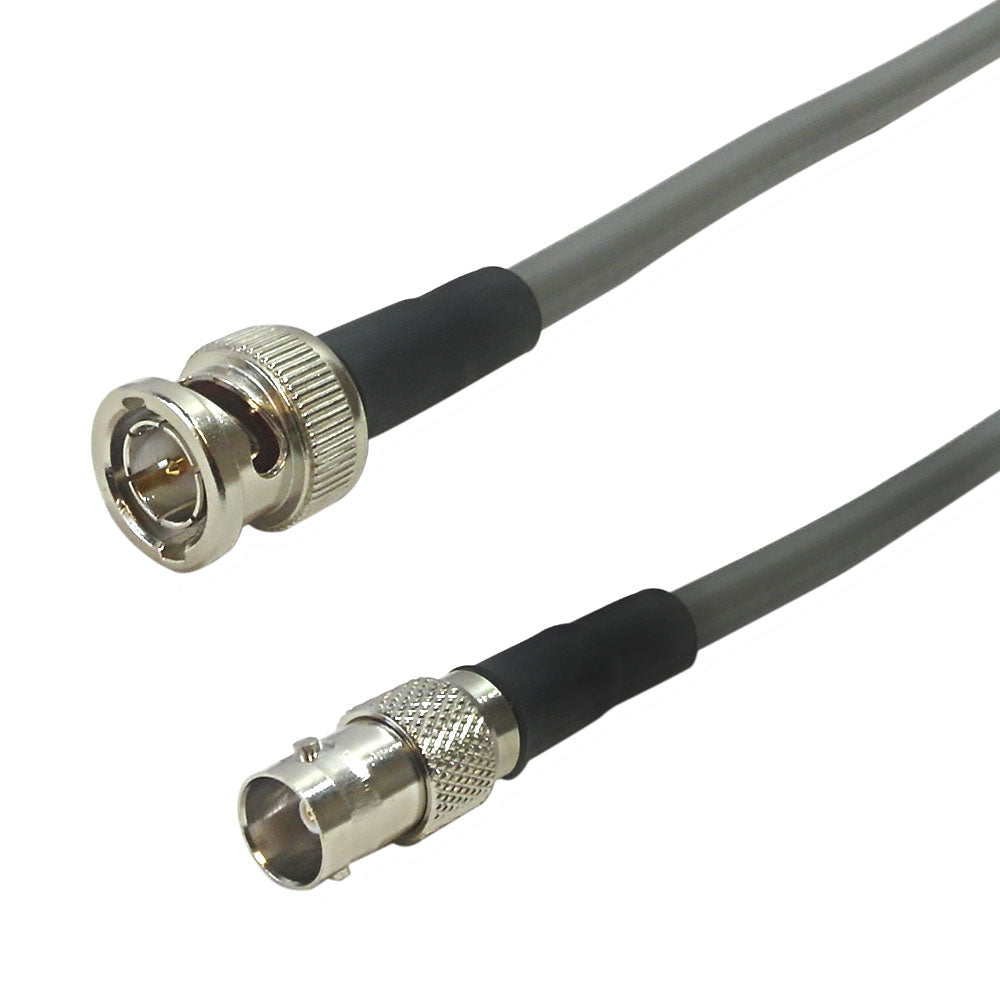

This DS3 (T3) 734A simplex cable has a BNC male on one end, and a BNC female on the other end. This 75 ohm telephony coaxial cable is typically used for the interconnection of transmission equipment.
- Superior structural return loss and attenuation performance
- Silver plated copper cable for better attenuation performance
- Heavy duty connectors allow for optimum durability and connectivity
Specifications
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Connector Plating | Nickel |
| Cable Type | Belden 734A1 Single Coax 20 AWG Solid |
| Cable Jacket Material | Polyvinyl Chloride (PVC) |
| Operating Temperature | -40C to +75ā |
| Fire Rating | FT4, UL1666 |
| Connectors | |
| Connector A | BNC Male |
| Connector B | BNC Female |
| Performance | |
| Impedance | 75 ohm |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 150ft | 200ft |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.35lbs | 0.70lbs | 1.07lbs | 01.77lbs | 2.84lbs | 3.91lbs | 5.68lbs | 8.52lbs | 11.36lbs | 17.04lbs | 22.72lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| DS3-101-03 | 3ft | 0.19 lb |
| DS3-101-06 | 6ft | 0.34 lb |
| DS3-101-10 | 10ft | 0.53 lb |
| DS3-101-15 | 15ft | 0.77 lb |
| DS3-101-25 | 25ft | 1.25 lb |
| DS3-101-35 | 35ft | 1.73 lb |
| DS3-101-50 | 50ft | 8.5 lb |
| DS3-101-75 | 75ft | 3.65 lb |
| DS3-101-100 | 100ft | 4.85 lb |
| DS3-101-150 | 150ft | 7.25 lb |
| DS3-101-200 | 200ft | 34.0 lb |
