Description

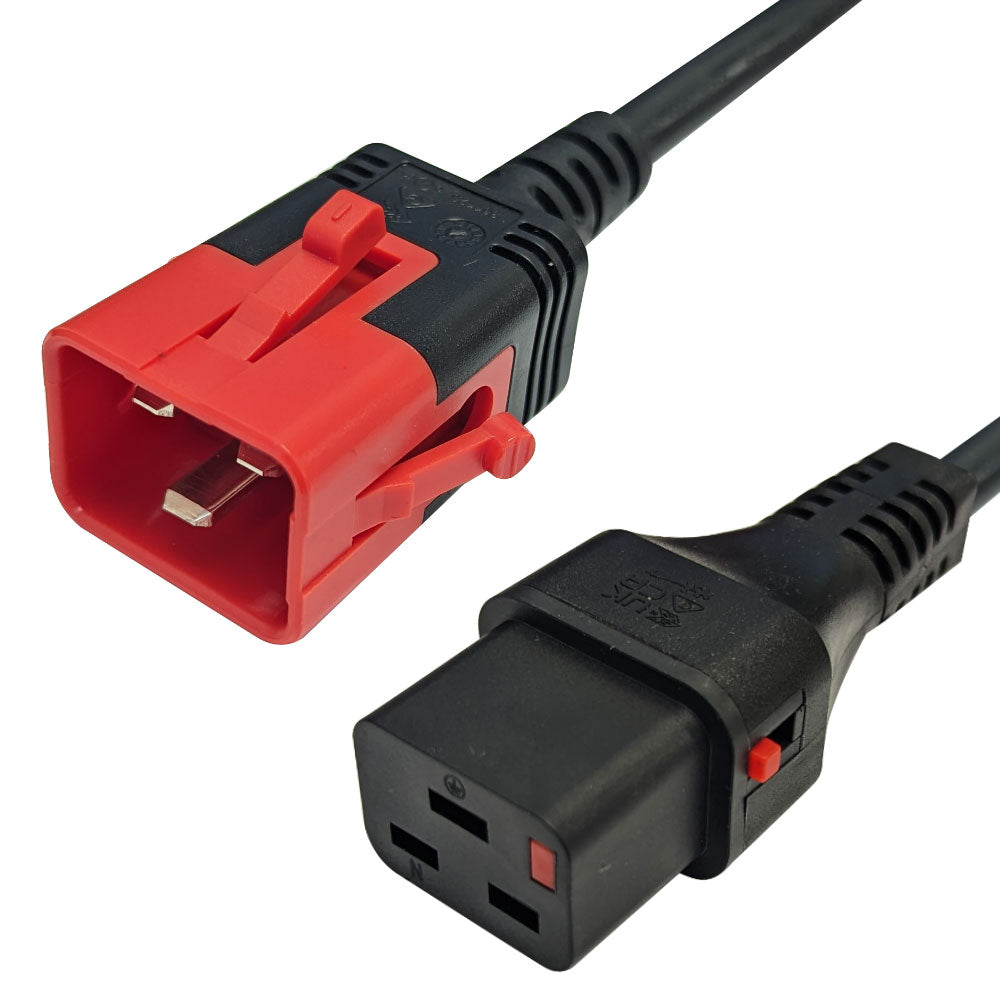

This power cord consists of a locking C20 male on one end and a locking C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. The unique dual lockable C19 female and C20 male connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Conductor Color Codes | Earth (Green and Yellow) Neutral (Blue) Live (Brown) |
| Wire Gauge | 14AWG / 1.5 mm2 |
| Jacket | Heavy Duty SJT / H05VV-F (Universal Approved) |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded PVC |
| Temperature Rating | 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 Locking C19 - c(UL)us |
| Connector B | IEC 60320 Locking C20 - c(UL)us |
| Performance | |
| Power Rating | 16 Amp / 250 Volt |
| Approvals | |
| c(UL)us | Yes |
| SAA | Yes |
| ENEC | Yes |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft |
|---|---|---|
| 0.34 lbs | 0.51 lbs | 0.78 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| PWDL-125C-03 | 3ft | 0.36 lb |
| PWDL-125C-06 | 6ft | 0.65 lb |
| PWDL-125C-10 | 10ft | 1.03 lb |
