Description

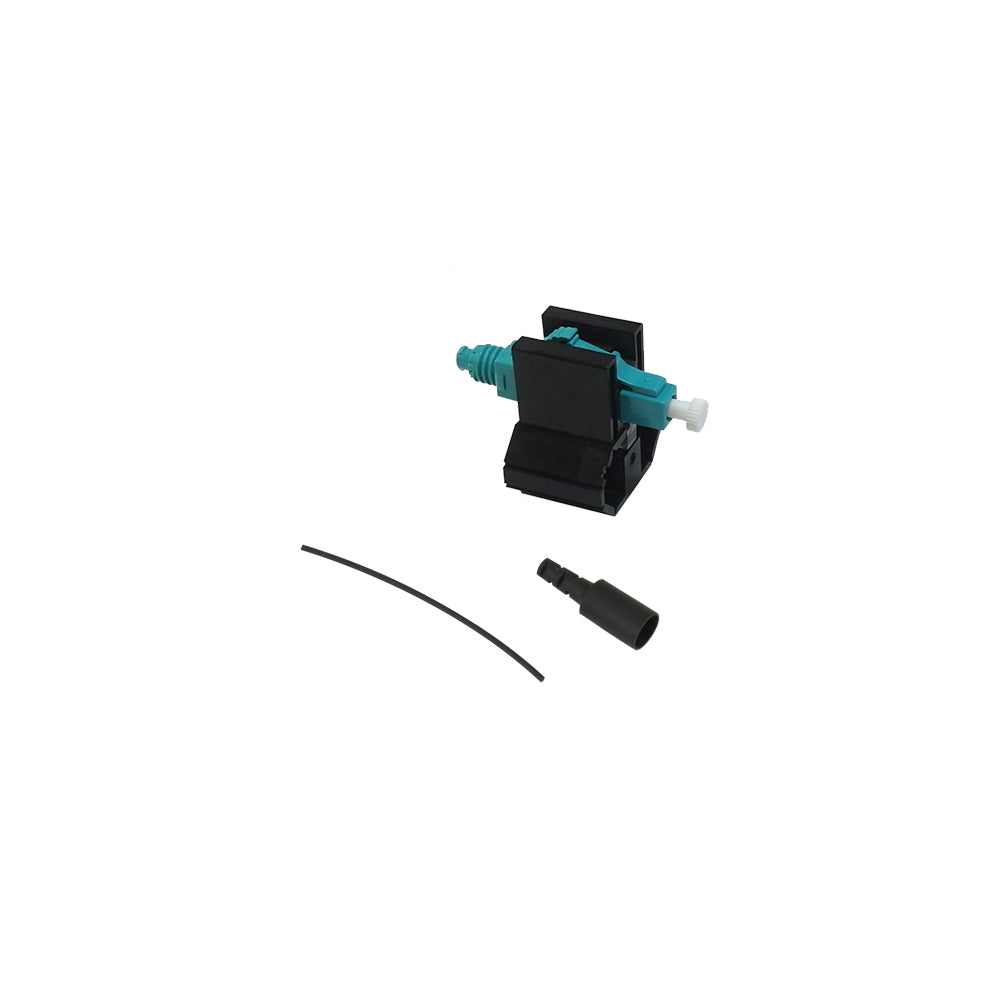

This device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
Features
- No Epoxy, No Polish
- Low Insertion Loss
- Fiber Can Be Reinserted up to Three Times
- 3.0 mm, 2.0 mm and 900 Āµm Cordage Compatibility
- VFI Accessory to Confirm Proper Installation
Applications
- Premise/Enterprise Networks
- LAN/WAN Connections
- Patch Panels
- Equipment Termination
- FTTx Applications
- Field Repair/Replacement
- Equipment Test Leads
| Physical Characteristics | ||
|---|---|---|
| Color | Aqua | |
| Cable Diameter | 900 Āµm | |
| Fiber Size | 50/125 micron | |
| Fiber Type | Multimode | |
| Operating Temperature | -40ā to +75ā | |
| Fiber Classification | OM3/OM4 | |
| Connector | ||
| Connector | LC Simplex Male | |
| Performance | ||
| Insertion Loss | Average: 0.1 dB, Maximum: 0.5 dB | |
| Return Loss | Average: -25 dB, Maximum: -20 dB | |
| Package Information | ||
| Package Quantity | 6 | 100 |
| Product Weight | 0.18 lbs | 2.51 lbs |
Spec Sheets
Installation Video
Product Weights
| SKU | Options | Weight |
| FO-FAST-LC-MM50L-100 | 100/Pack | 2.51 lb |
| FO-FAST-LC-MM50L-6 | 6/Pack | 0.18 lb |
