Overview

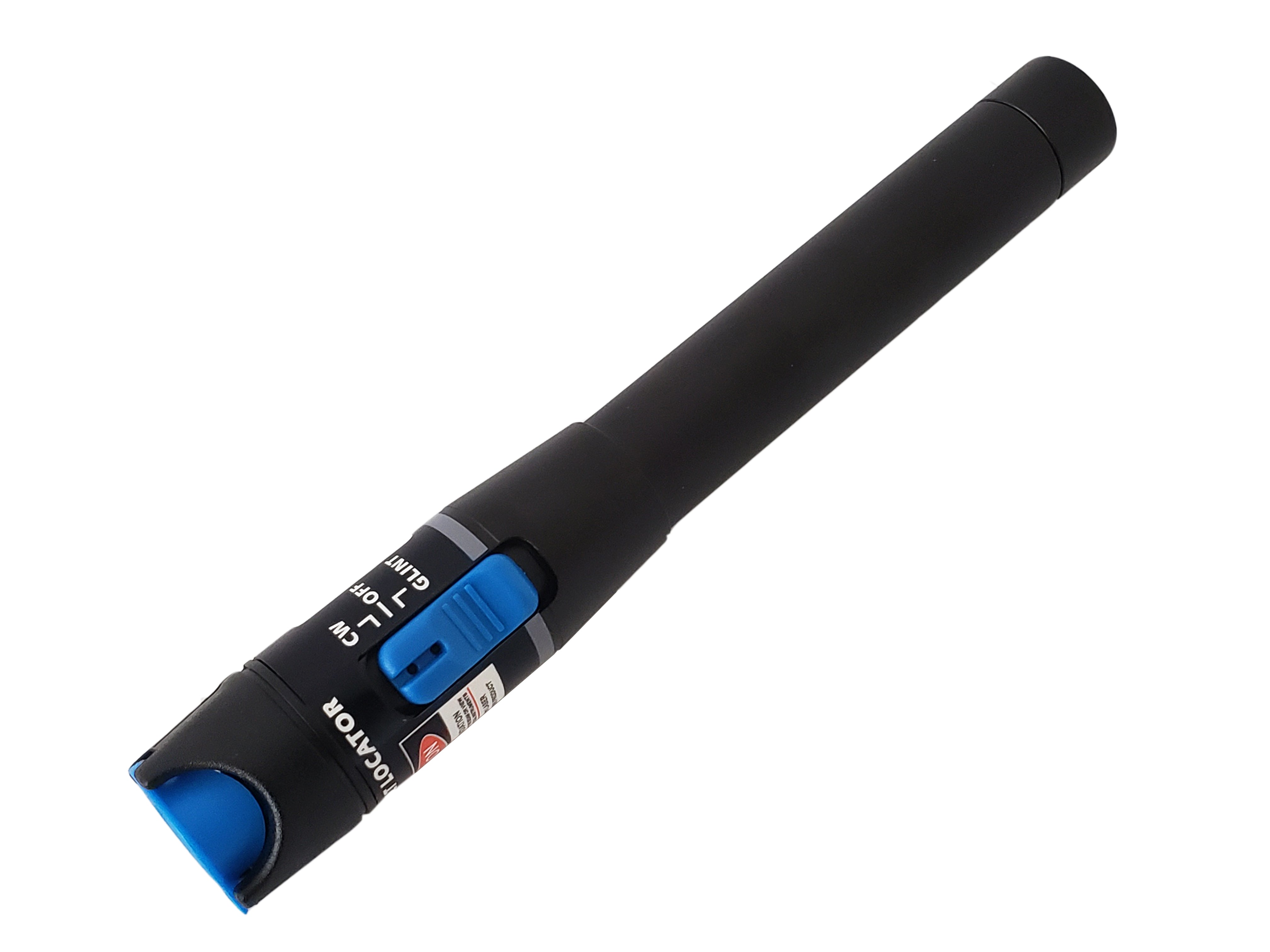

This pen shaped visual fault locator is a tool used on terminated fiber optic cables to locate sharp bends or breaks in jacketed or bare fiber.
Note: Meant for use with polished, terminated fiber cables. Always insert and remove the fiber connector without bending the connector to avoid breaking the ceramic tube.Ā
 |
Protective CoverThe protective dust cap keeps the fiber connection port clear from dust and debris when not in use. Durable Metal HousingThe VFL is constructed with a metal housing for long lasting durability. Identify Fiber Breaks EasilyThe pen has a bright red laser at 650nm and can quickly illuminate fiber optic cable breaks. It also has continuous (CW) and flashing (Glint) modes. Ā |
Specifications
| Physical Characteristics | |
|---|---|
| Material | Metal Housing |
| Wave Output | 650nm Ā± 20nm |
| Fiber Connector | 2.5mm Universal Connector |
| Output Power | 1mW |
| Dynamic Distance | 3~5km |
| Operation Mode | Pulsed (2Hz) and CW |
| Operating Temperature | 0 ~ +60 deg C |
| Storage Temperature | -20 ~ +70 deg C |
| Battery Style | LR6 (AA) 1.5V x 2 (Batteries not Included) |
| Battery Life | >40H (1mW) |
| Size | 175 x 26 x 26mm |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.37 lbs [0.17 kg] |
| Items Included | 1 x VFL Pen 1 x Carrying Case 1 x Carrying Strap (Batteries not Included) |
Ā

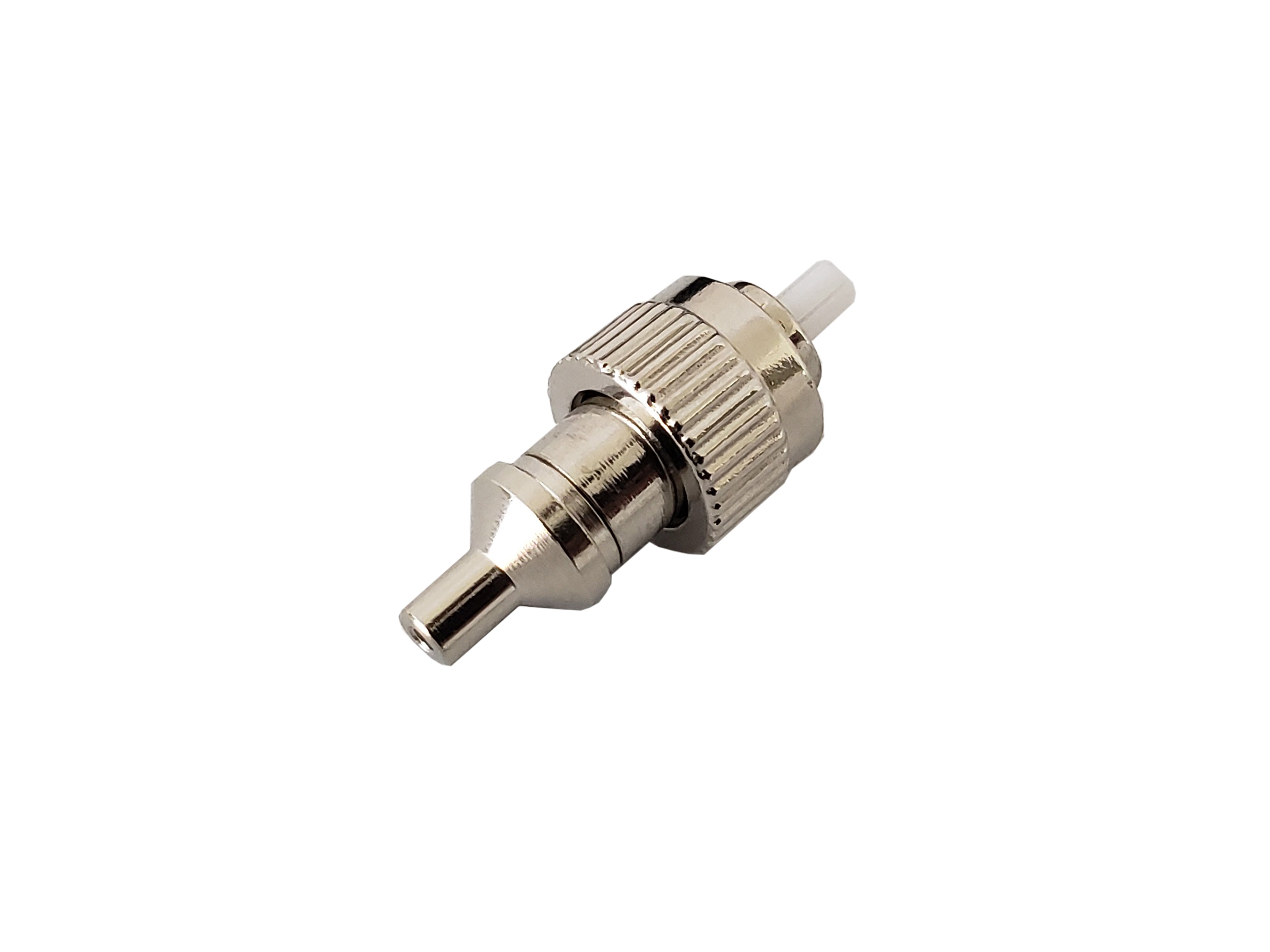

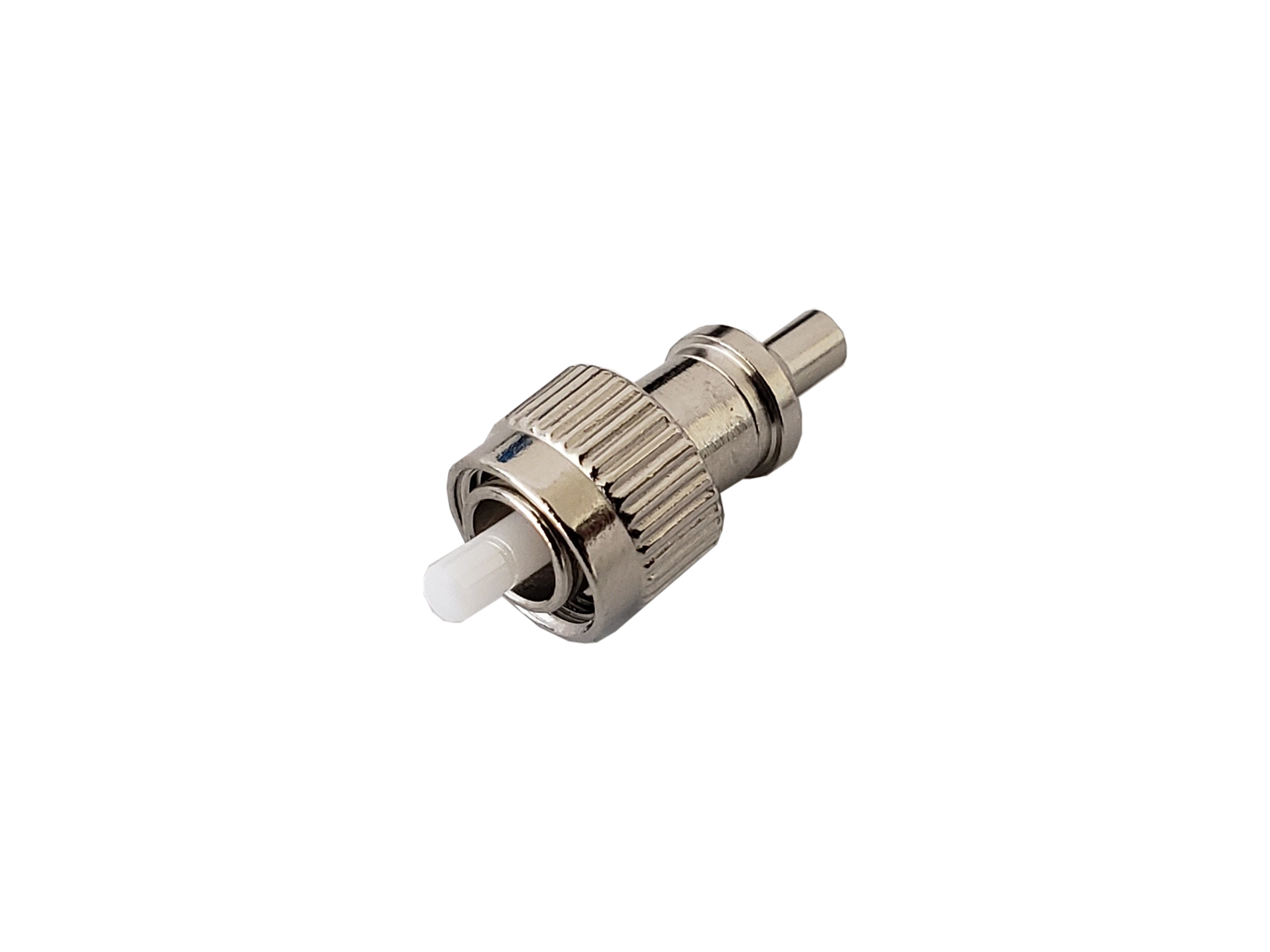

This ferrule adapter is used to convert the 2.5mm ferrule of a VFL to a 1.25mm ferrule in order to plug in LC connectors.Ā Compatible with our TLH-2000 VFL tool.
| Physical Characteristics | |
|---|---|
| Color | Nickel Plated |
| Housing | Metal |
| Sleeve | Ceramic |
| Connector(s) | |
| Connector A | 2.5mm MaleĀ Ferrule |
| Connector B | 1.25mm Female Ferrule |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.01 lbs |
| SKU | Weight | |
| TLH-2000 + TLH-2000-A | 0.37 lb |
