Description
- Description
- Spec Sheets
- Product Weights
Description

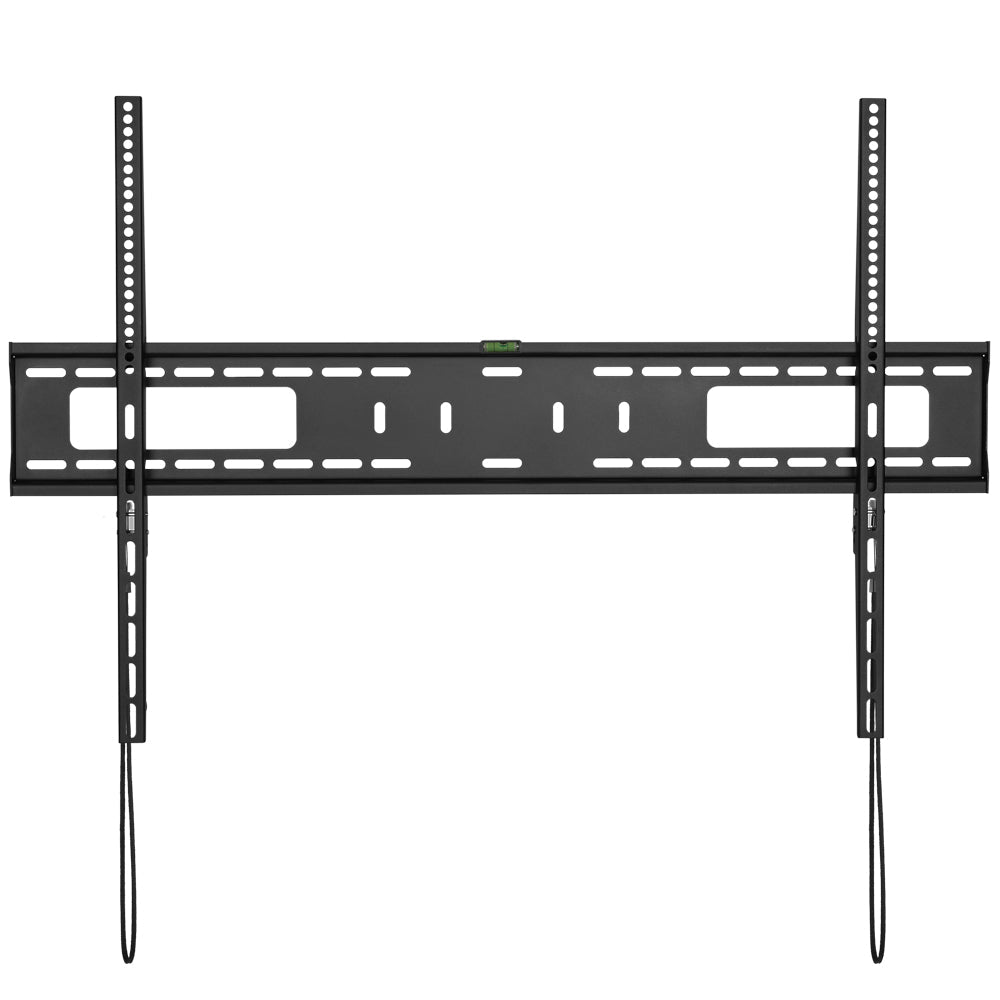

This LCD/LED fixed style wall mount bracket fits most 60 inch to 100inch LCD displays with a maximum VESA hole pattern of 900x600. Its simple construction allows for easy installation. It can be used in both residential and commercial environments.

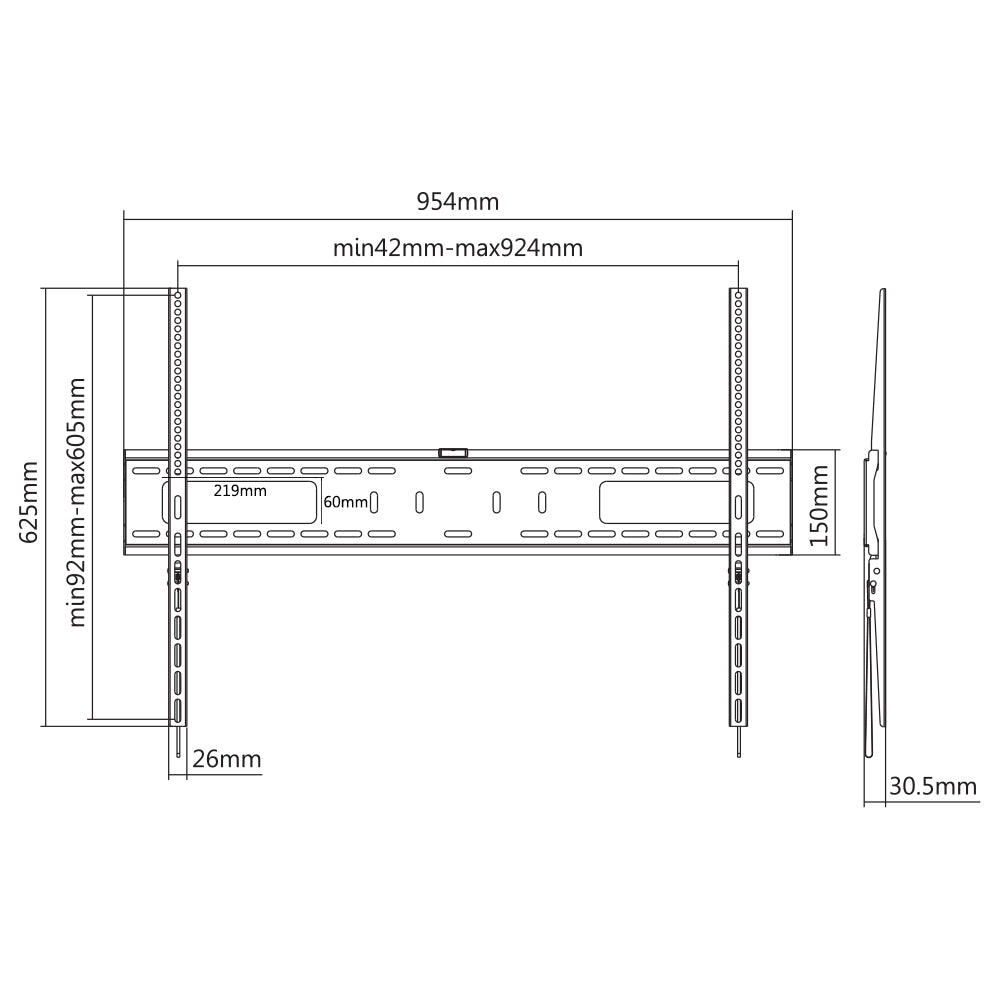

| Physical Characteristics | |
|---|---|
| Mounting Style | Fixed Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400,600x600 ,800x600, 900x600 |
| Screen Size | 60 - 100 inches [152.4 - 254cm] |
| Weight Capacity | 165 lbs [75kg] |
| Tilt | No |

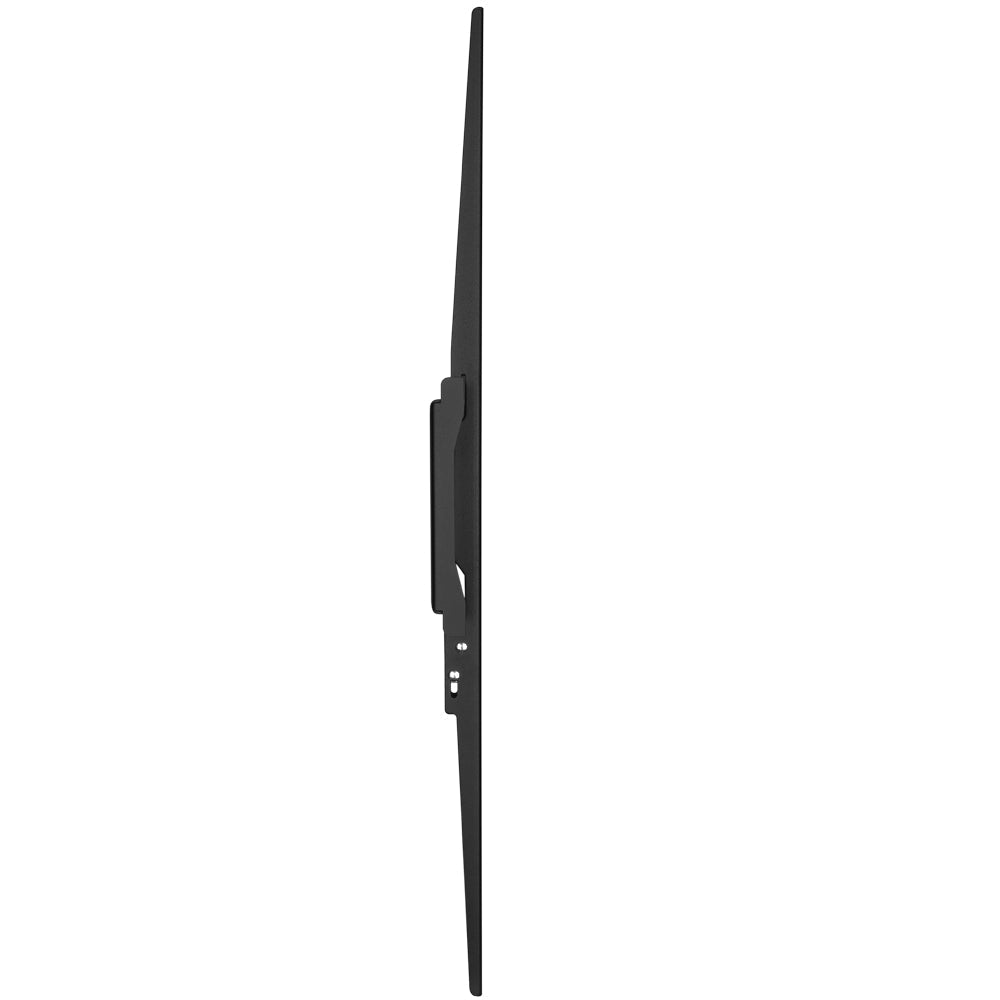

| Profile | 30.5 mm |
| Bubble Level | Compliant |
| Installation | Solid Wall or Double Stud |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 7.75 lbs [3.5kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| MT-345-BK | 7.75 lb |
