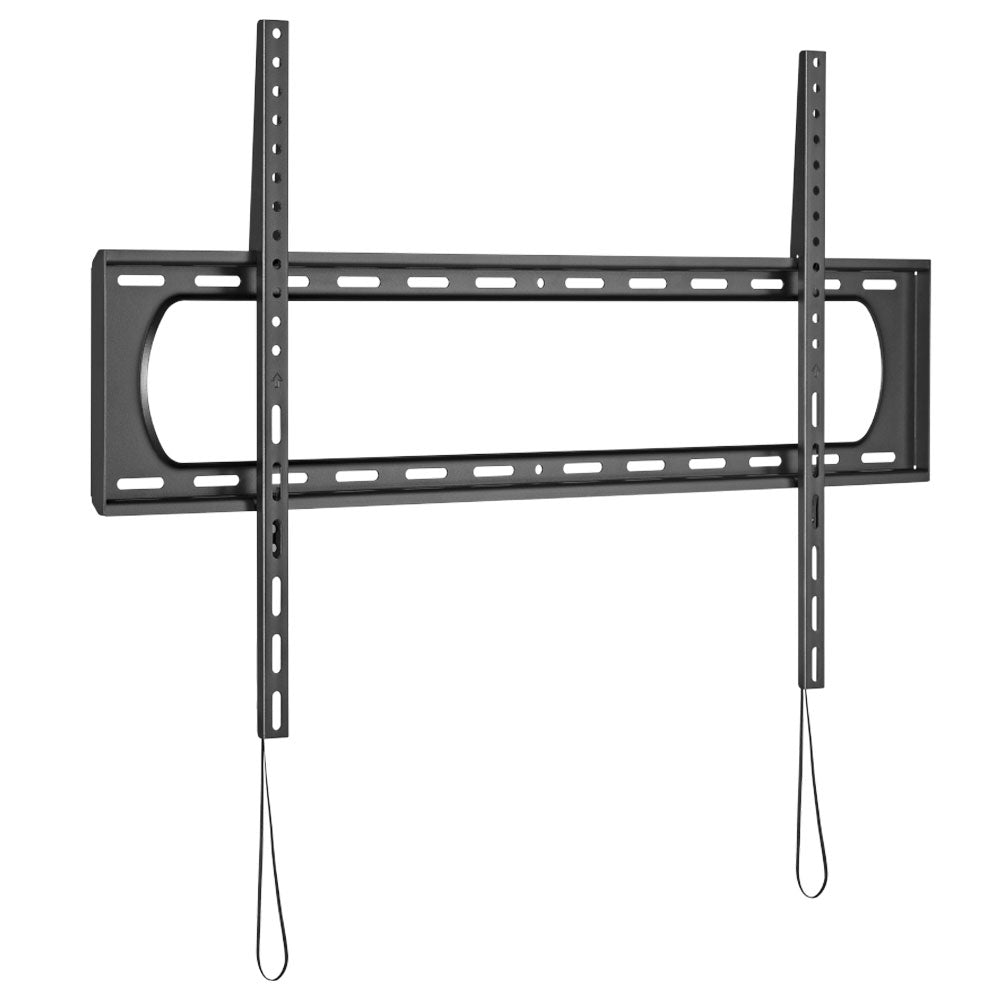

This LCD/LED fixed style wall mount bracket fits most 60 inch to 120 inch LCD displays with a maximum VESA hole pattern of 900x600. Its simple construction allows for easy installation. It can be used in both residential and commercial environments.
Features
- Heavy-Duty Construction: provides extra strength and durability
- Open Architecture: provides increased ventilation and easier access to wires

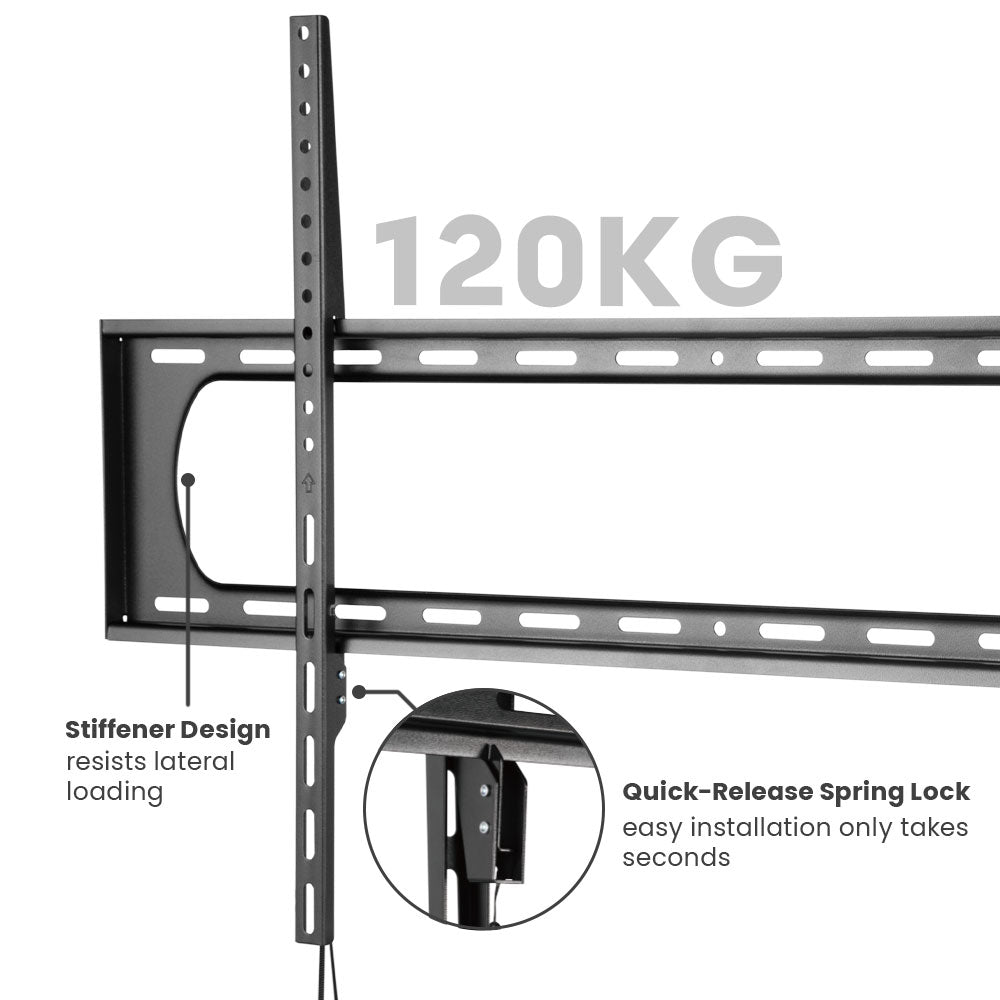

- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
| Physical Characteristics | |
|---|---|
| Mounting Style | Fixed Wall Mount |
| Color | Black |
| Material | Steel |
| Surface Finish | Powder Coating |

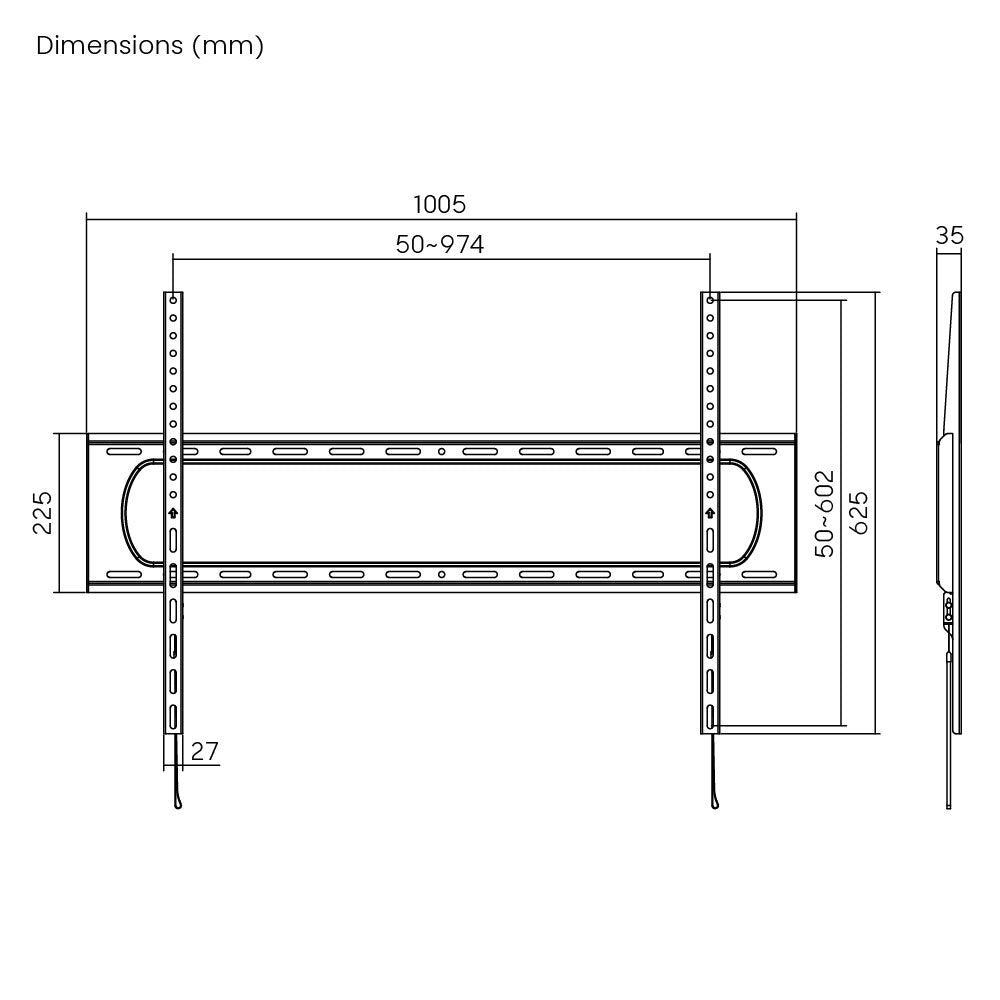

| Dimensions | 35x1005x625mm (1.4"x39.6"x24.6") |
| Mounting Pattern | VESA 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600 |
| Max. Mounting Hole | 974x602mm |
| Screen Size | 60"-120" |
| Fit Curved TV | Yes |
| Weight Capacity | 120kg (264lbs) |
| Strength Tested | 4 Times Approved |
| Tilt | No |
| Profile | 35mm (1.4") |
| Installation | Solid Wall, Dual Stud (406mm/450mm/600mm) |

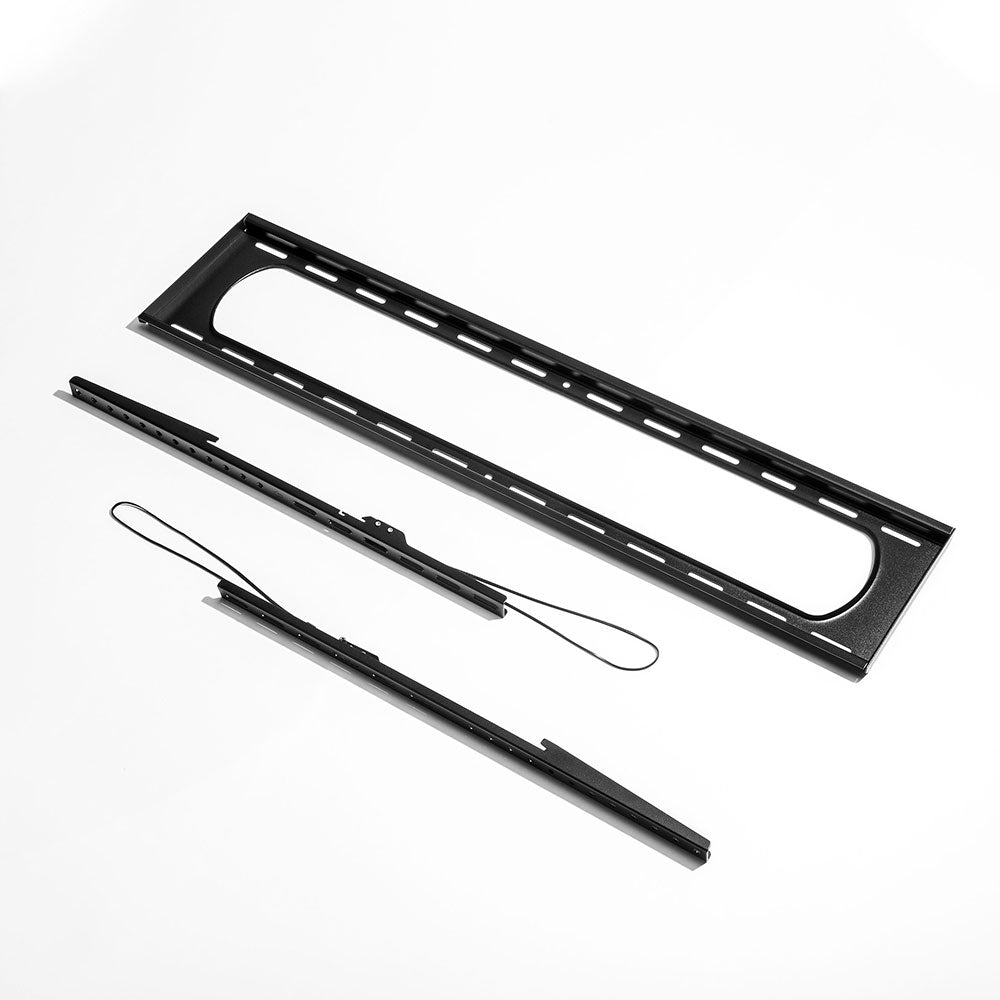

| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Approvals | |
| UL | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 8.5 lbs |
5-YEAR WARRANTY
Infinite Cables Inc. offers a 5-year warranty on this products to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
