Description
Overview

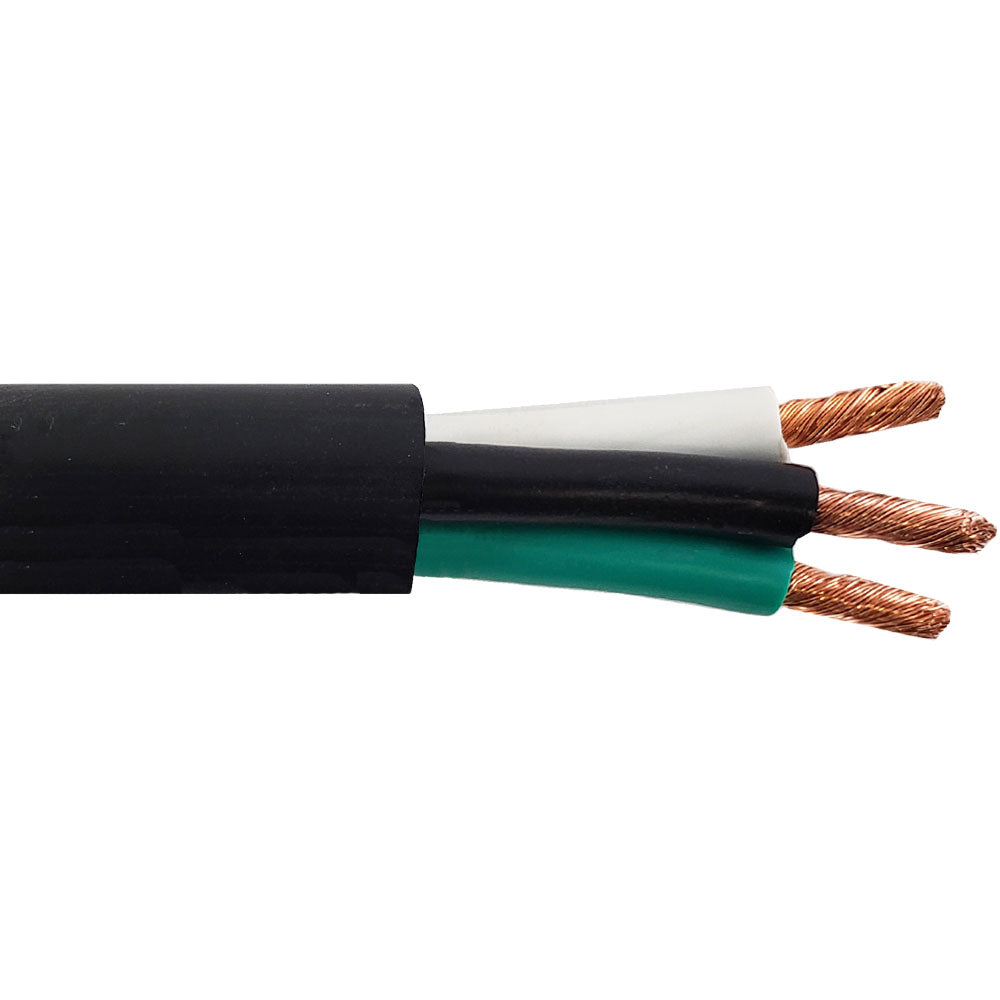

This bulk power cable consists of three 10 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.
 |
Annealed Bare Copper Conductors
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | Black, White, Green |
| Wire Gauge | 10AWG |
| Construction | 105/Éø0.254Ā±0.005 |
| Number of Conductors | 3 |
| Conductor Material | Annealed Bare Copper |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation Diameter | 5.4 Ā± 0.10 |
| Jacket | SJT |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 |
| Jacket Overall Diameter | 14.6 Ā± 0.2 |
| Minimum Average Thickness | 1.52mm |
| Core Assembly Twist | 3-Core |
| Core Assembly Filler | Cotton 20000D |
| Temperature Rating | 105ā |
| Performance | |
| Rating Voltage | 300V |
| Insulation Resistance | ā„ 0.76Mā¦/Km 15.0ā Min |
| Dielectric Strength | AC 2.0KV/1 min No Crack |
| Spark Test | 6KV/0.15 Sec |
| Insulation Unaged Tensile Strength / Elongation | 1500 lbs/in2 min / 100% Min |
| Insulation Aged Tensile Strength / Elongation |
Min 85%(136Ā±1āx168hrs) / Min 65%(136Ā±1āx168hrs) |
| Jacket Unaged Tensile Strength / Elongation | 1500 lbs/in2 min / 100% Min |
| Jacket Aged Tensile Strength / Elongation | Min 85%(136Ā±1āx168hrs) / Min 45%(136Ā±1āx168hrs) |
| Deformation Test | 121Ā±1ām X 1hr ā¤ 50% |
| Cold Bend Test | -20ā x 4hr No Crack |
| Heat Shock Test | 121Ā±1ā x 1hr No Crack |
| Approvals | |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
Lead-time
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| BK-PW3C10-SJT | 1.42 lb |
