Flexible Electrical Cord Cable - 10AWG 5C SOOW 600V 90C - Black (Per Meter)

Power Bulk CableSKU: BK-PW5C10-SOOW

Price:
Sale price$15.00 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

Overview

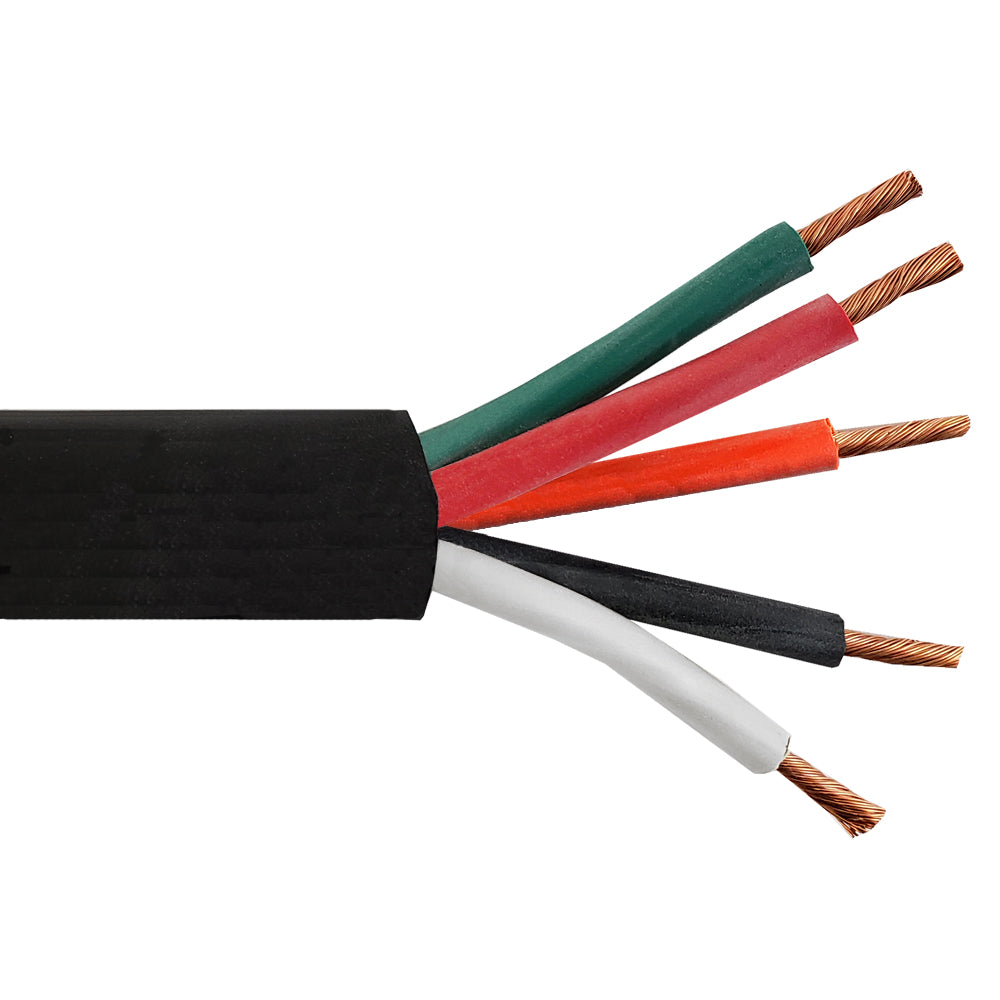

This bulk power cable consists of five 10 gauge conductors with a 600V SOOW jacket. It is typically used with industrial and processing equipment, cranes and hoists, track systems, construction equipment and other electrical equipment. It has excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water. The cable is sold in bulk per meter.

Features:

  • Suitable for shallow water immersion
  • NEC Article 700 permitted use for specific applications.
  • NFPA 70 permitted use in Hazardous Locations Classes I, II, III,
  • Divisions 1 & 2 as outlined in Articles 501, 502, 503 section 140

Flexible Stranded Bare Copper Conductors

This cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.

The Quality and Convenience You Need

This cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.

Specifications

Physical Characteristics
Color Black
Color Code ICEA S-58-679, Method 1, table 1; Black, White, Red, Green, Orange
Wire Gauge 10AWG
Wire Standard SOOW
Number of Conductors 5
Conductor Material Flexible Stranded Bare Copper, ASTM B-174 and UL 62
Insulation Material EPR Compound, 90ā„ƒ + class 3, table 8, UL 62
Assembly Insulated conductors cabled together
Separator Polyester tape for 18-10 AWG
Number of Power Conductor Stranding 103 / 30
Nominal Insulation Thickness 1.14mm
Nominal Jacket Thickness 2.41mm
Nominal Outer Diameter 19.3mm
Jacket Black CPE compound class, 90ā„ƒ + class 1.4, table 11, UL 62 integral fill
Jacket Fire Rating FT2 and MSHA
Temperature Rating -40ā„ƒ to 90ā„ƒ
Performance
Rating Voltage 600V
Approvals
UL 62/CSA-C 22.2 No 49
Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 1.42 lbs/m
SKU Weight
BK-PW5C10-SOOW 1.42 lb
