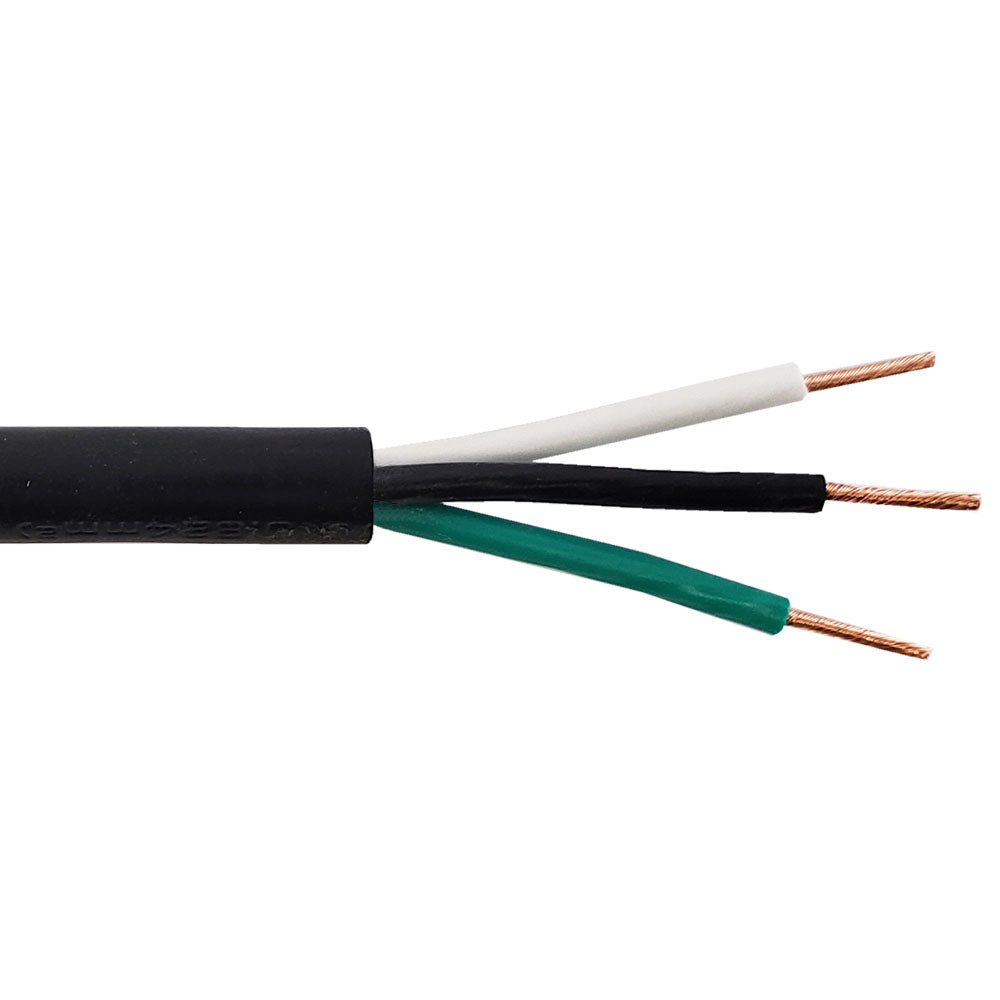

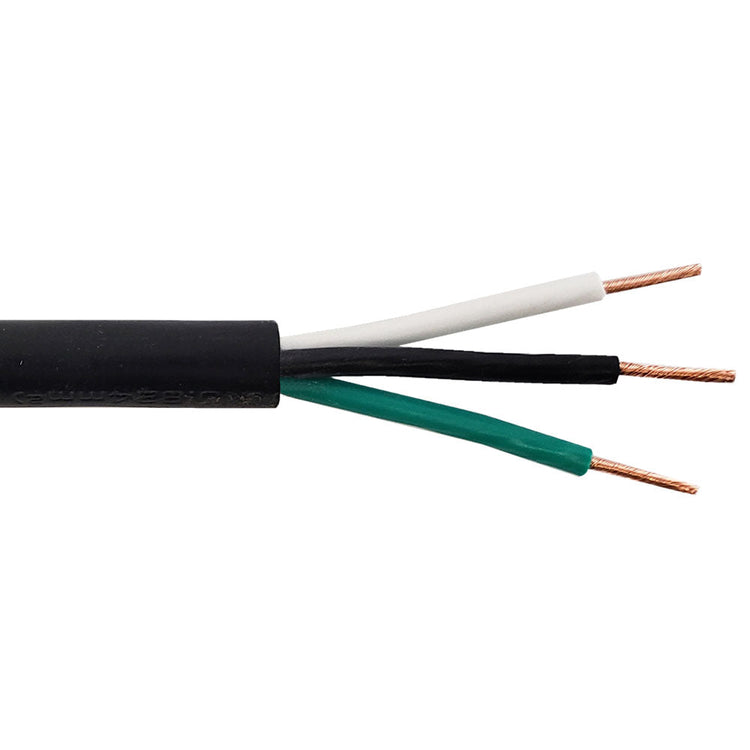

Flexible Electrical Cord Cable - 18AWG 3C SJT 300V 105C - Black (Per Meter)

Power Bulk CableSKU: BK-PWC3C18-SJT

Price:
Sale price$0.86 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

Overview

This bulk power cable consists of three 18 gauge conductors with a 300V SJT jacket. It is generally used to manufacture single phase IEC and NEMA cord sets. The cable is sold in bulk per meter.

Note: We offer a maximum of 300m spool size.

Bare Copper Conductors

This cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime.

The Quality and Convenience You Need

This cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.

Specifications

Physical Characteristics
Color Black
Color Code Black, White, Green
Wire Gauge 18AWG
Construction 41/ɸ0.16±0.008
Number of Conductors 3
Conductor Material Bare Copper
Conductor Diameter 1.18
Insulation Material PVC - Polyvinyl Chloride
Insulation Diameter 2.70 ± 0.10
Insulation Thickness 0.76
Jacket SJT
Jacket Material PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Jacket Overall Diameter 7.80 ± 0.15
Minimum Average Thickness 1.00mm
Cable Diameter 5.80
S=52REF.
Extrusion : Extrude tmax >= 0.81mm
tmin >= 0.71mm
Extrusion : Talcum Powder Extrude
tmax <= 1.27mm
tmin >= 1.12mm
Temperature Rating 105℃
Performance
Rating Voltage 300V
Conductor Resistance 23.2ohm/Km at 20℃ Max
Unaged Tensile Strength (Mpa) Insulation :>=10.29
Jacket :>=10.29
After Aging Tensile Strength (Mpa)
Insulation :>=8.75
Jacket :>=8.75
Unaged Elongation Rate (%) Insulation :>=100
Jacket :>=100
After Aging Elongation Rate 7d 136℃
Insulation :min65
Jacket :min45
Cold Bend Test -20±2℃ x 4hr No Crack
Heat Shock Test 121±1℃ x 1hr No Crack
Approvals
c(UL)us Yes
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 1.42 lbs/m
Max. Spool Size 300m
