Description

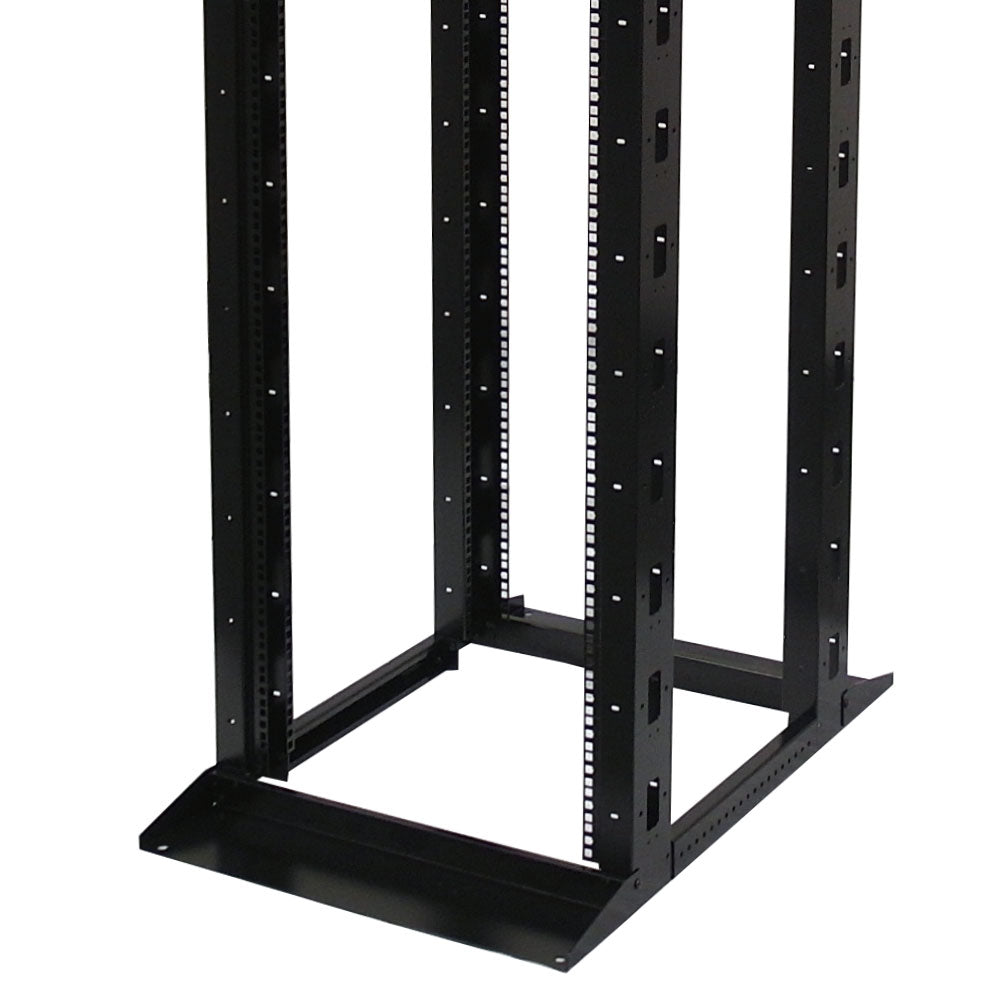

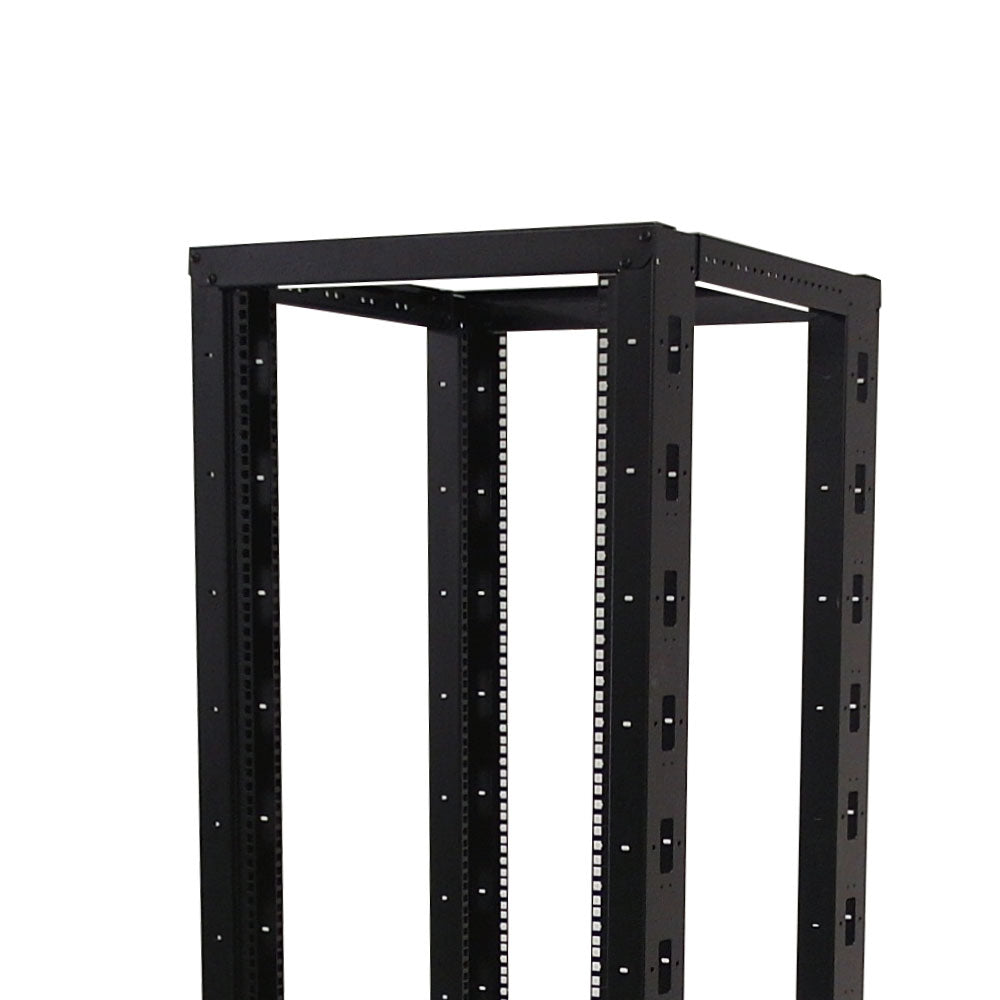

This 4-post relay rack is 19 inches wide, 42U in height and can be adjusted from 23 to 36 inches in depth. It is typically used to mount networking and audio/video rack mountable equipment.
| Physical Characteristics | |
|---|---|
| Color | Black - Powder Coated |
| Material | SPCC Cold Rolled Steel |
| Loading Capacity | Maximum 800kg |
| Mounting Rails | 2 Pairs of Square Hole Rails |
| Mounting Rail Thickness | 1.9mm |
| Product Dimensions |
78.6H, 23.6 W, Adjustable Depth from 23 to 36 inches [200 H, 60 W, 59 - 90 D cm] |
| Usable Mounting Dimensions |
42UH, 19" Wide, Adjustable Depth from 23 to 36 inches |
| Compatibility | |
| Compatible Vertical Cable Managers |
RM-450-42U - Vertical Cable Manager for Relay Rack - 42U RM-455-42U - 42U Vertical Cable Manager - Front Facing |
| Approvals | |
| ANSI/EIA | Compliant |
| RS-310-D | Compliant |
| IEC60297-2 | Compliant |
| DIN41494 | Compliant |
| PART1 | Compliant |
| PART7 | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 - 4-post Relay Rack - 19in 42U (Unassembled) |
| Assembly Hardware | |
| 40 Pairs of M6 Screws and Cage Nuts | |
| Product Weight | 86 lbs [39 kg] |
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| RM-125 | 77.0 lb |
