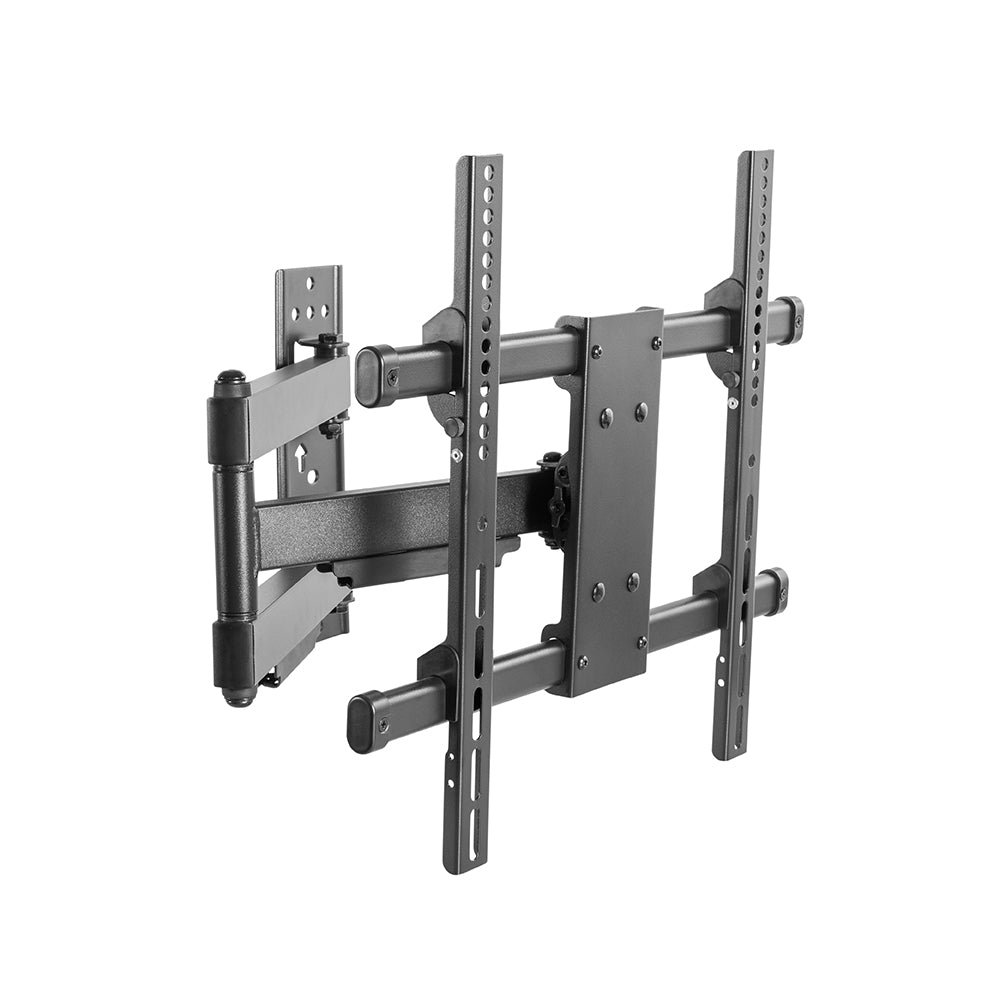

This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 32 inch to 55 inch LCD/LED displays with a maximum VESA hole pattern of 400x400. It offers up to a 5° to -15° tilt, 90° to -90° swivel and screen levelling of 3° ~ -3°. It can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Surface Finish | Powder Coating |

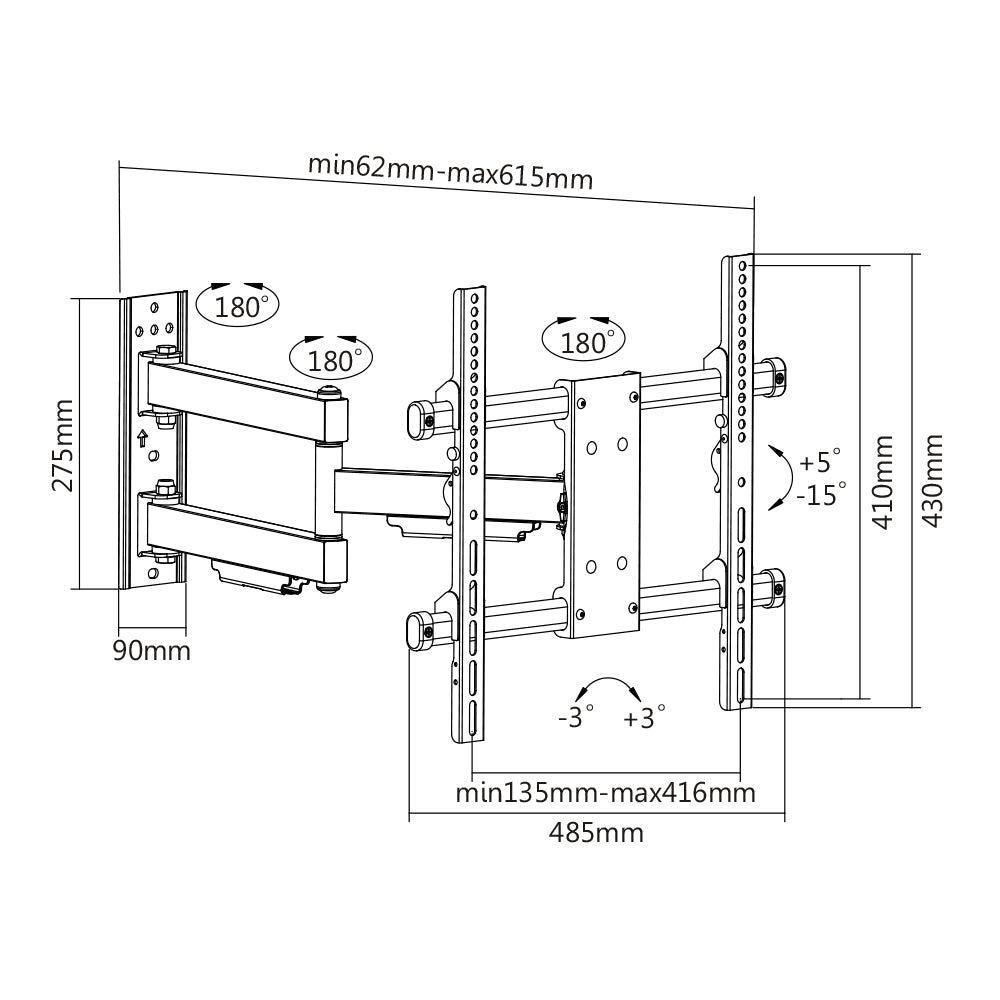

| Dimensions | 615x485x430mm (24.2"x19.1"x16.9") |
| Mounting Pattern | VESA 200x200, 400x200, 300x300, 400x400 |
| Screen Size | 32 - 55 inches [81.2 - 139.7cm] |
| Weight Capacity | 110 lbs [50kg] |

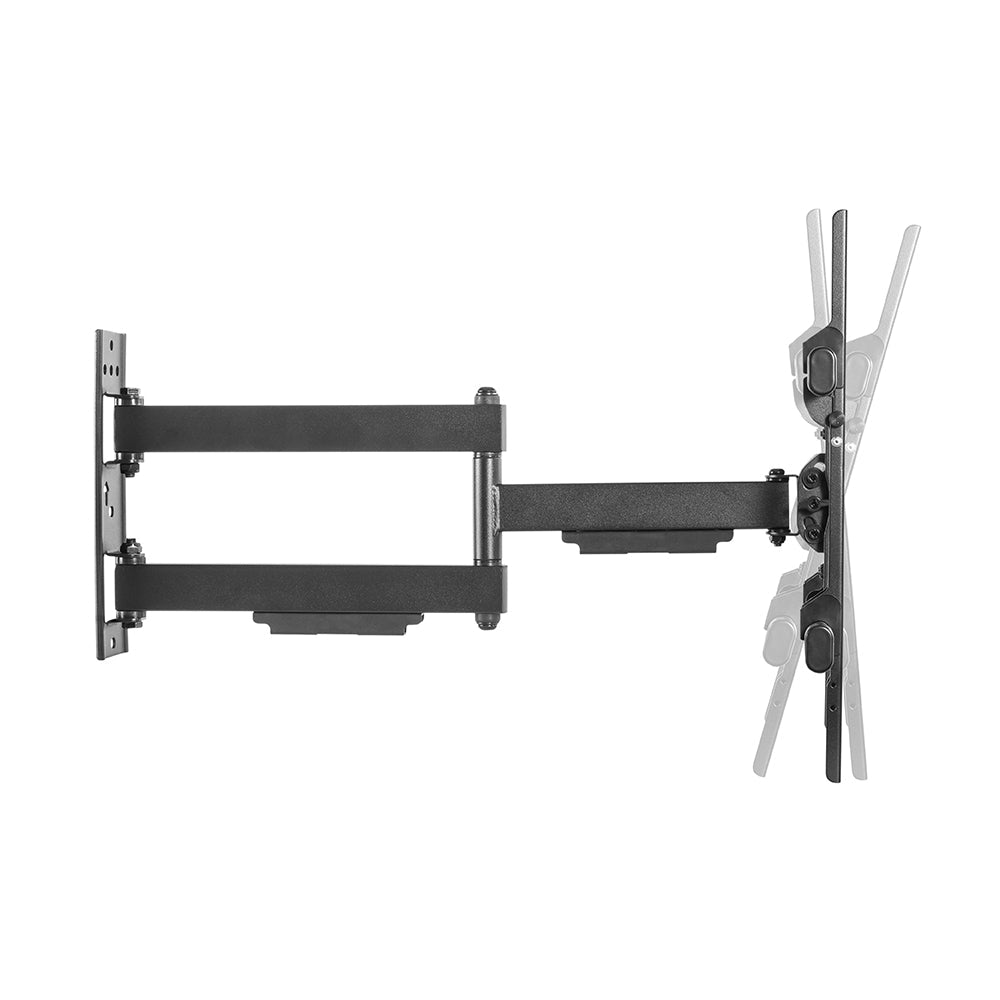

| Tilt | +5° ~ -15° |
| Swivel | +90° ~ -90° |
| Level Adjustment |
+3° ~ -3° |
| Profile | 62 to 615mm [2.4 - 24.2 inches] |
| Bubble Level | Yes |

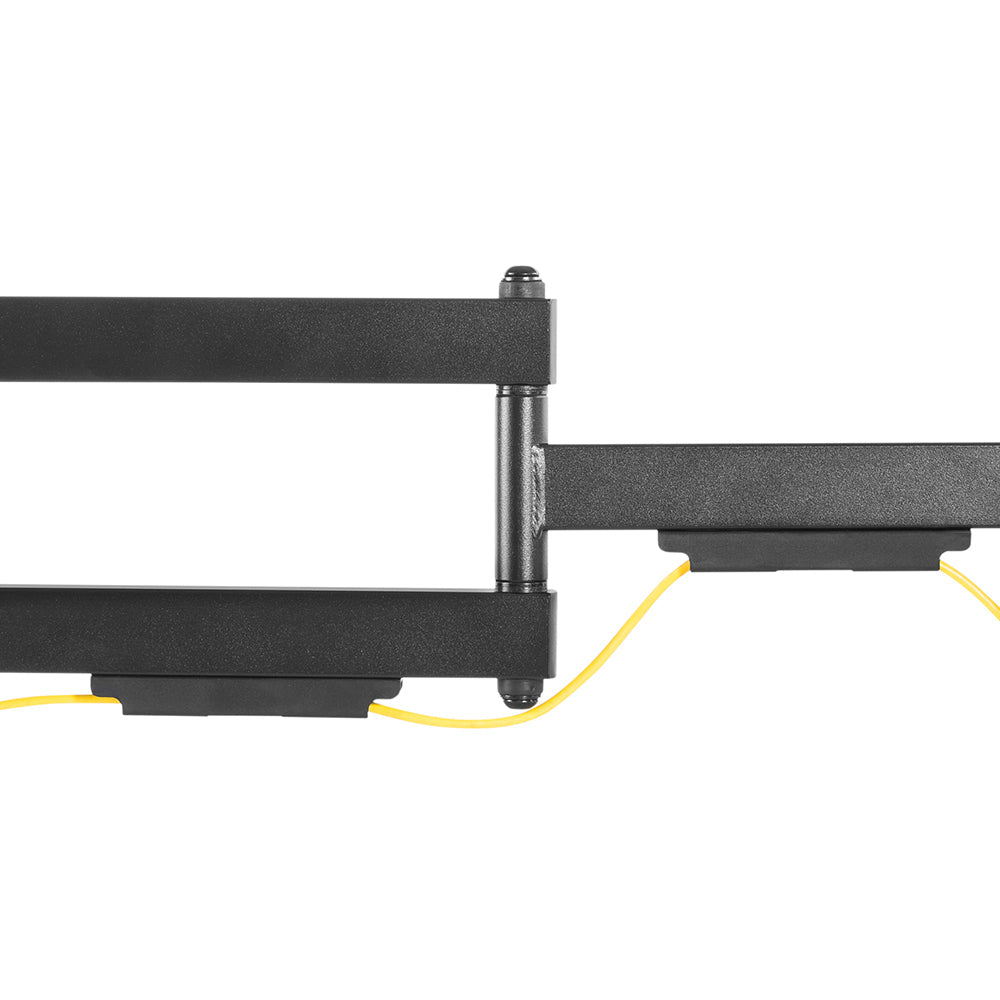

| Cable Management |
Yes |
| Freely Tilting |
Yes |
|
Fit Curved TV |
Yes |
| Anti-theft |
No |
| Motorized |
No |
| Installation | Solid Wall or Single Stud |
| Pipe Size | 40x25x1.5mm,40x20x1.5mm (1.6"x0.98"x0.059",1.6"x0.79"x0.059") |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet, Wall Plate THK=0.12" pickling sheet) |
| Approvals | |
| c(UL) |
Yes |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 4 - ST6.3x55 Screws 4 - Concrete Anchors 4 - D6 Washers |
| Product Weight | 11.5 lbs [5.2kg] |
5-YEAR LIMITED LIFETIME WARRANTY
Infinite Cables Inc. offers a 5-year warranty on all TV mounts to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| MT-750-BK | 16.0 lb |
