Description
This full motion swivel, tilt and extending TV wall mount bracket is designed to hold most 37 inch to 90 inch LCD/LED displays with a maximum VESA hole pattern of 600x400. It offers up to a 5Ā° to -15Ā° tilt, 60Ā° to -60Ā° swivel and screen levelling of 3Ā° ~ -3Ā°. It can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 200x200, 300x300, 400x200, 400x400, 600x400 |
| Screen Size | 37 - 90 inches [93.9 - 228.6cm] |
| Weight Capacity | 143 lbs [65kg] |

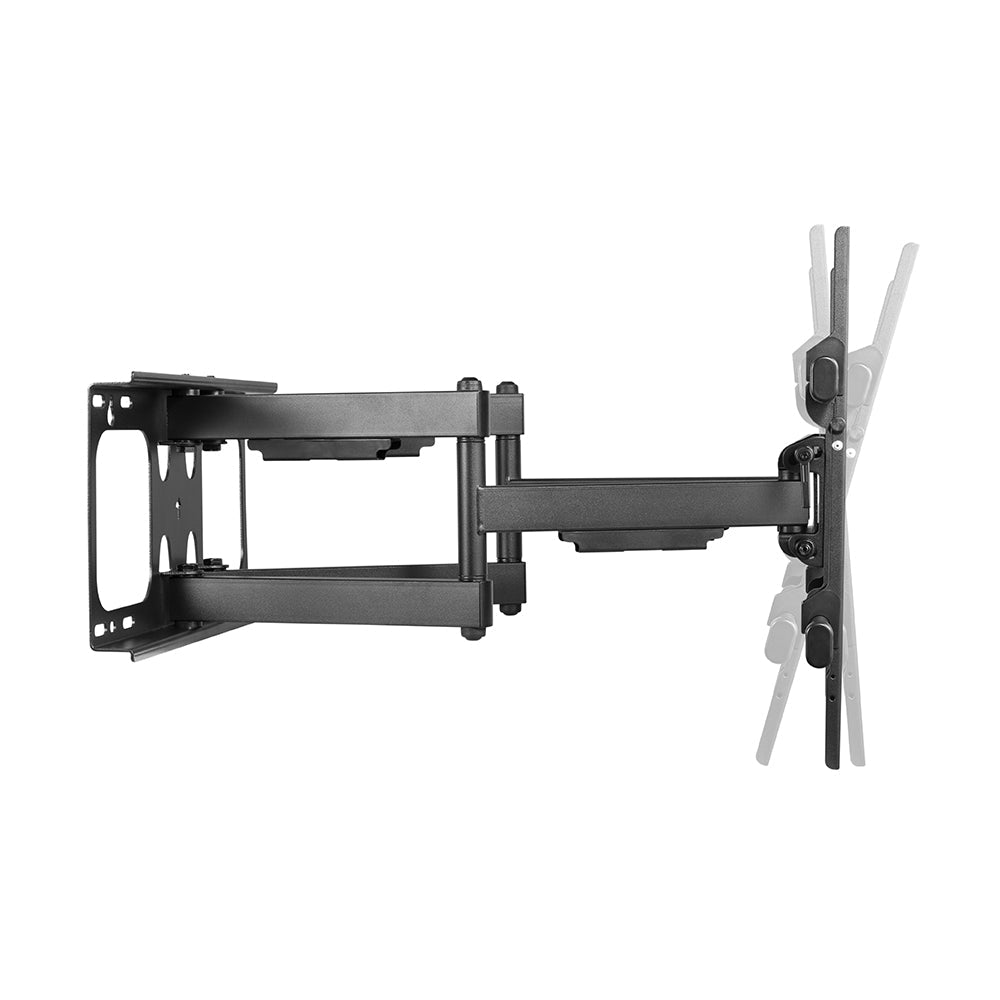

| Tilt | +5Ā° ~ -15Ā° |
| Swivel | +60Ā° ~ -60Ā° |
| Level Adjustment | +3Ā° ~ -3Ā° |

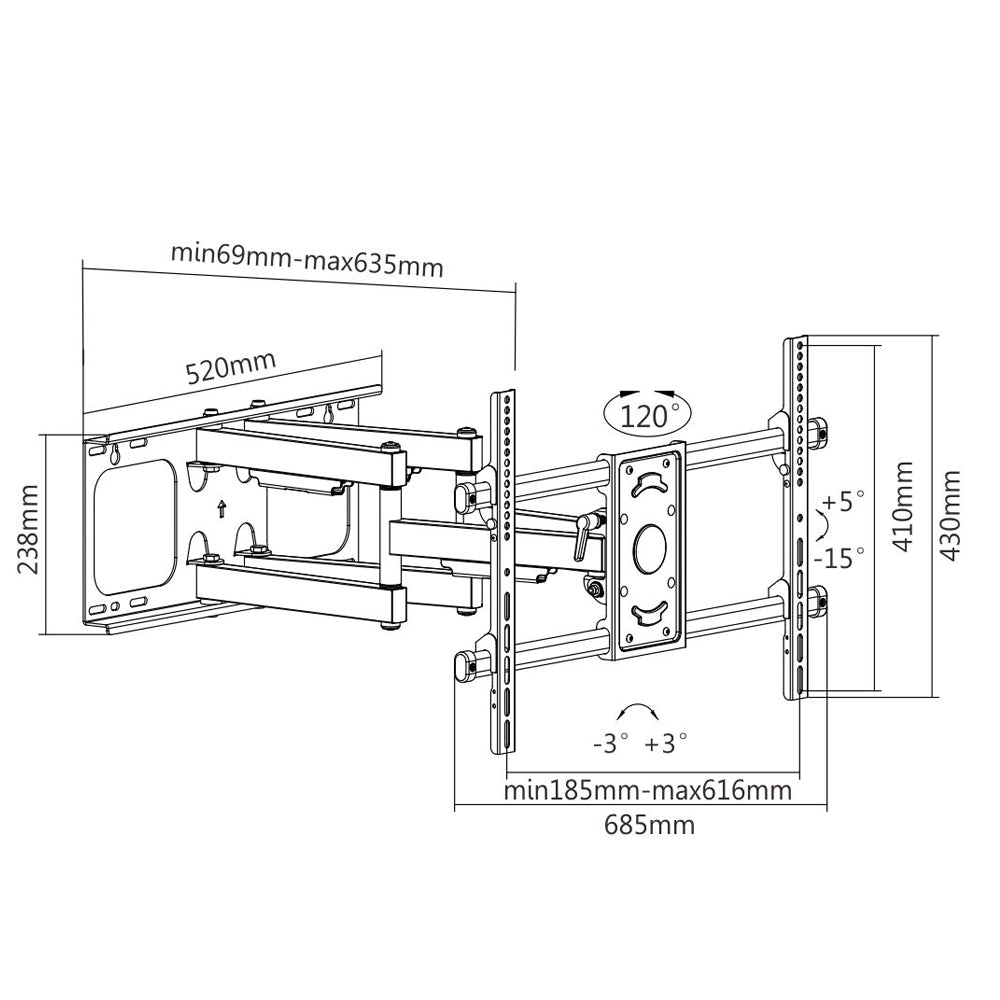

| Profile | 69 to 635mm [2.7 - 25 inches] |
| Bubble Level | Compliant |

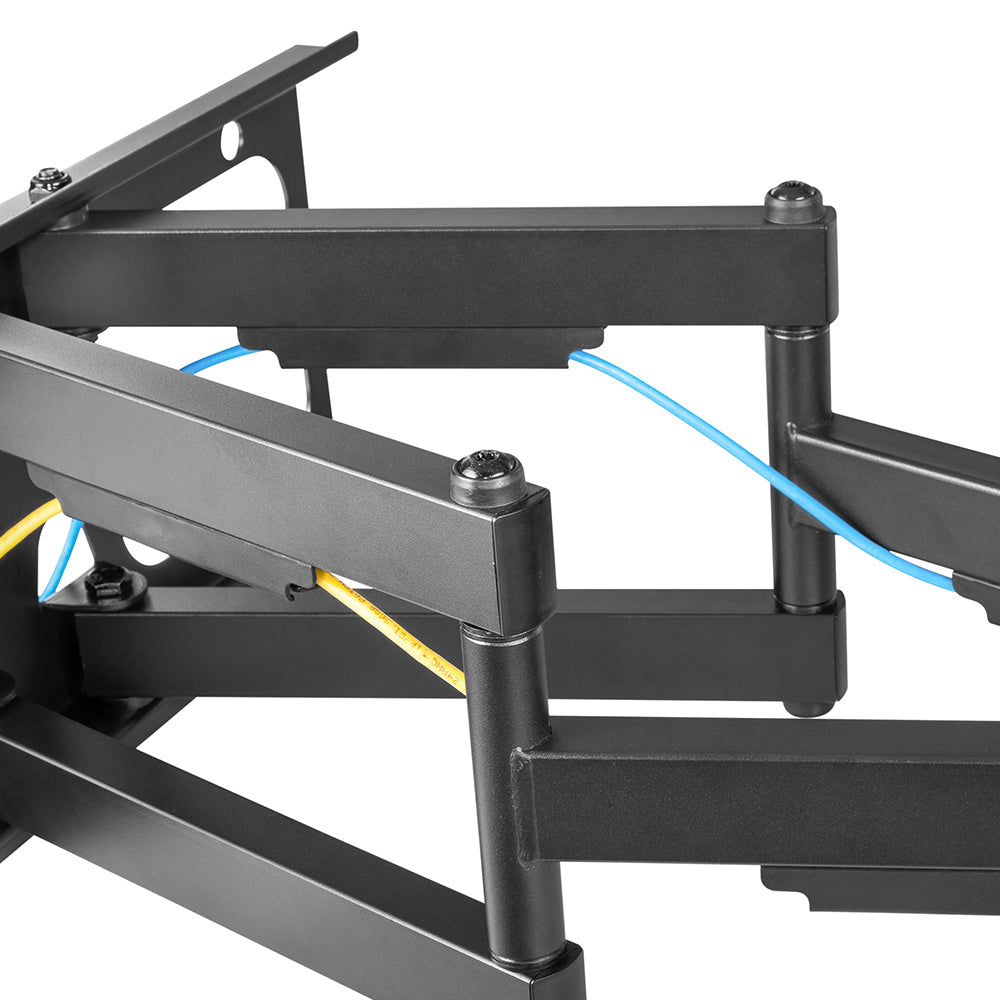

| Cable Management | Compliant |
| Freely Tilting | Compliant |
| Curved TV Available | Compliant |
| Anti-theft | No |
| Motorized | No |
| Installation | Solid Wall or Double Stud |
| Approvals | |
| c(UL) | Compliant |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 4 - D6 Washers |
| Package Weight | 23.3 lbs [10.6kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| MT-753-BK | 23.3 lb |
