Overview

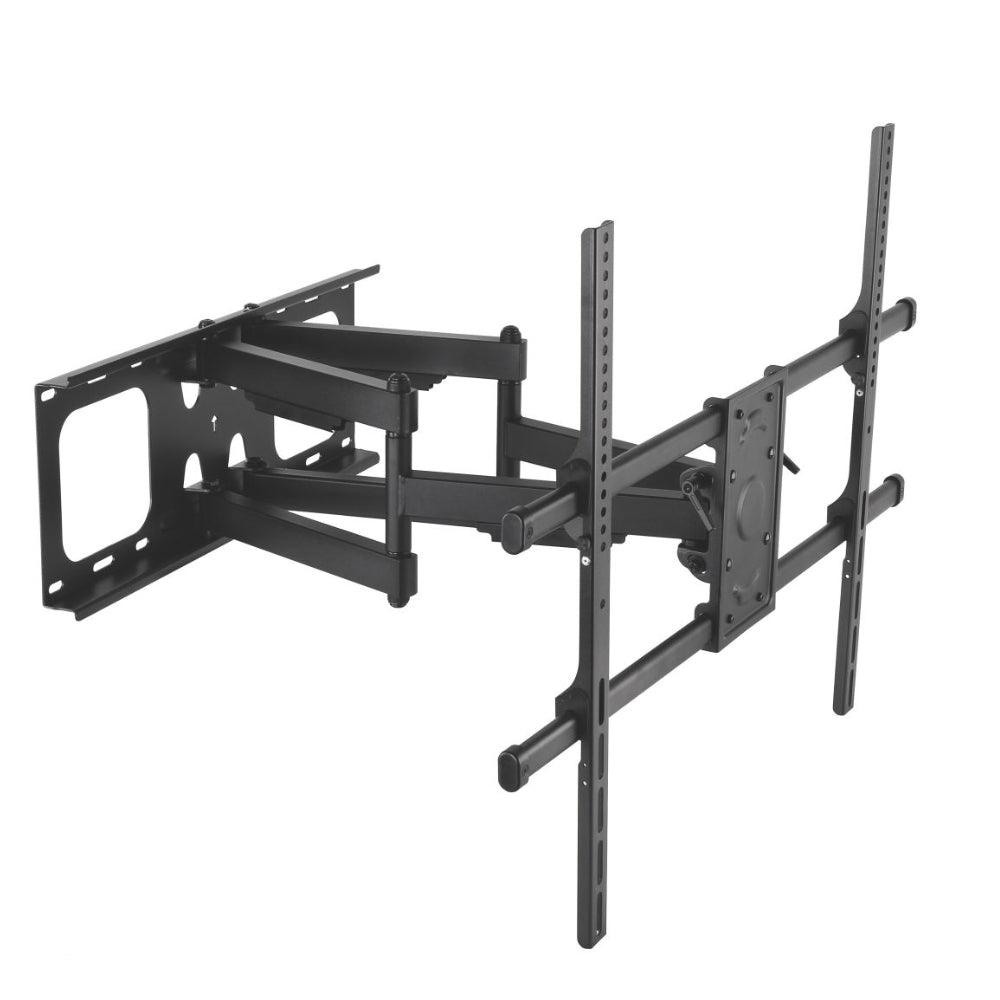

This swivel, tilting pan and extend wall mount bracket is designed to hold most 50 inch to 90 inch flat screen displays with a maximum VESA hole pattern of 600x800. It offers a up to a +5Ā° to -15Ā° tilt and a -60Ā° to +60Ā° swivel. It can be used in both residential and commercial environments.
|
Full Motion Makes any Seat, the Best SeatThis full motion TV mount bracket has swiveling arms and free-tilting design to give you maximum viewing flexibility and multiple viewing angles. It can be pulled out from the wall (635mm extension) and angled towards a separate viewing area, with a quick lock and release system to keep the TV in place with no tools required. Save Space and Keep Everything OrganizedThe heavy-duty steel constructed mount provides a solid hold for even the largest TVs. The mount also features built-in level adjustment to ensures perfect positioning and cable management to keep everything organized. The Ideal TV Mount for Many PossibilitiesThis TV mount offers a wide VESA spacing to accommodate larger TVs from 50 inch and up to 90 inch flat and curved displays. It can also be used on wood, masonry or concrete construction.   |

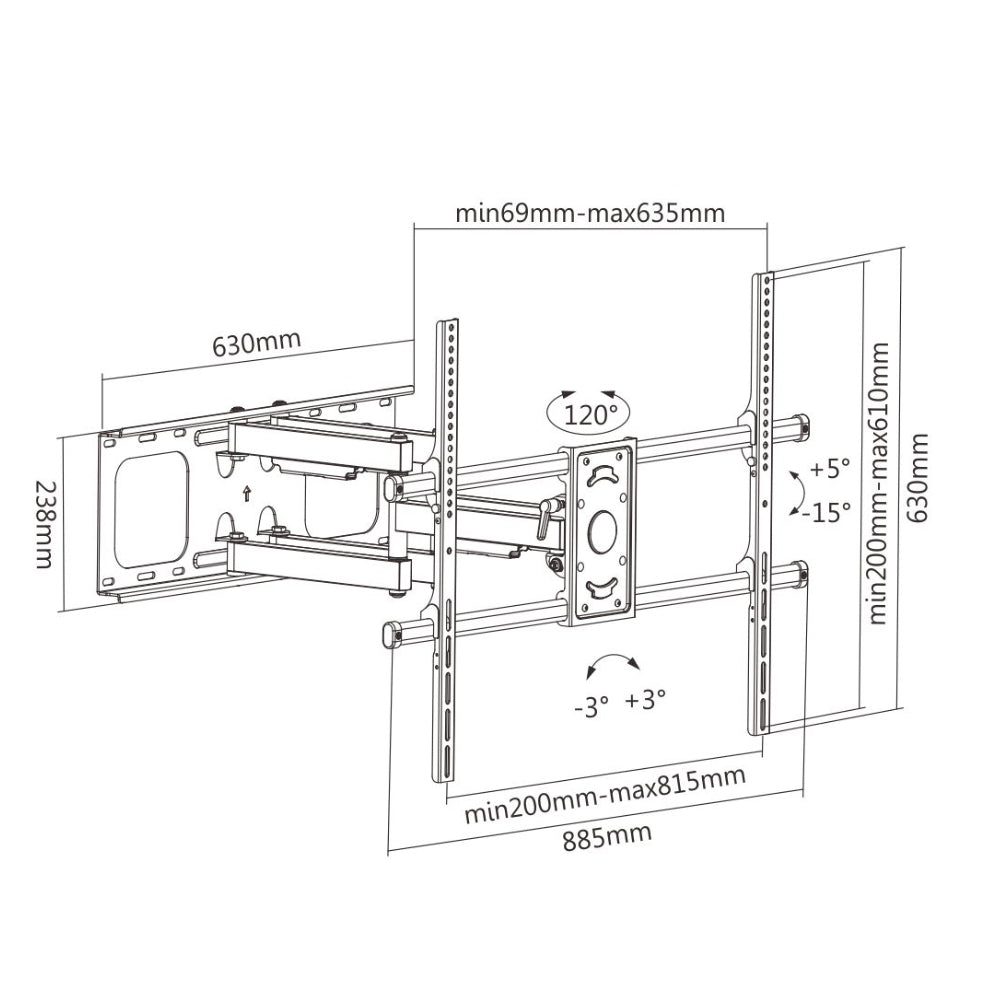

Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,800x600 |
| Screen Size | 50 - 90 inches [127 - 228cm] |
| Weight Capacity | 165 lbs [75kg] |
| Tilt | -15Ā° ~ +10Ā° |
| Swivel | -60Ā° ~ +60Ā° |
| Profile | 2.7 - 25 inches [69 - 635mm] |
| Level Adjustment | -3Ā° ~ +3Ā° |
| Screen Freely Tilting |
No |
| Panel Type |
Detachable Panel |
| Wall Plate Type |
Fixed Wall Plate |
| Cable Management |
Yes |
| Anti-theft |
No |
| Bubble Level |
Hook-on Bubble Level(Included in Components Package) |
| Installation | Double Stud(406mm/450mm/600mm) or Solid Wall |
| Approvals | |
| RoHS | Compliant |
| Reach | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 4 - D6 Washers |
| Product Weight | 26.05lbs [11.8kg] |
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| MT-755-BK | 28.0 lb |
