Description
Overview

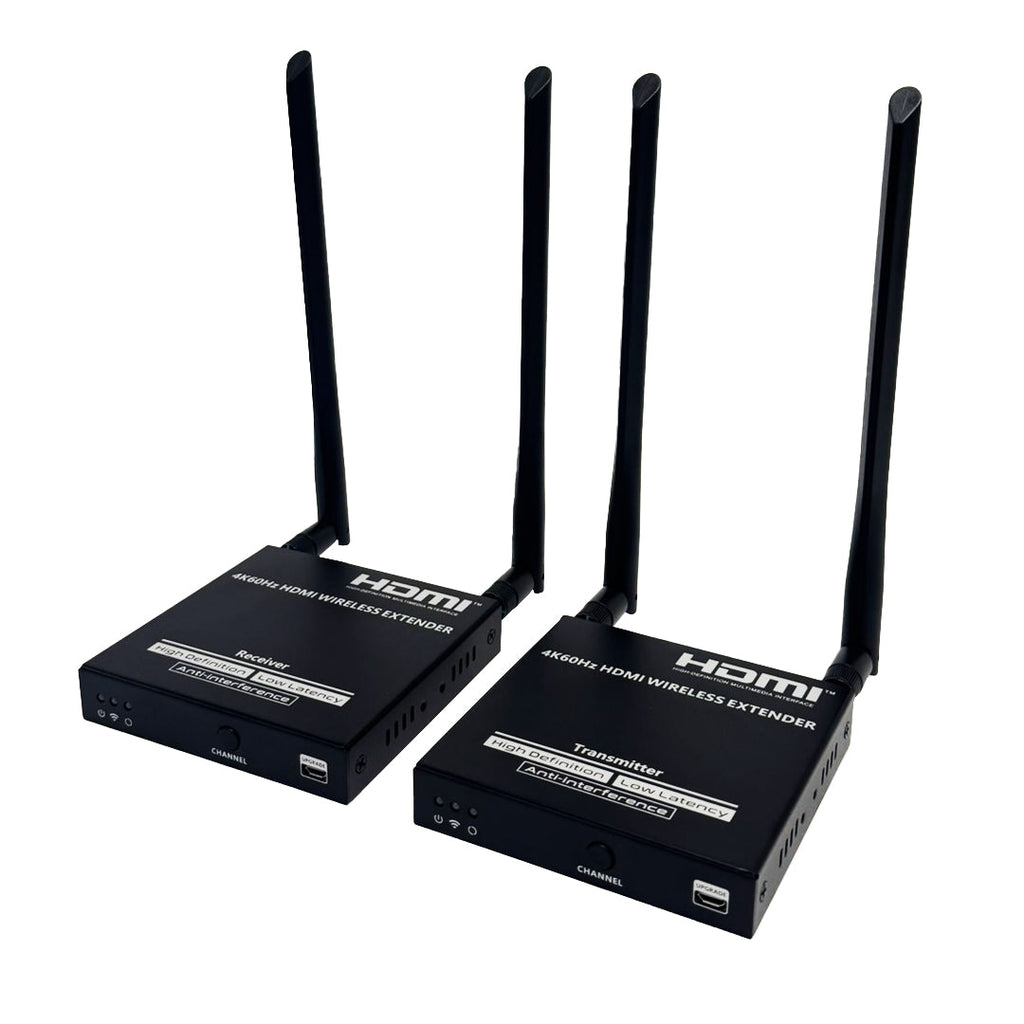

This high-performance wireless HDMI2.0 extender that delivers 4K@60Hz UHD video transmission with ultra-low latency and crisp image quality. Equipped with ipcolor STREAM technology, it ensures reliable, high-definition streaming over the 5G wireless frequency band, offering excellent anti-interference capability and secure signal transmission.
Designed to simplify complex wiring environments, it supports 1-to-1 wireless transmission up to 50 meters, even through walls. This makes it an ideal solution for a wide range of scenarios including video conferencing, home theater setups, multimedia classrooms, and corporate presentations.
Noteļ¼
- Transmission distances may vary depending on the environment.
- Signals may be reduced or completely lost by solid structures such as walls, bricks, and glass.
-
The surrounding wireless signal may cause certain interference to the transmission, and the channel can be switched to reduce the interference.
Features
- Adopting ipcolor STREAM technology can realize high definition and low-latency transmission
- Support up to 4096x2160@60Hz resolution, backward compatible
- Support wireless transmission up to 50 meters (line of sight)
- The transmitter supports HDMI loop out
- In case of multiple sets of products in the same area, support SSID pairing and channel switching to avoid interference.
- Support IR passback
- Support 5G wireless frequency bands, strong anti-interference
- Support firmware upgrade via Micro USB port
- Supports stable 24/7 operation
Connection
Applications
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -20ā ~ 60ā |
| Storage Temperature | -30ā ~ 70ā |
| Operating Humidity |
0 to 90%RH (No Condensation) |
| Dimensions (L x W x H) | TX: 106 x 103 x 20.6 mm RX: 106 x 103 x 20.6 mm |
| Power | |

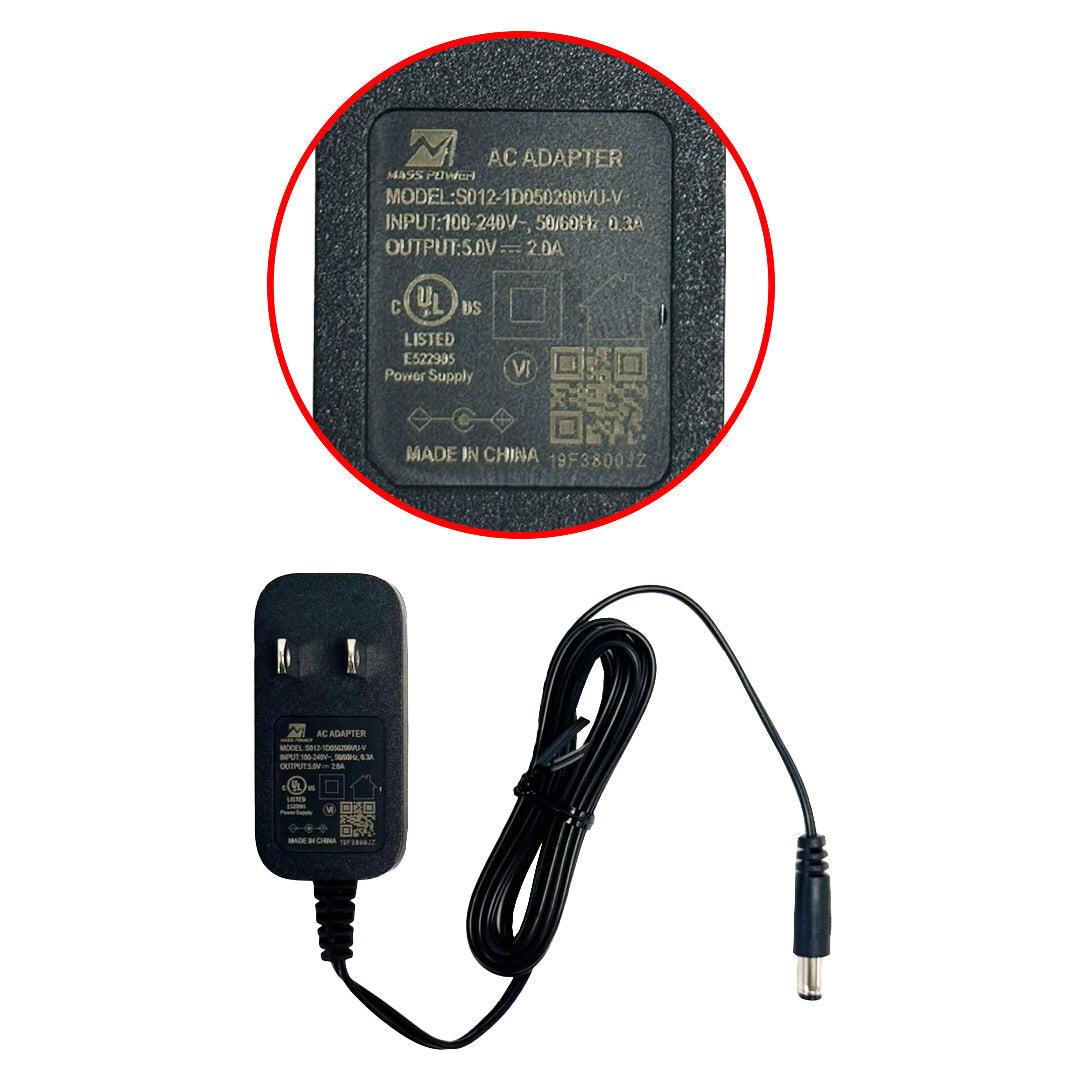

| Power Supply | 5V/2A DC Power Adapter |
| Power Consumption | TX ā¤ 5W, RX ā¤ 4W |
| Connector(s) | |

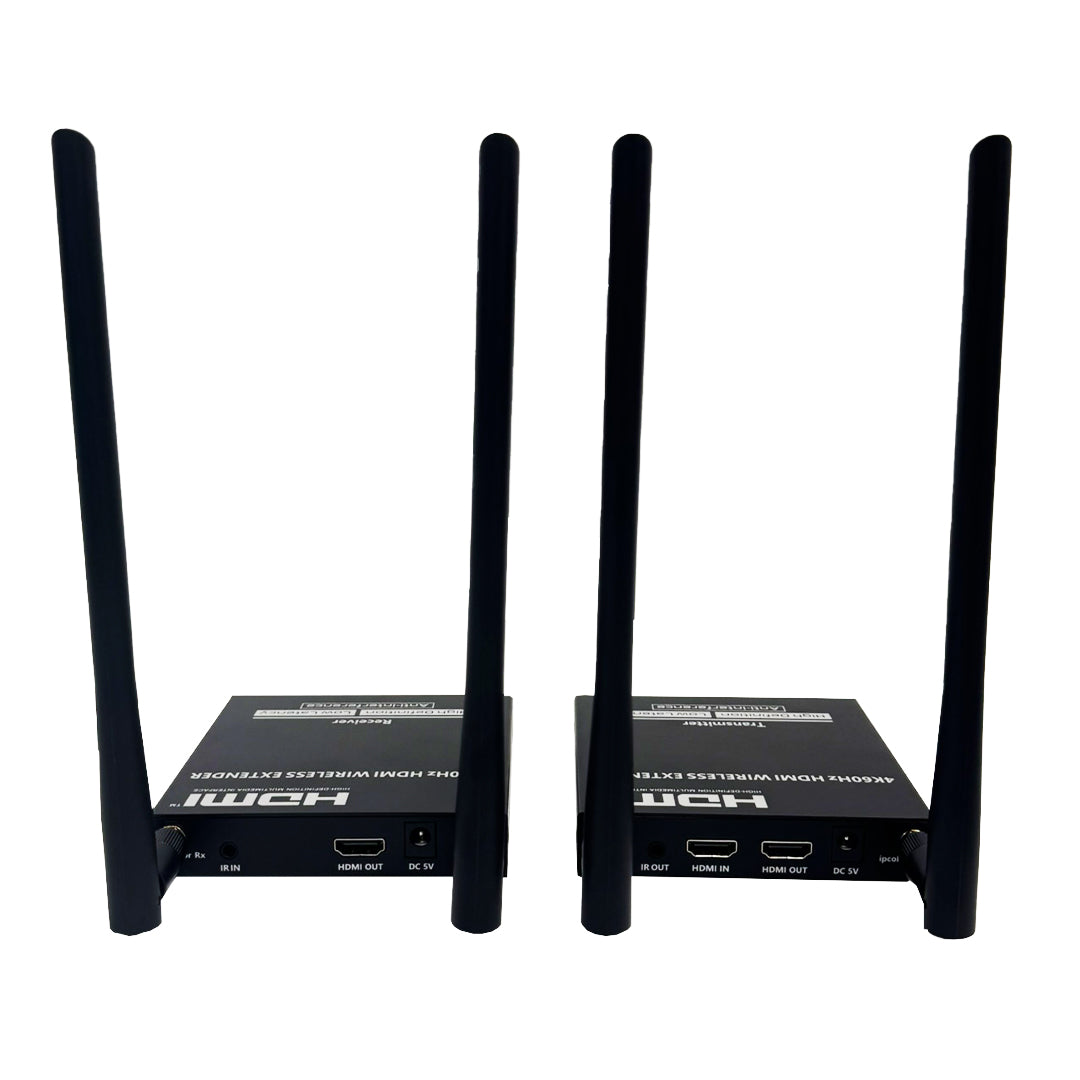

| Transmitter | HDMI Input Female, HDMI Output Female, 4 x RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
| Performance | |
| HDMI Version | HDMI 2.0 |
| HDCP Version | HDCP 1.4/HDCP 2.2 |
| Input Video Format | 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920x1200, 2560x1440 |
| Maximum Transfer Rate |
18Gbps |
| Input and Output TMDS Signal | 0.7~1.2Vp-pļ¼TMDSļ¼ |
| Input and Output DDC Signal |
5Vp-pļ¼TTLļ¼ |
| Wi-Fi Frequency Bands |
5.18~5.24 GHz |
| Transmission Distance | ā¤ 50m |
| Latency | 4K@60Hz: 130~220ms 1080P@60Hz: 70~120ms |
| Connection Types | One-to-one |
| SSID Pairing | Supported |
| ESD Protection | 1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2 Lightning protection, Surge protection |
| Infrared Frequency | 20~60kHz |
| Receiving Range | ā¤ 5m |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Package Weight | 2.65 lbs |
| Contents | |
| Included in Package | 1 - Transmitter Unit |
| 1 - Receiver Unit | |
| 1 - IR Receiver Extension Cable | |
| 1 - IR Blaster Extension Cable | |
| 4 - Antenna | |
| 2 - DC5V/2A DC Power Adapter | |
| 1 - Manual | |
| 4 - Mounting Ears | |
| 10 - Screw | |
| 2 - Grounding Screw | |
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| VE-HDWL-201 | 2.65 lb |
