Description
This 4 port HDMI video extender allows you to extend a maximum of four 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4K@30Hz.
Application
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | Transmitter: 210W x 83D x 18H mm Receiver: 79.5W x 69D x 16.5H mm |
| Operating Temperature | 0 ~ 40ā / 32 ~ 104āF |
| Storage Temperature | -20 ~ -60ā / -4 ~ 140āF |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power | |
| Input Voltage | 125V |

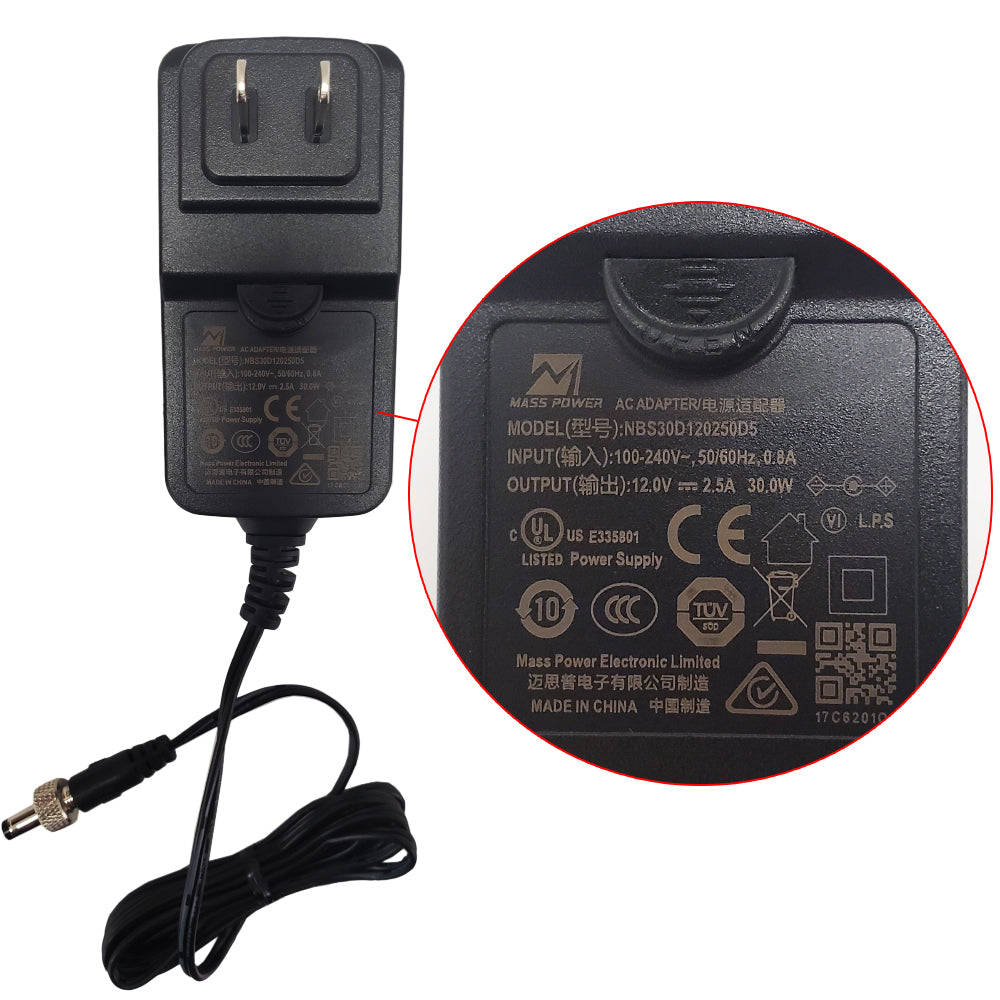

| Power Supply | 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS certificated) |
| Power Consumption | 11W |
| Connector(s) | |

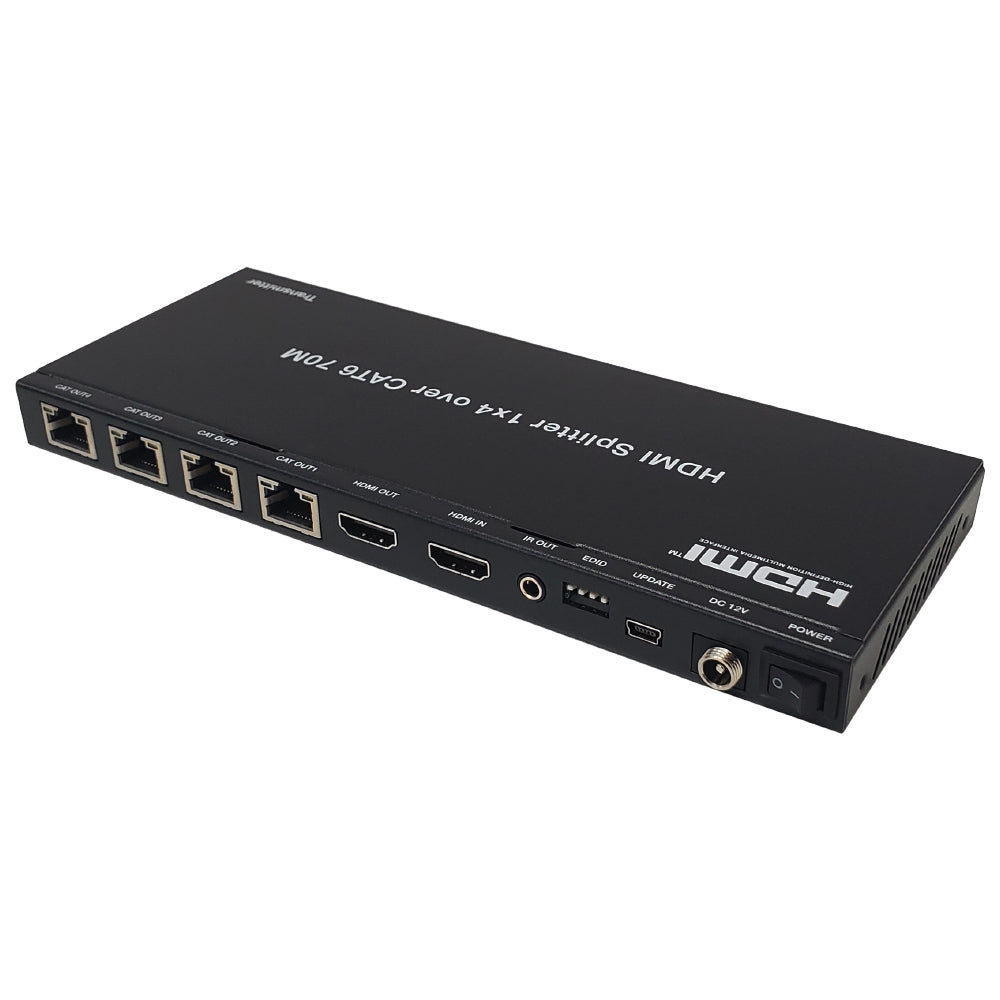

| Transmitter | Input: 1x HDMI IN [Type A, 19-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 4x CAT OUT [RJ45] Controls: 1x IR Out [3.5mm Stereo Mini-jack] 1x EDID DIP Switch [4-pin] 1x Update [Micro USB] |

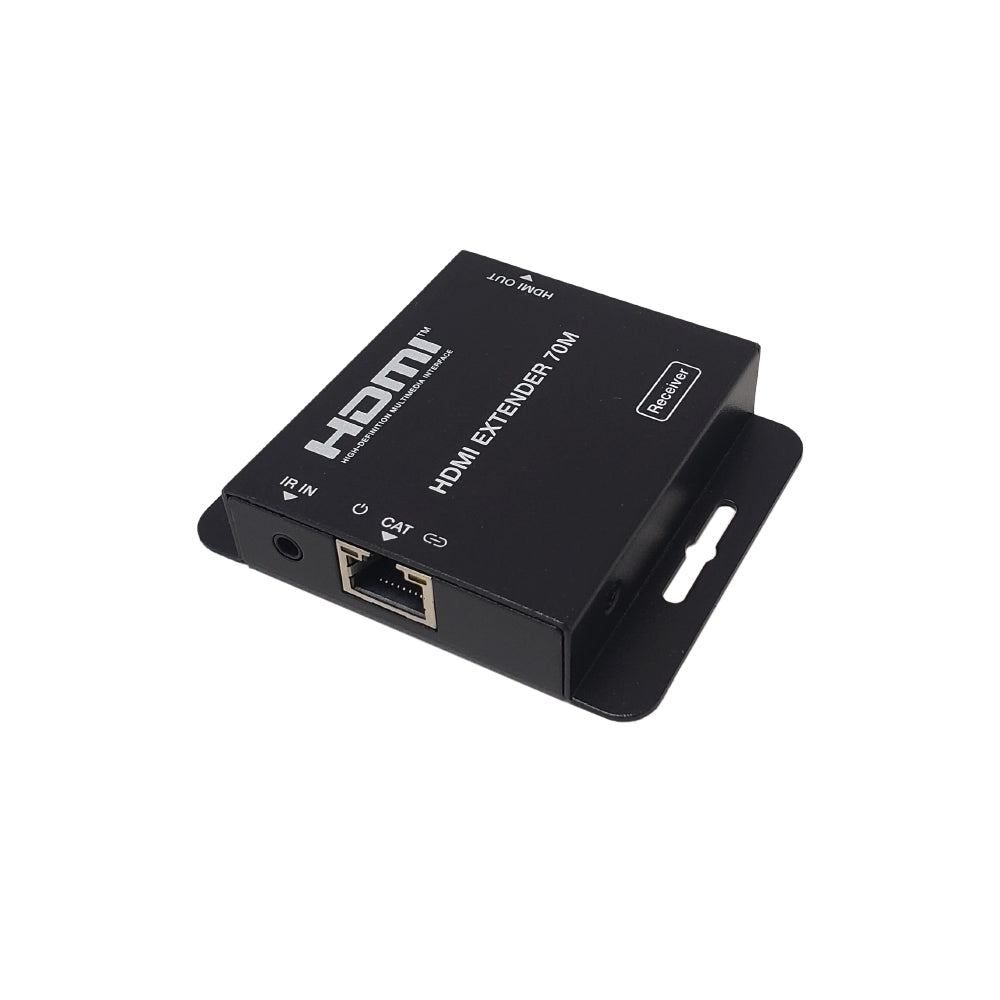

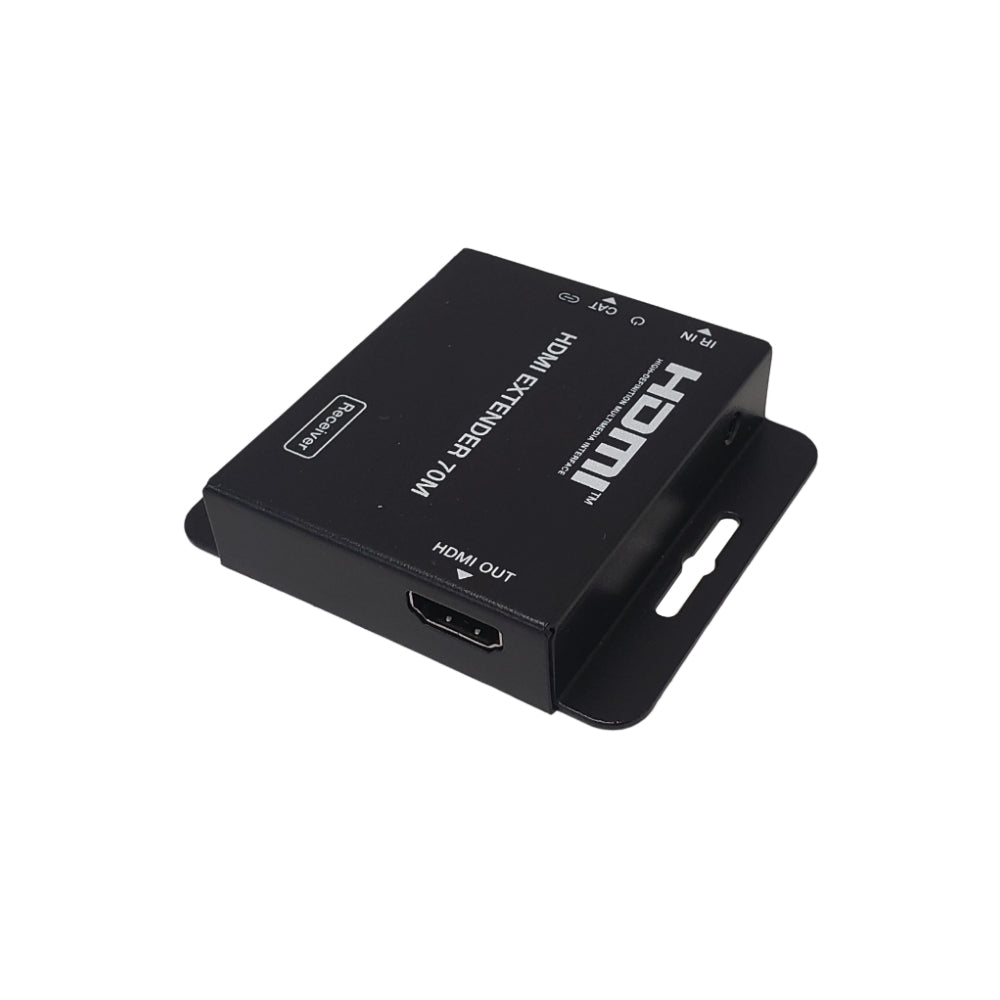

| Receiver | Input: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female |
| Performance | |
| Video Resolution | 480i ~ 1080p 50/60Hz, 4Kx2K@30Hz (4:4:4) |
| Video Bandwidth | 297MHz/10.2Gbps |
| Transmission Range | 1080p@60Hz - Up to 70m (230ft)
4K@30Hz - Up to 40m (131ft) |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) |
| Color Space | RGB, YCbCr4:4:4/4:2:2. YUV4:2:0 |
| Audio Formats | LPCM 7.1CH, Dolby True HD, and DTS-HD Master Autio |
| ESD Protection | Human body model - Ā±8kV (Air-gap discharge) & Ā±4kV (Contact discharge) |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Approvals | |
| Power Adapter | c(UL)us, CE, YUV, CCC |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.27 lbs [0.57kg] |
| Contents | |
| Included in Package | 1 - HDMI Splitter 4 - CAT Receiver 1 - IR Blaster Cable (1.5m) 1 - IR Receiver Cable (1.5m) 2 - Mounting Ears 1 - 12V/2.5A DC Locking Power Adapter 8 - Machine Screw (KM3*4) 1 - User Manual |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| VE-HDMI-008B | 3.2 lb |
