Video ExtendersSKU: VE-HDMI-012B
Price:
$441.63 USD
Stock:
In stock

Description

This 8 port HDMI video extender allows you to extend a maximum of eight 3D/HD displays up to 131ft (40 meters) away from your source device over Cat6 cables at a resolution of 4Kx2K@30Hz. It also has a single HDMI output for a local monitor.
*Please note that the transmitter must be placed in a well ventilated area to avoid overheating.

Physical Characteristics
Color Black
Housing Metal Enclosure
Dimensions Transmitter: 295 x 82 x 18mm (W x D x H)
Receiver: 79.5 x 69 x 16.5mm (W x D x H)
Operating Temperature 0C to +40C (+32F to +104F)
Storage Temperature -20C to +60C (+-4F to +140F)
Relative Humidity 20~90% RH (non-condensing)
Power
Power Supply 12V/2.5A DC Power (US/EU Standards, CE/FCC/RoHS Certified)
Power Consumption 19.2W
Connector(s)

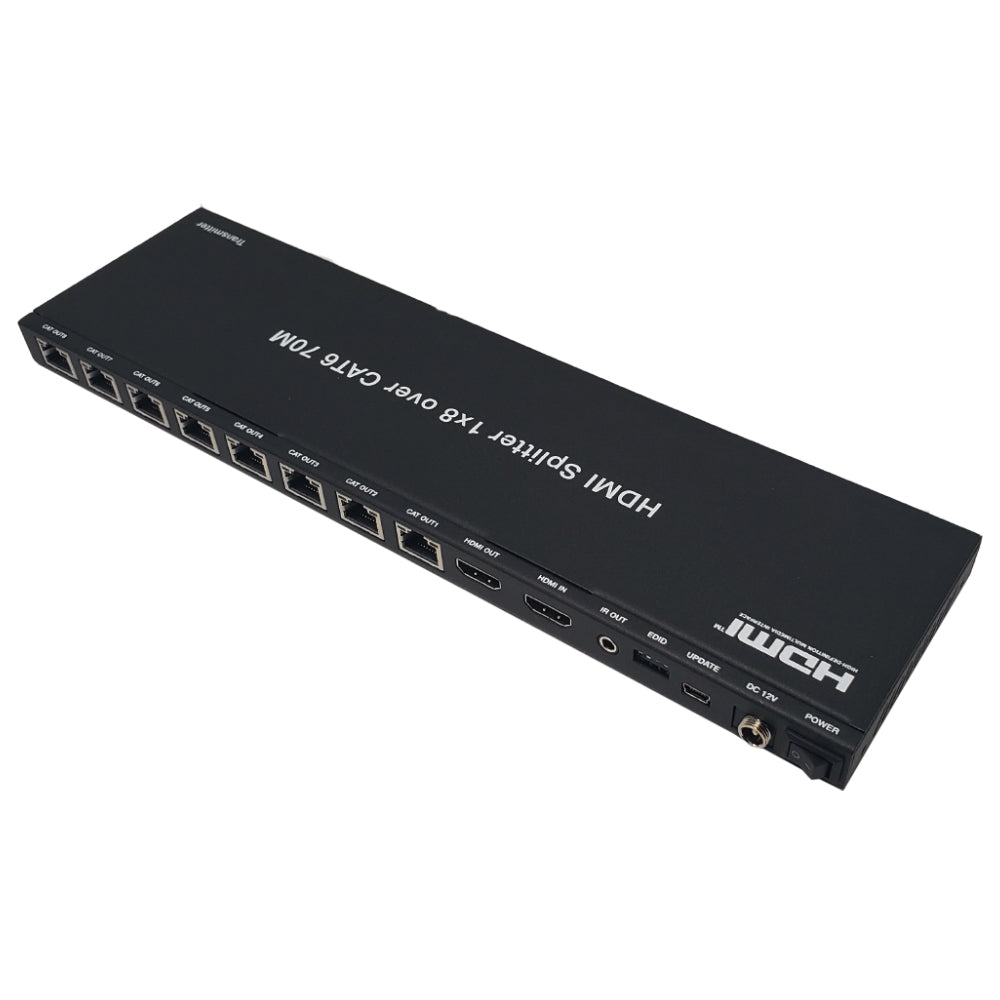

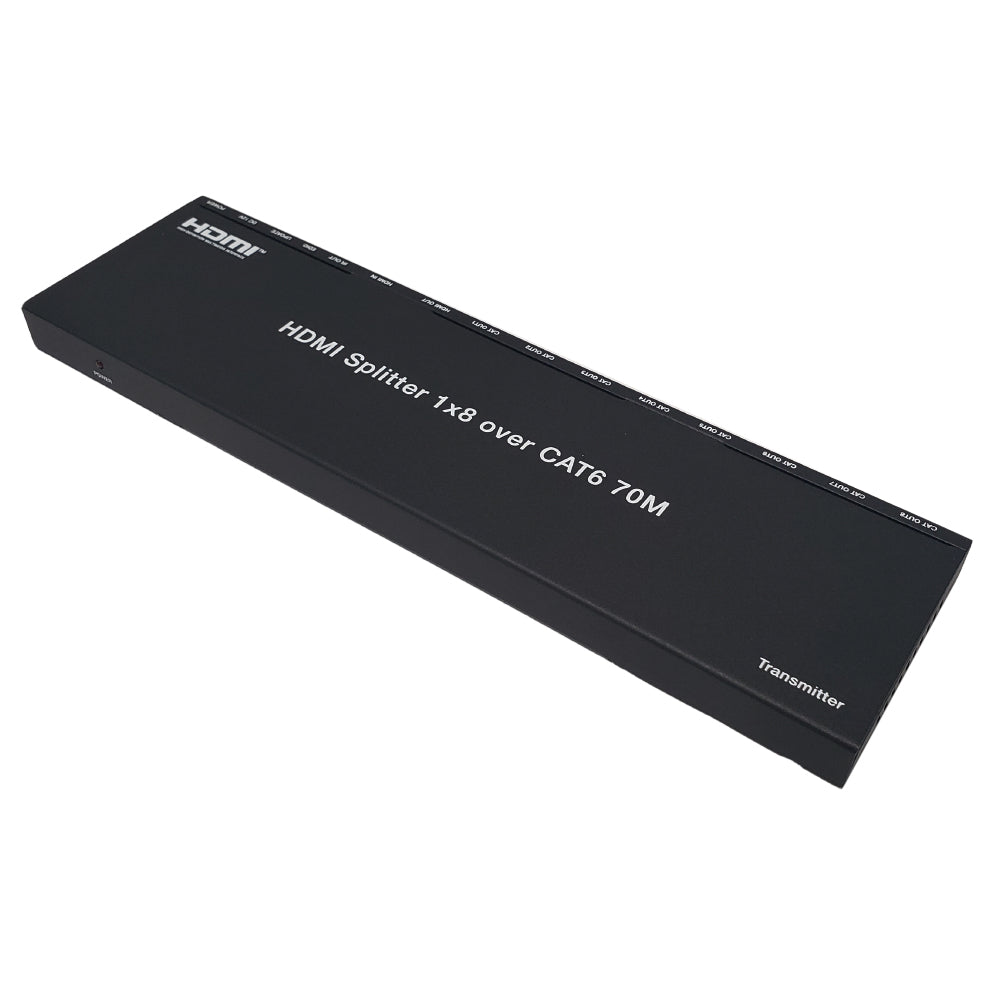

Transmitter x 1 1 - HDMI Female Input
1 - HDMI Female Output
8 -RJ45 Female Output
1 - IR Output
1 - EDID Dip Switch
1 - Micro USB Update Port

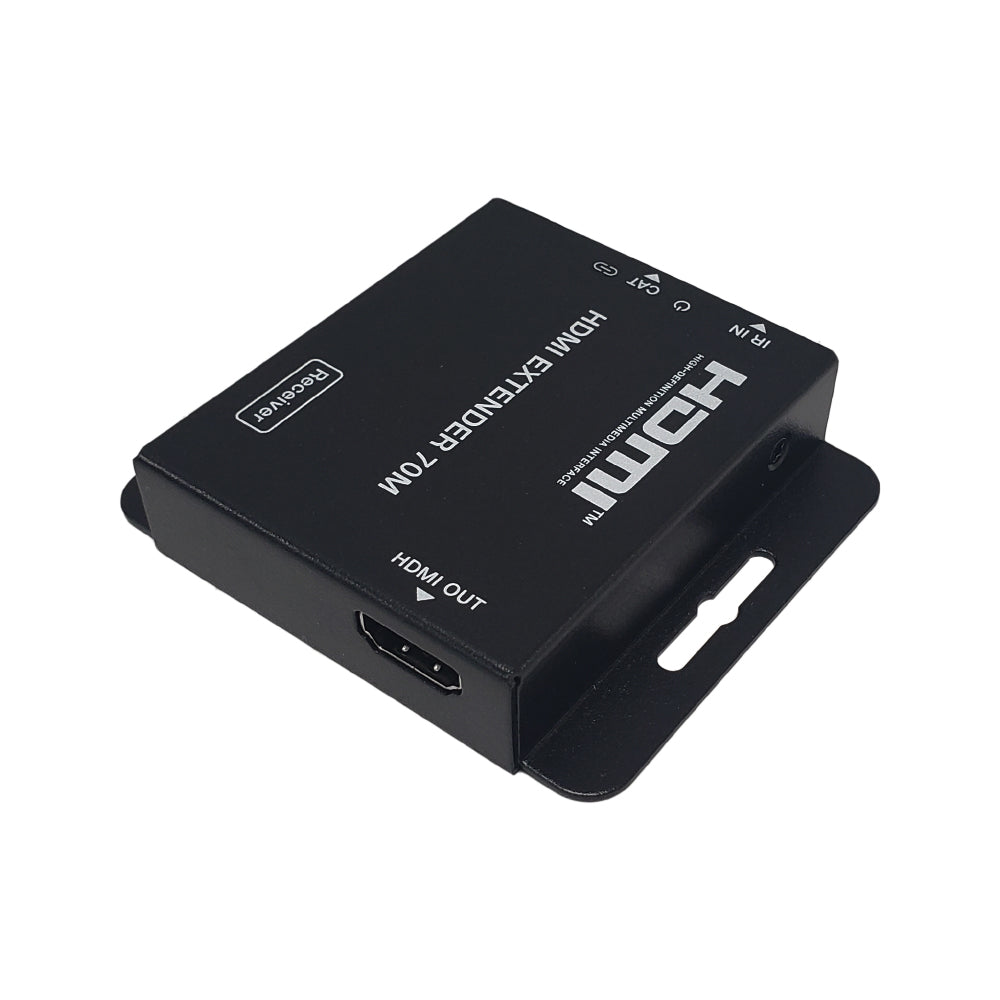

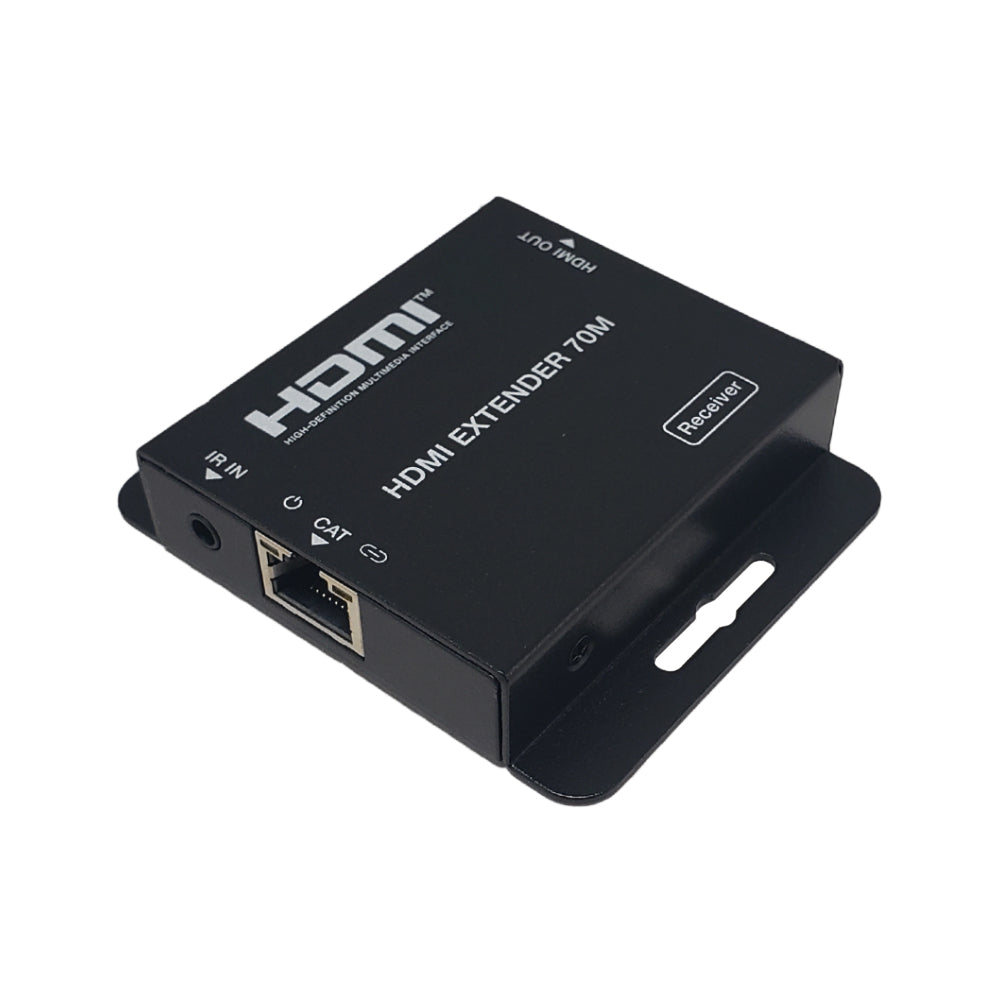

Receiver x 8
 1 - HDMI Female Output
1 - RJ45 Female Input
1 - IR Input
Performance
Video Bandwidth 297MHz/10.2Gbps
Video Resolution 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz)
Color Space RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
Audio Formats LCPM 7.1CH, Dolby True HD and DTS-HD Master Audio
Transmission Distance 1080p@60Hz - 70m
4K@30Hz - 40m
HDMI Compliance HDMI 1.4
HDCP Compliance HDCP 1.4
Supports Advanced EDID management
12V POC function (only from transmitter to receiver)
Approvals
Power Adapter c(UL)us
Environmental
RoHS Yes
CE Yes
FCC Yes
Packaging Information
Package Quantity 1
Product Weight 5.07 lbs [2.30kg]
Contents

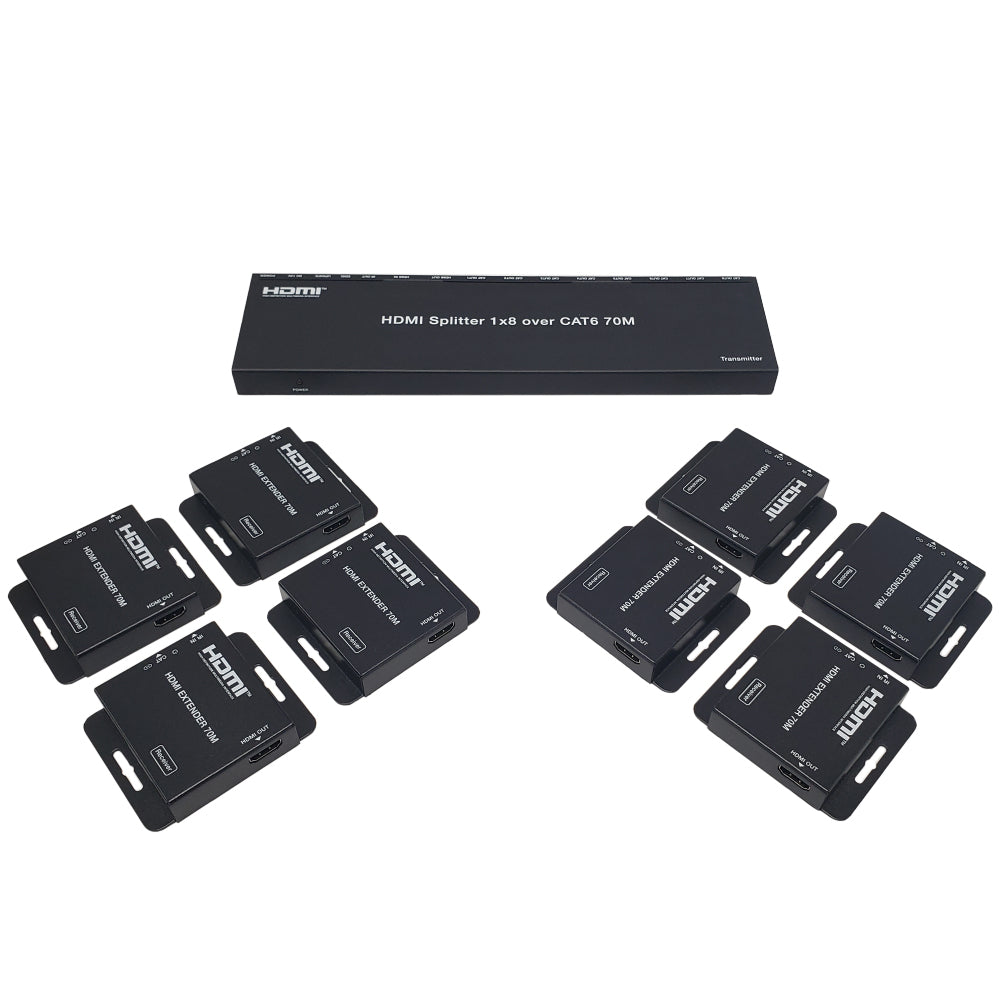

Included in Package 1 - HDMI 1x8 Splitter
8 - Receivers

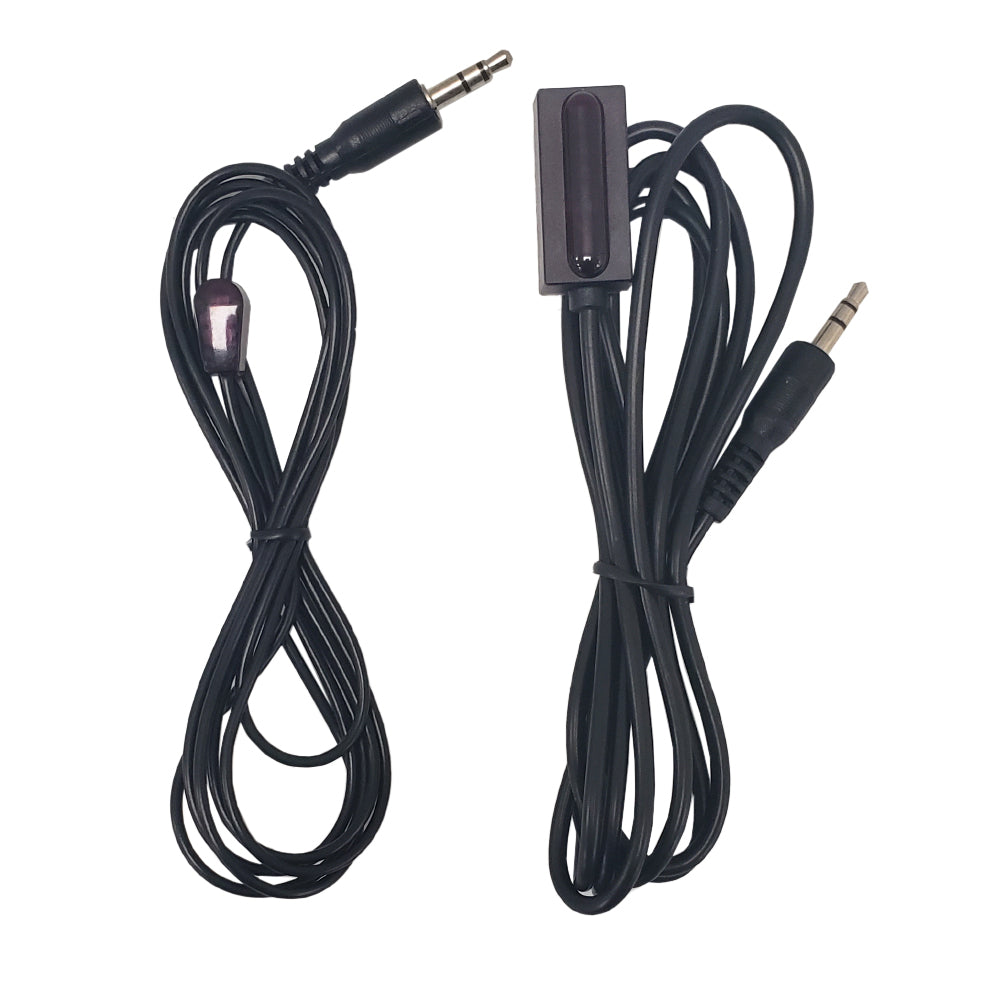

1 - IR Blaster
8 - IR Receiver
2 - Mounting Ears

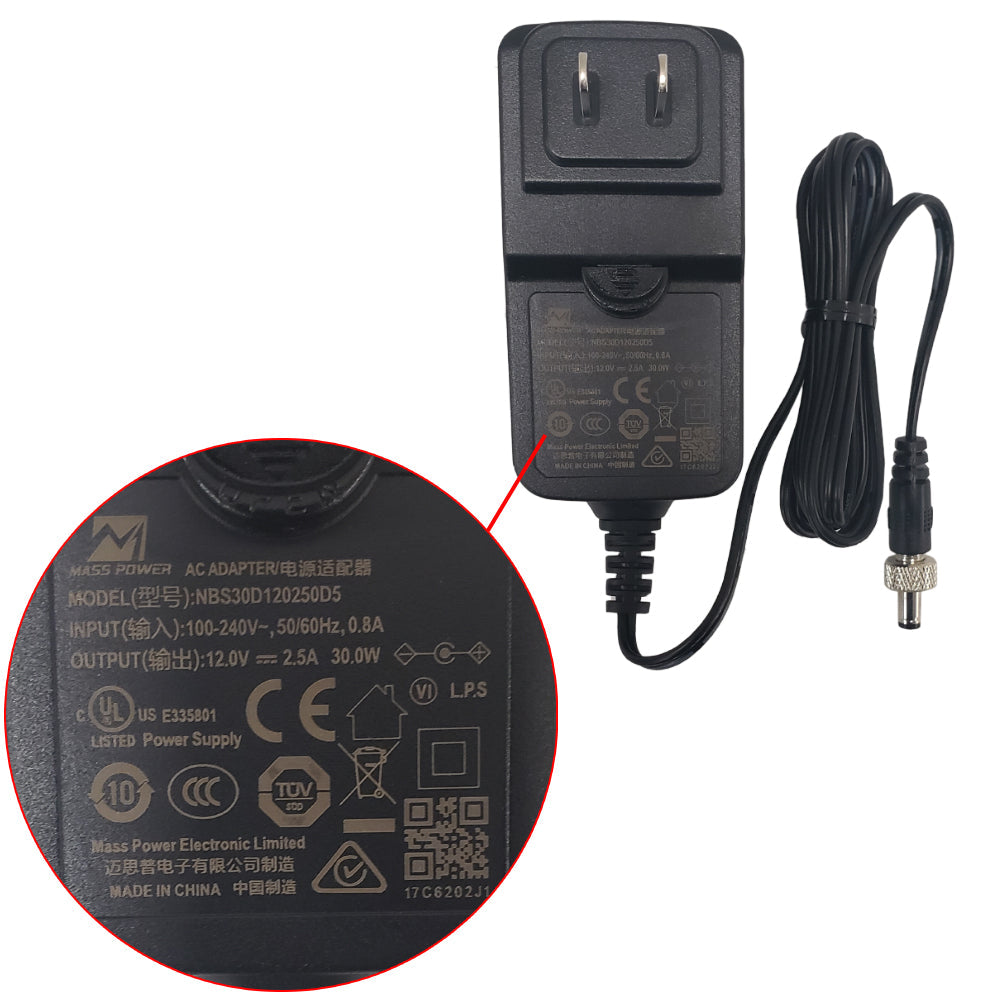

1 - 12V/2.5A DC Locking Power Adapter
8 - Machine Screws (KM3*4)
1 - User Manual

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
VE-HDMI-012B 9.5 lb
