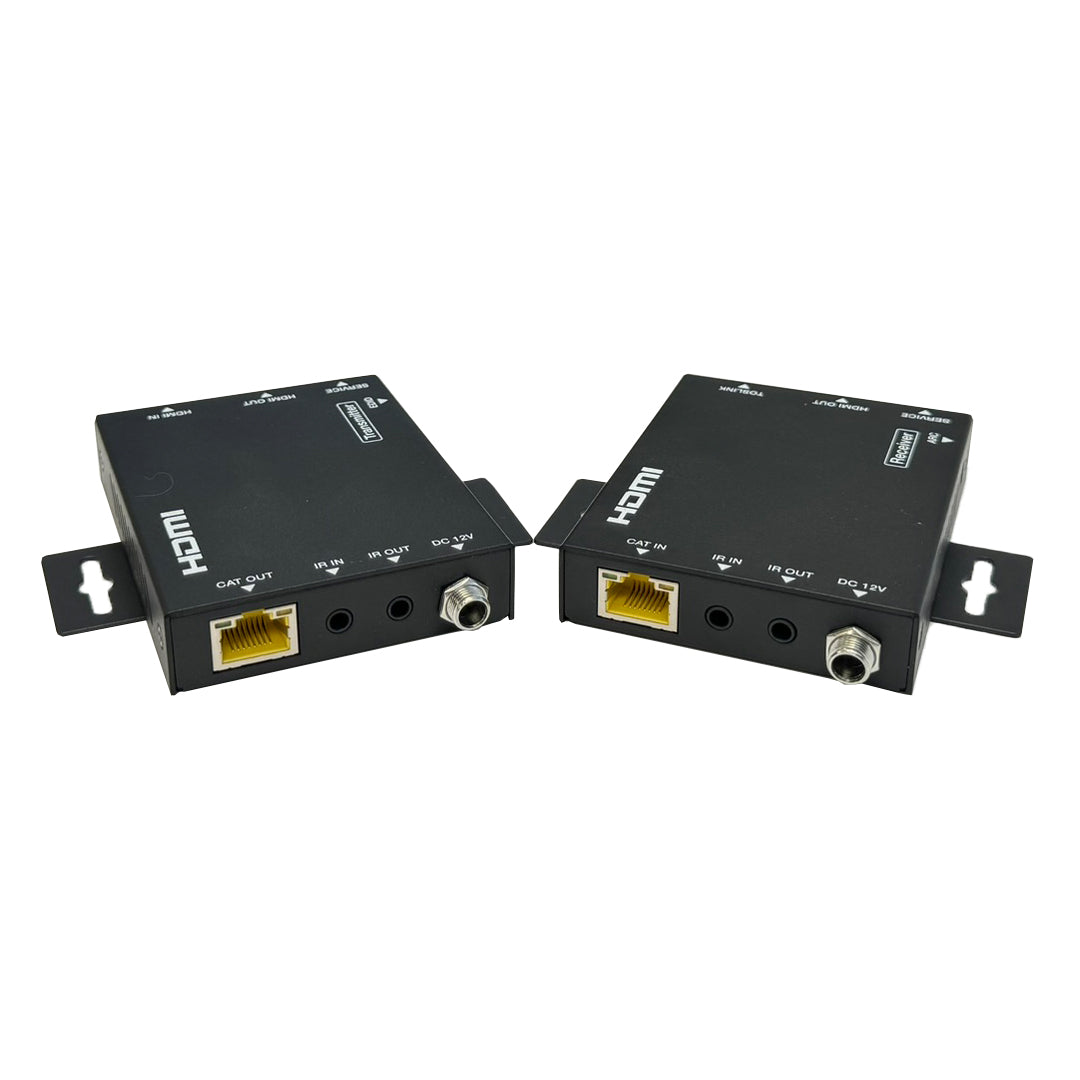

This HDMI extender allows you to extend your display up to 70m away from your source device over Cat6/6A cables at a resolution of
4K@60Hz with audio extraction and HDMI loop out.
Features:
- HDMI2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
- Colour depth: 8/10/12bit
- The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG
- Support bi-directional IR control signal pass-through
- EDID copy pass-through function between the source device and display device
- Support ARC and audio de-embedding, audio is output through the optical fiber port of the receiver
- Support bi-directional POC (Power over Cable) function
- IR Frequency 20K-60KHz
- Black Metal enclosure
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Relative Humidity | 20 ~ 90% RH (non-condensing) |
| Dimensions | Tx/Rx : 90mm x 68mm x 18mm |
| Power | |
| Power Consumption | 3.36 W Max. |
| Power Supply | DC 12 Volt, 1Amp; Support bi-directional POC function |
| Connector(s) | |

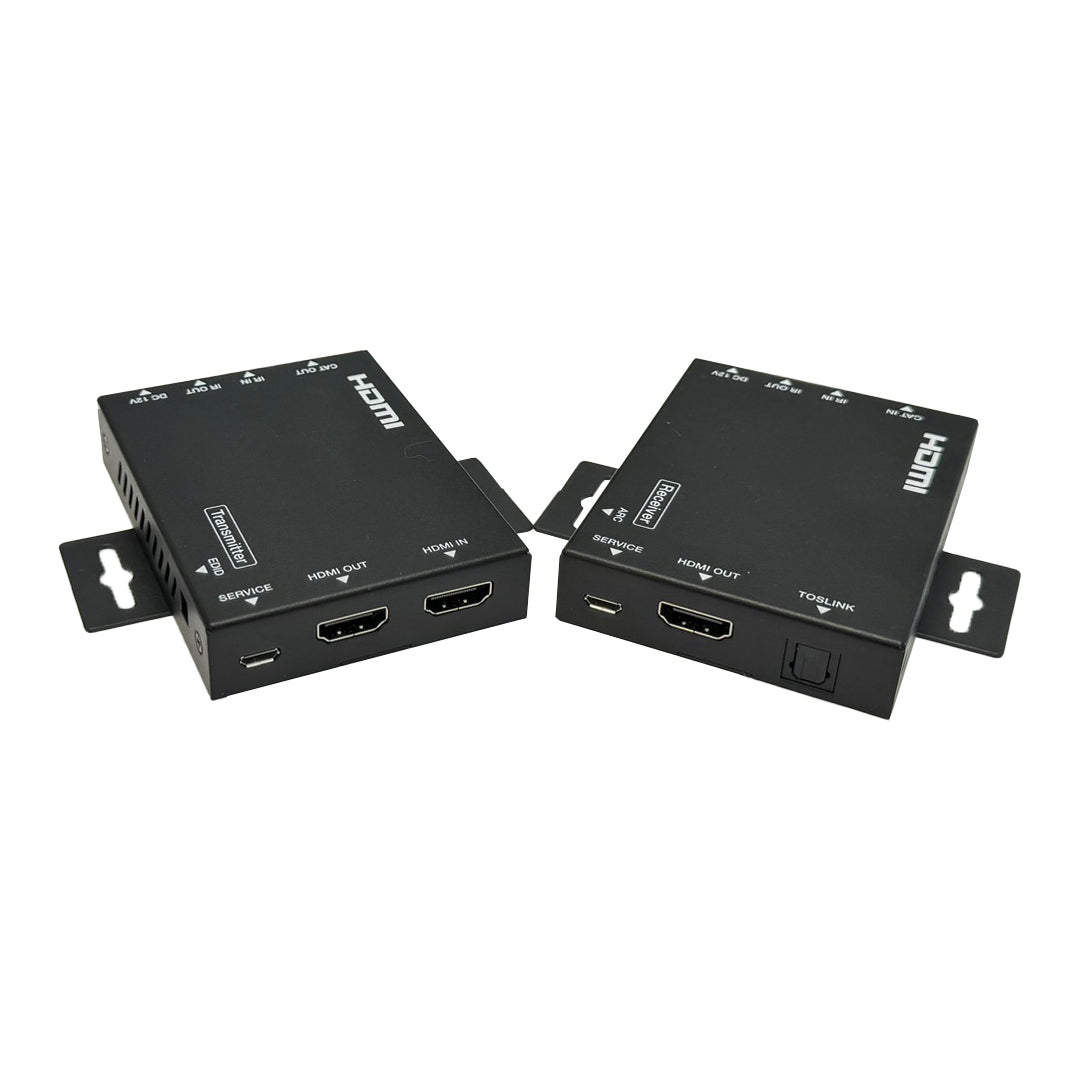

| Transmitter | Input: 1 x HDMI IN (Type A, 19-pin female) Output: 1 x HDMI OUT (RJ45) 1 x CAT OUT (RJ45) Control: 1 x Service (Micro-USB Jack) 1 x IR IN (3.5mm Stereo Mini-Jack) 1 x IR OUT (3.5mm Stereo Mini-Jack) |
| Receiver | Input: 1 x CAT IN (RJ45) Output: 1 x HDMI OUT (Type A, 19-pin female) 1 x TOSLINK Control: 1 x Service (Micro-USB Jack) 1 x IR IN (3.5mm Stereo Mini-Jack) 1 x IR OUT (3.5mm Stereo Mini-Jack) |
| Performance | |
| HDMI Compliant | HDMI 2.0b |
| HDCP Compliant | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4KsK@60Hz RGB/YCBCR 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 4K2K@60Hz 4:4:4 - 70m 1080P - 70m (CAT6/6a cable) |
| Color Space | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Format | HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | Tx: 0.35 lbs Rx: 0.34 lbs |
| Package Weight | 1.44 lbs |
| Contents | |

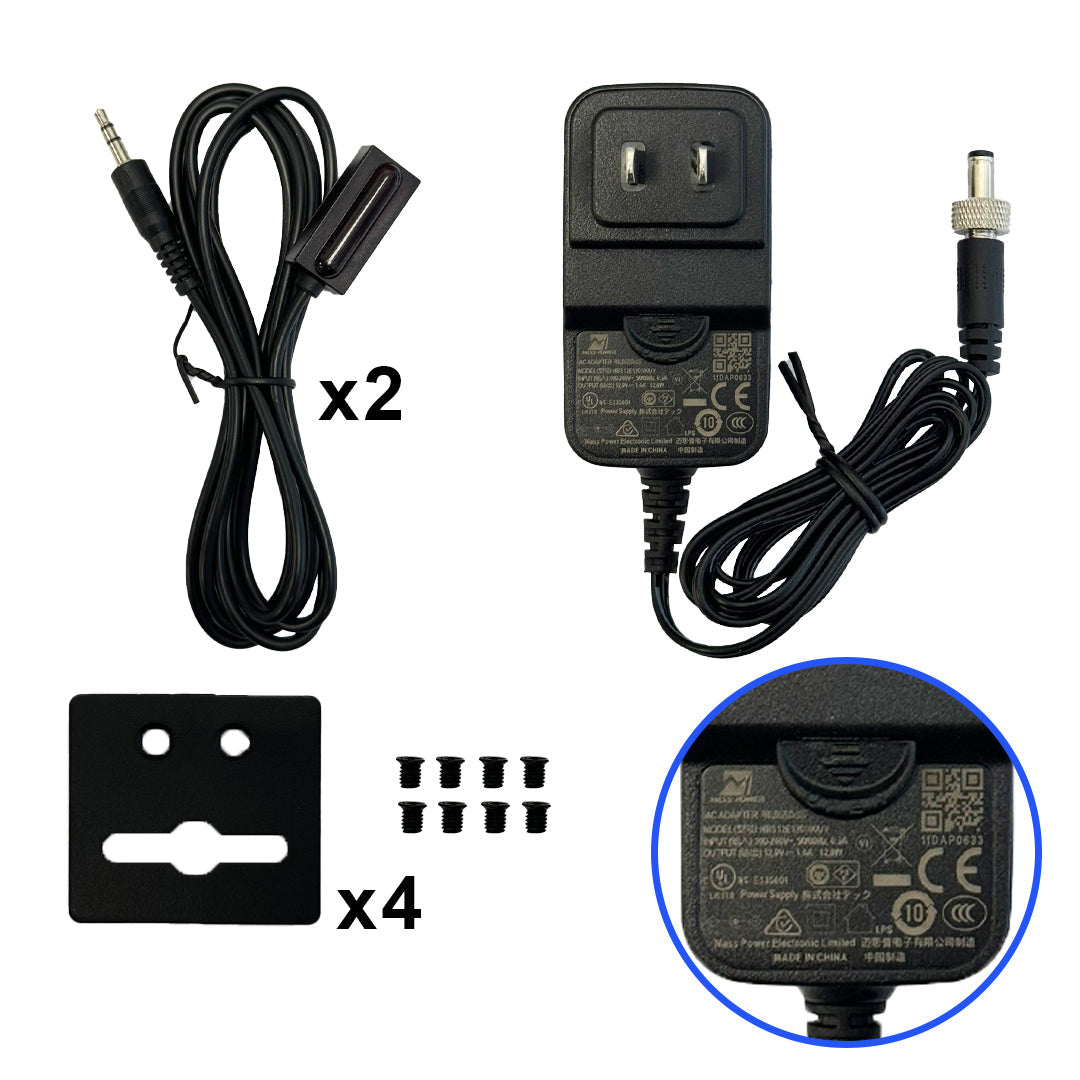

| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 1 - IR Blaster Cable (1.5 meters) | |
| 1 - IR Wideband Receiver Cable (1.5 meters) | |
| 1 - DC12V/1A Locking Power Adapter | |
| 4 - Mounting Ears | |
| 8 - Machine Screws (KM3*4) | |
| 1 - Manual | |
| Warranty Information | |
| Warranty | 1 Year Warranty |
1-YEAR WARRANTY
Infinite Cables Inc. offers a 1-year warranty on this product to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
