Description

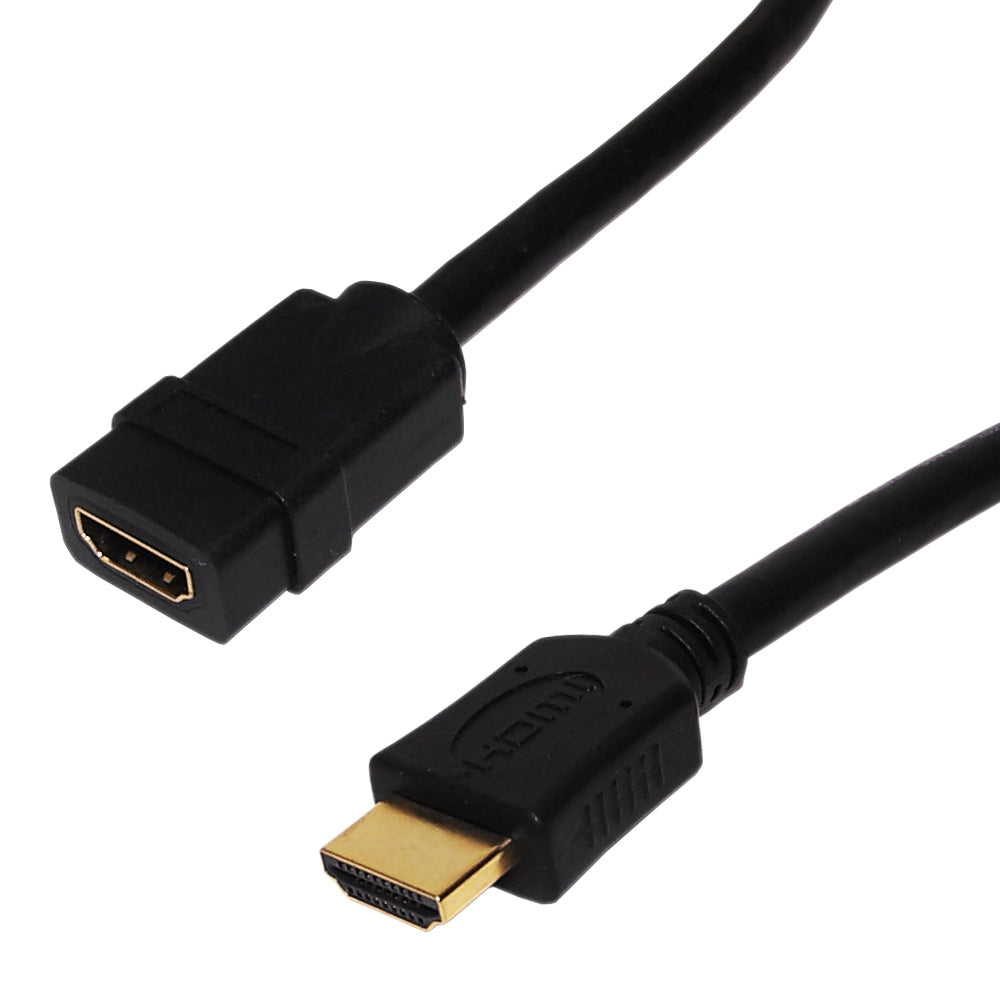

This High-Speed HDMIĀ® cable consists of a HDMI male connector on one end and an HDMI female on the other. It is typically used to extend a HDMI cable and supports ultra HD resolutions up to 4k x 2k.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 7.3 mm |
| Wire Gauge | 28 AWG |
| Shielding | 85% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CL3/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | HDMI Type A (19 pin) Male |
| Connector B | HDMI Type A (19 pin) Female |
| Performance | |
| Max. Resolution | 4K@60Hz |
| Built in Ethernet Channel | Yes |
| Min. Bandwidth | 10.2Gbps |
| Audio | Audio return channel |
| HDMI Version | 1.4 |
| Support 3D | Yes |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 8 inch | 3ft | 6ft | 10ft |
|---|---|---|---|
| 0.05 lbs | 0.15 lbs | 0.35 lbs | 0.50 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| HDMI-141-00.8 | 8 inch | 0.05 lb |
| HDMI-141-03 | 3ft | 0.15 lb |
| HDMI-141-06 | 6ft | 0.21 lb |
| HDMI-141-10 | 10ft | 0.33 lb |
