Description

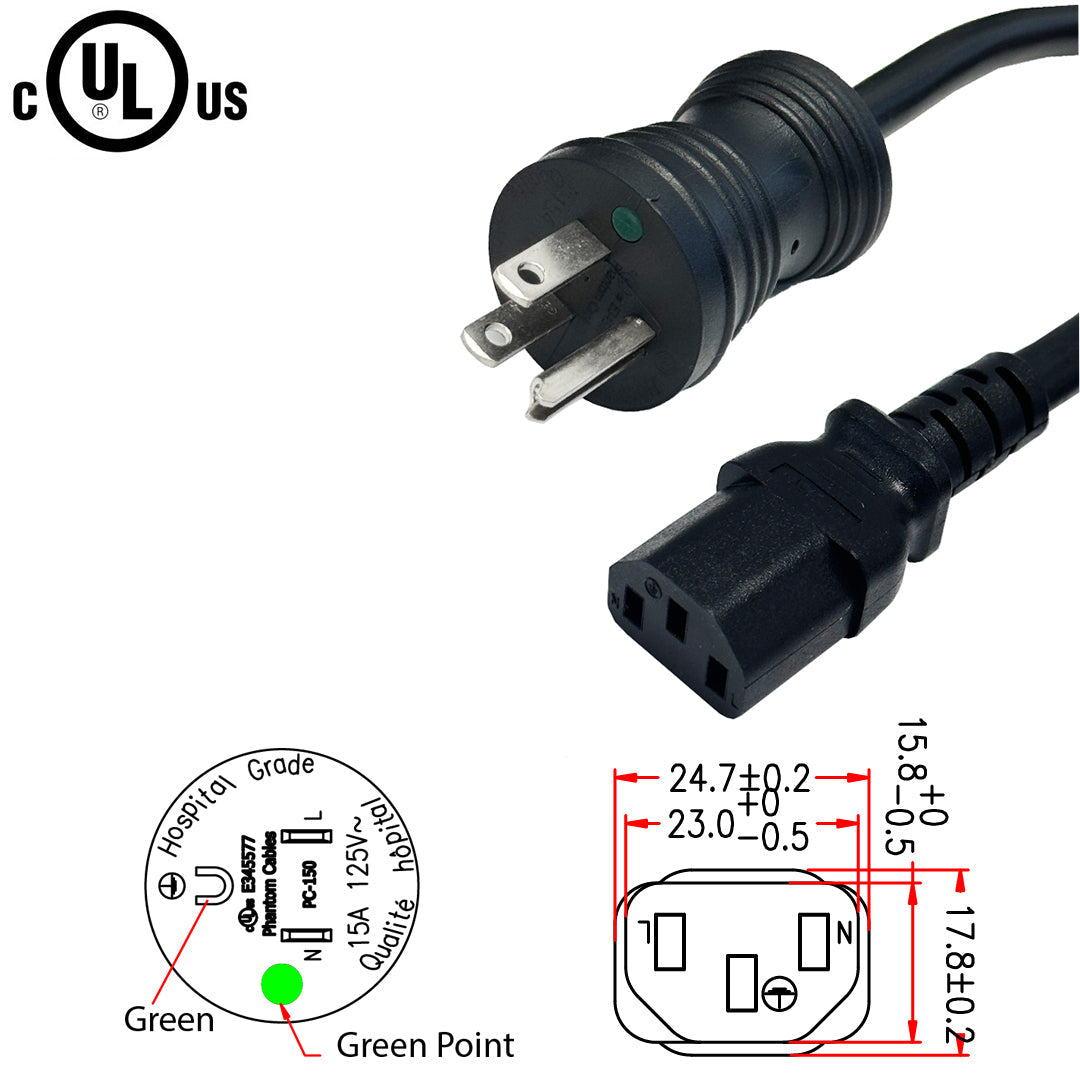

This power cord consists of a 5-15P hospital grade male on one end and a C13 female on the other end. It is typically used to connect hospital equipment to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2, VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 C13 |
| Connector B | NEMA 5-15P Hospital Grade |
| Performance | |
| Power Rating | 15 Amp / 125 Volt |
| Approvals | |
| C13 |
c(UL)us |
| 5-15P |
c(UL)us |
| Cable |
c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.43 lbs | 0.71 lbs | 1.08 lbs | 1.56 lbs |
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| PWC-H105C-03 | 3ft | 0.36 lb |
| PWC-H105C-06 | 6ft | 0.65 lb |
| PWC-H105C-10 | 10ft | 1.03 lb |
| PWC-H105C-15 | 15ft | 1.5 lb |
