Description

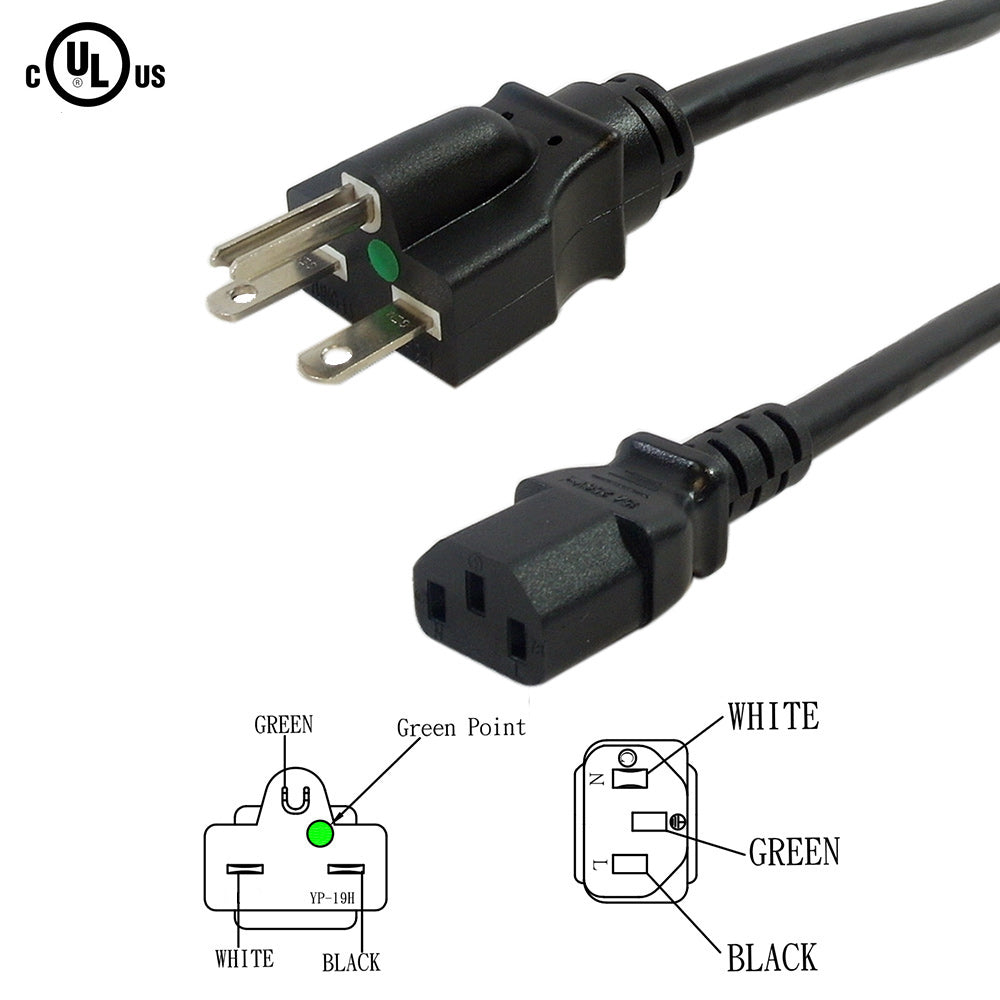

This power cord consists of a 6-15P hospital grade male on one end and a C13 female on the other end. It is typically used to connect hospital equipment to a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | NEMA 6-15P Hospital Grade |
| Connector B | IEC 60320 C13 |
| Performance | |
| Power Rating | 15 Amp / 250 Volt |
| Approvals | |
| 6-15P | (UL) |
| C13 | c(UL)us, CSA |
| Cable | c(UL)us, CSA |
| ISO | ISO 9001:2000, ISO 14000 |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 6ft | 10ft | 15ft |
|---|---|---|
| 0.70 lbs | 1.09 lbs | 1.58 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| PW-H135-06 | 6ft | 0.65 lb |
| PW-H135-10 | 10ft | 1.03 lb |
| PW-H135-15 | 15ft | 1.5 lb |
