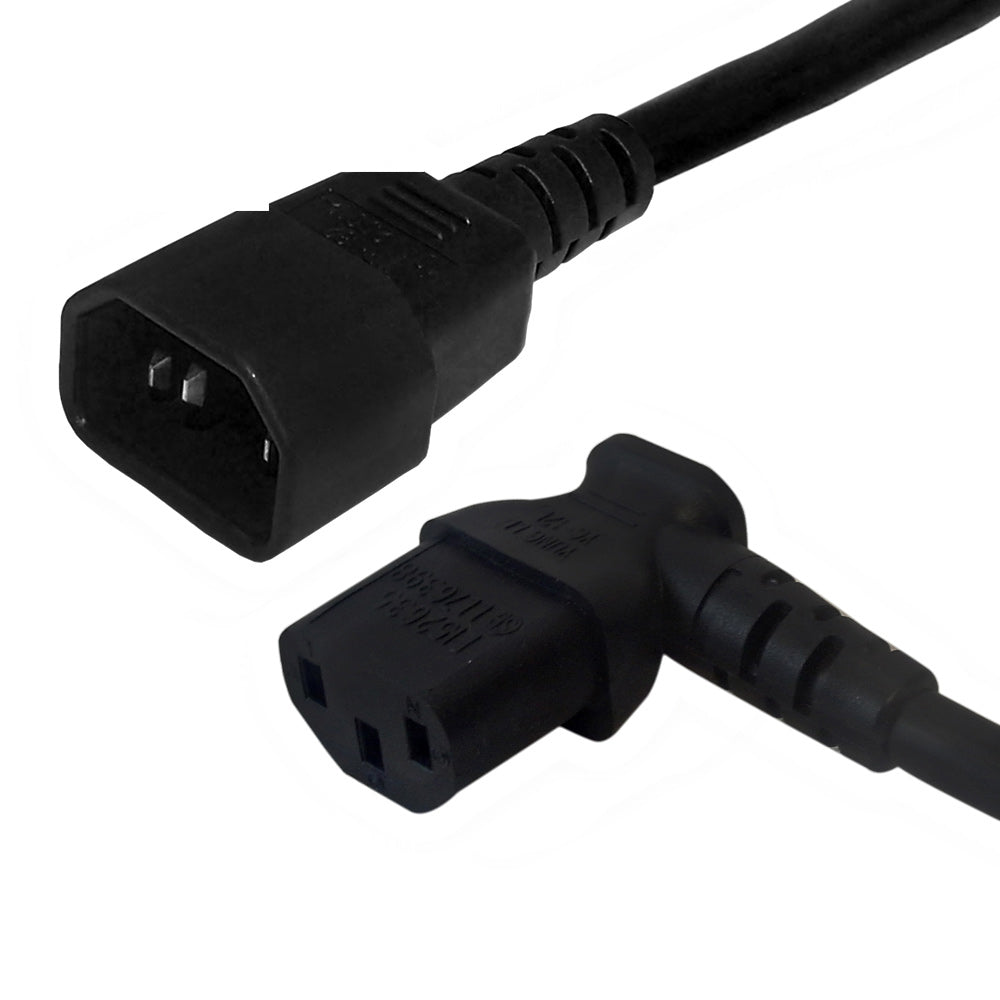

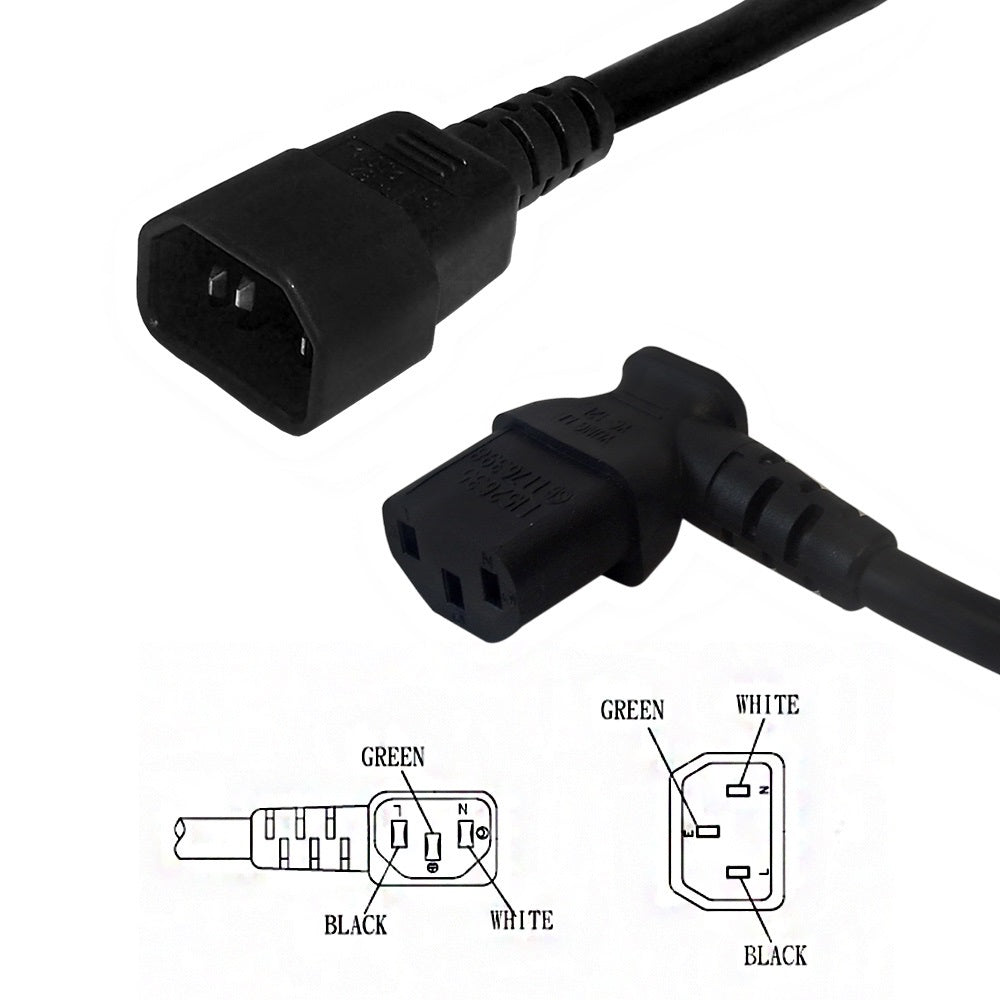

This power cord consists of a C14 male on one end and a C13 right angle female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics |
Color |
Black |
Number of Conductors |
3 Conductor |
Wire Gauge |
18 AWG |
Jacket |
Heavy Duty SJT |
Jacket Material |
100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating |
FT2 VW-1 |
Strain Relief |
Molded 100% Virgin PVC |
Temperature Rating |
-20 deg C to 105 deg C |
Connector(s) |
Connector A |
IEC 60320 C13 Right Angle |
Connector B |
IEC 60320 C14 |
Performance |
Power Rating |
10 Amp / 250 Volt |
Approvals |
C13 | c(UL)us, CSA |
C14 | c(UL)us, CSA |
Cable | c(UL)us, CSA |
ISO | ISO 9001:2015, ISO 14000 |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Conflict Minerals |
Yes |
Packaging Information |
Package Quantity |
1 |
Warranty Information |
Warranty |
Limited Lifetime |
3ft | 6ft | 12ft |
0.28 lbs | 0.51 lbs | 0.85 lbs |
