Overview

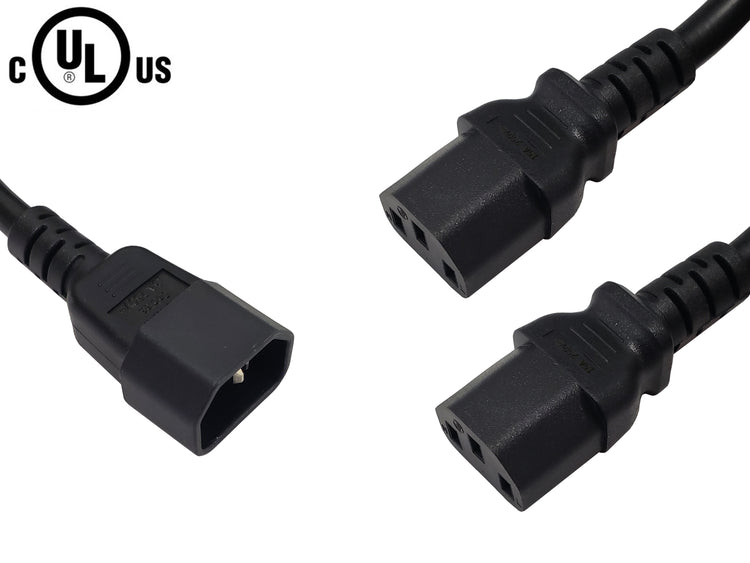

This power cord consists of a C14 male on one end and two C13 females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
|
|
Heavy Duty SJT JacketMolded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable. 100% Continuity and High Voltage TestedAll cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping. c(UL)us ApprovedBoth cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18AWG / 16AWG / 14AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Conductor Material | 100% bare copper |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 C14 |
| Connector B | IEC 60320 C13 |
| Connector B | IEC 60320 C13 |
| Performance | |
| Power Rating | 10 Amp / 250 Volt (18AWG) 14 Amp / 250 Volt (16AWG) 15 Amp / 250 Volt (14AWG) |
| Approvals | |
| C14 | c(UL)us |
| C13 | c(UL)us |
| C13 | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2000, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1ft | 2ft | 3ft | 6ft | 12ft |
|---|---|---|---|---|
| 0.39 lbs | 0.46 lbs | 0.61 lbs | 0.81 lbs | 1.24 lbs |
| SKU | Options | Weight |
| PWC-200-01 | 1ft / 18AWG | 0.17 lb |
| PWC-200C-01 | 1ft / 14AWG | 0.17 lb |
| PWC-200-02 | 2ft / 18AWG | 0.29 lb |
| PWC-200C-02 | 2ft / 14AWG | 0.29 lb |
| PWC-200-03 | 3ft / 18AWG | 0.36 lb |
| PWC-200C-03 | 3ft / 14AWG | 0.36 lb |
| PWC-200-06 | 6ft / 18AWG | 0.65 lb |
| PWC-200C-06 | 6ft / 14AWG | 0.65 lb |
| PWC-200-12 | 12ft / 18AWG | 1.23 lb |
| PWC-200C-12 | 12ft / 14AWG | 1.23 lb |
