Description

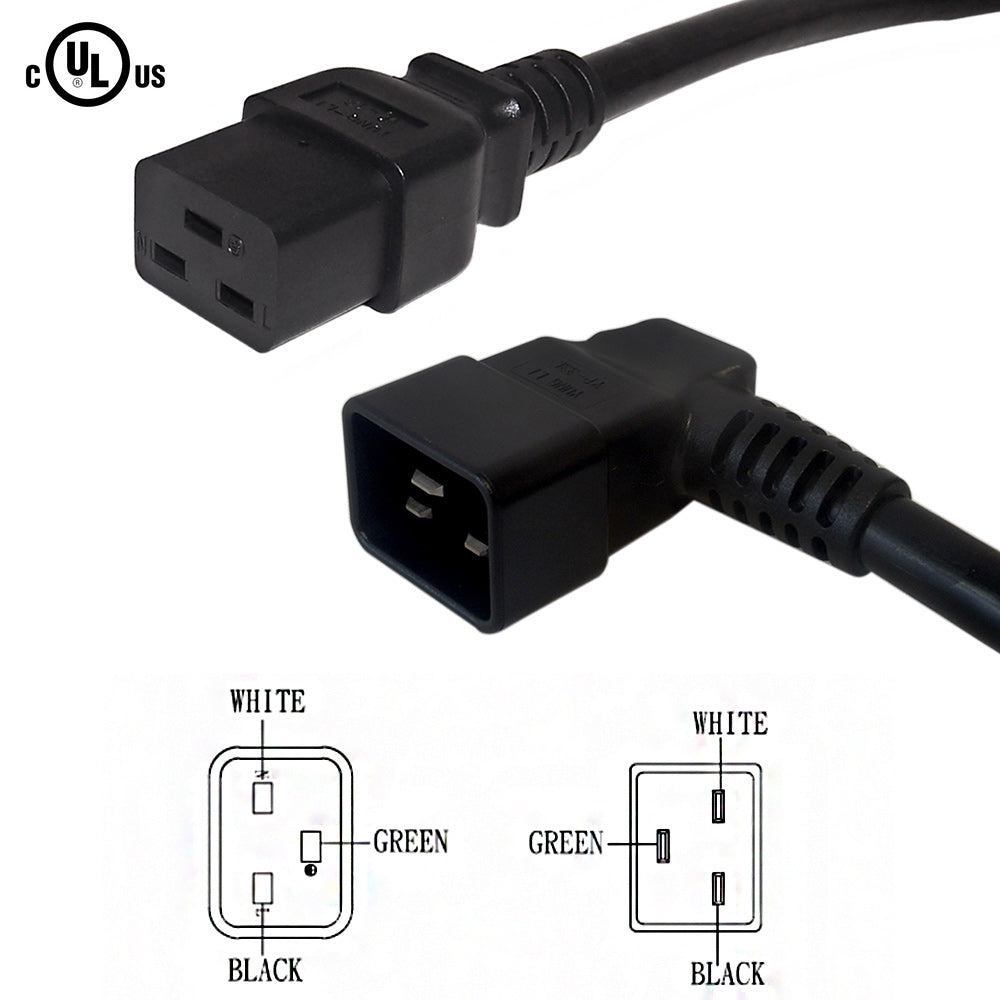

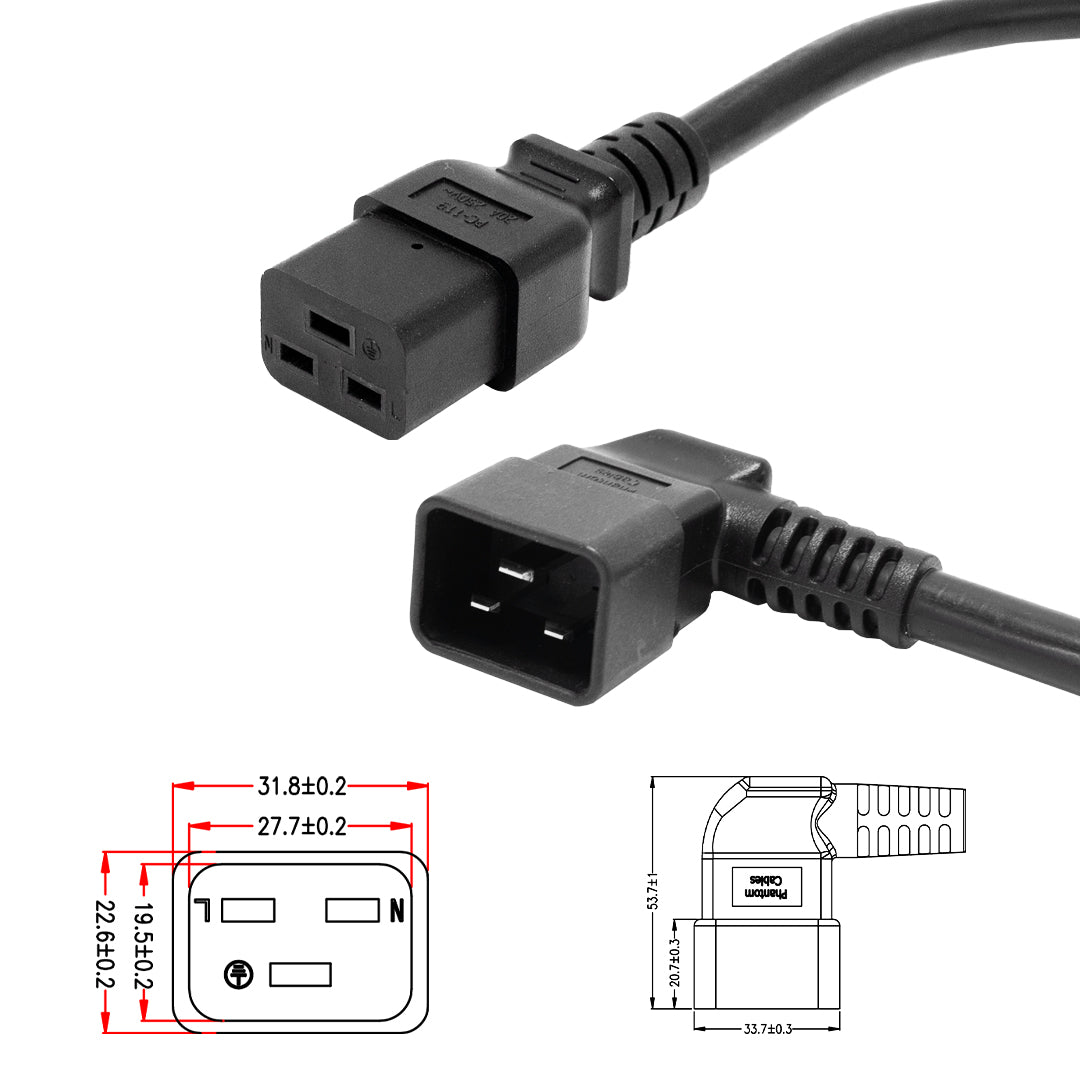

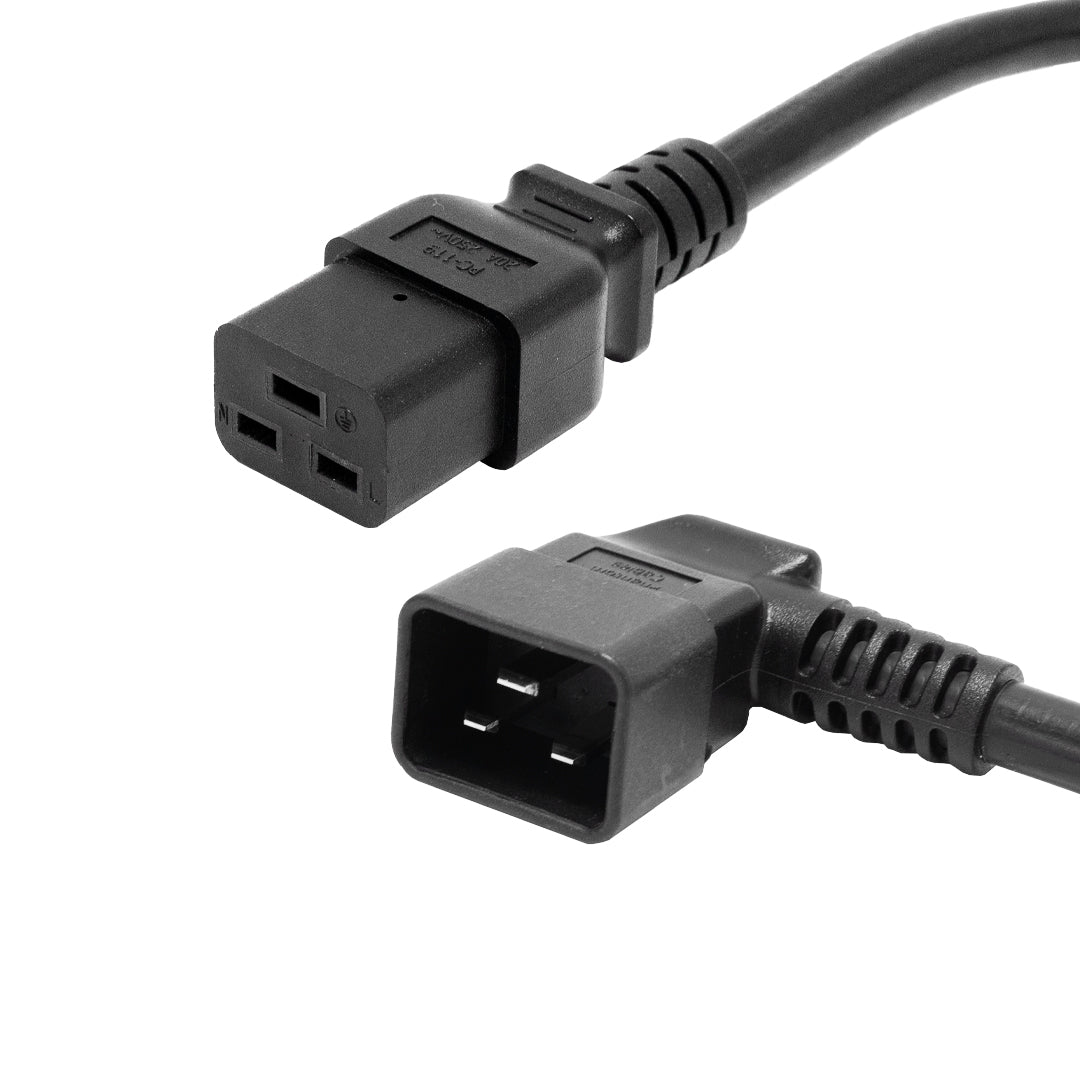

This power cord consists of a C20 left angle male on one end and a C19 female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. Premium quality connectors are used to ensure a secure fit. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 C19 |
| Connector B | IEC 60320 C20 Left Angle |
| Performance | |
| Power Rating | 20 Amp / 250 Volt |
| Approvals | |
| C19 | c(UL)us |
| C20 | c(UL)us |
| Cable | c(UL)us, CSA - (PW-125L0-xx) c(UL)us - (PWC-125L0-xx) |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 2ft | 3ft | 4ft | 6ft | 10ft | 12ft |
|---|---|---|---|---|---|
| 0.60 lbs | 0.70 lbs | 1.00 lbs | 1.20 lbs | 1.80 lbs | 1.88 lbs |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| PWC-125L0-02 | 2ft | 0.29 lb |
| PWC-125L0-03 | 3ft | 0.36 lb |
| PW-125L0-04 | 4ft | 0.47 lb |
| PW-125L0-06 | 6ft | 0.65 lb |
| PW-125L0-10 | 10ft | 1.03 lb |
