Description

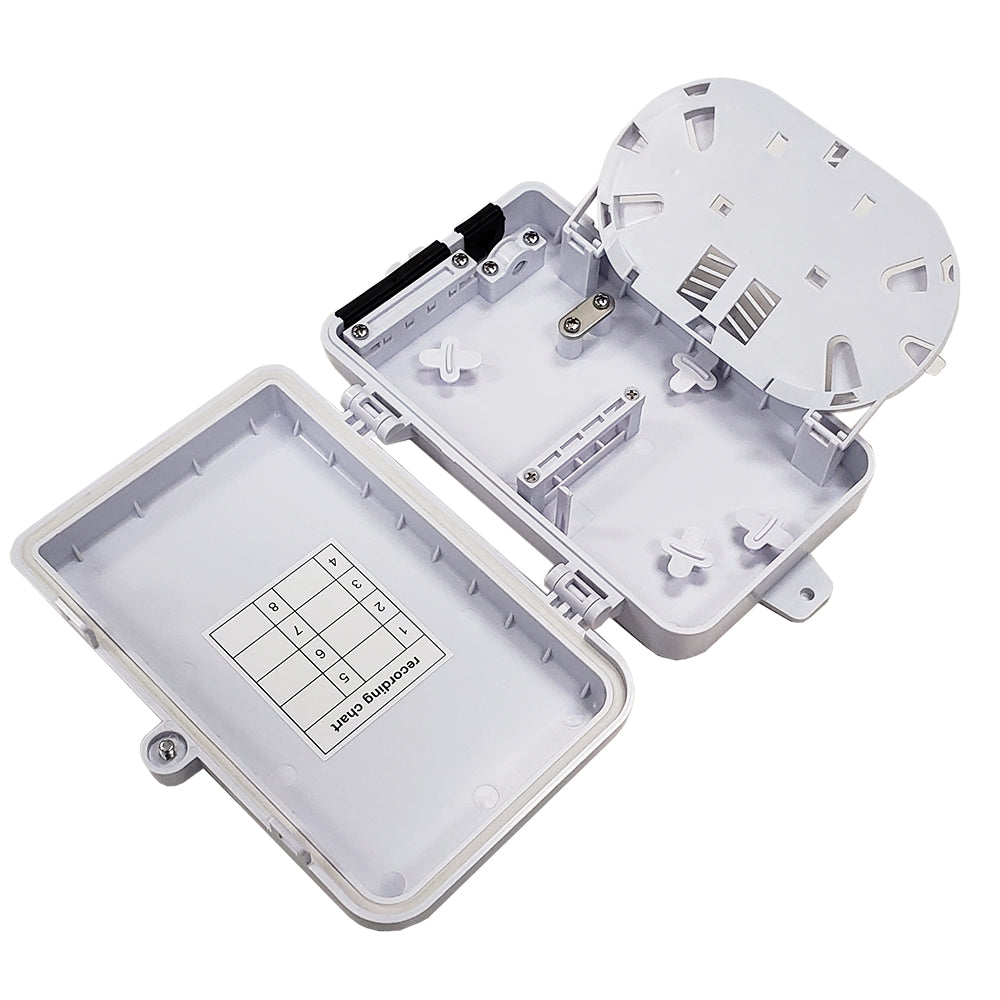

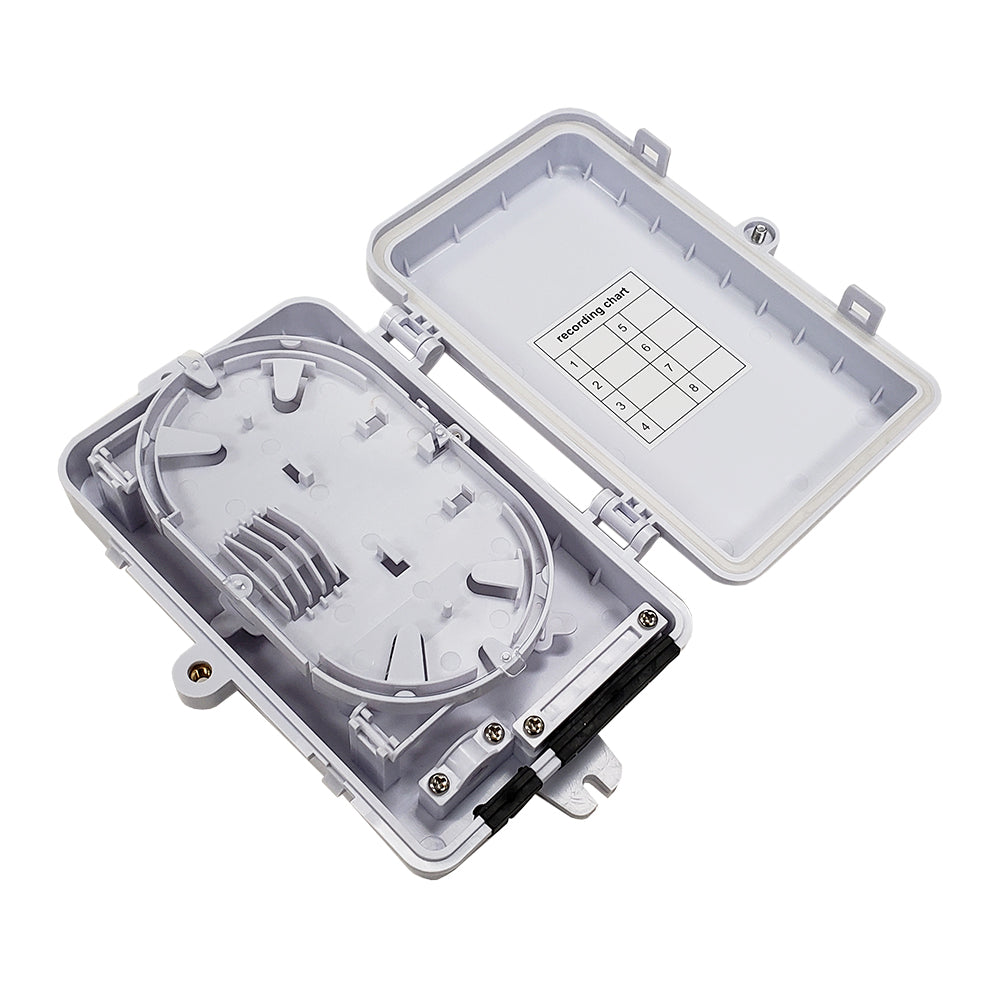

This plastic indoor/outdoor fiber optic terminal box has a latching top for easy access and accepts up four SC simplex or four LC duplex panel mount couplers. It is used to interconnect fiber splices and terminated fiber cables. The unit comes with four splice sleeves, clear tubing, cable ties, cable management and mounting hardware.Ā
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | Plastic |
| Product Dimensions | 4.5" W x 7.25" L x1.5" H |
| Compatible Adapters | |
| FO-AD604-PM | SC/SC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Blue |
| FO-AD604-PMA | SC/SC APC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Green |
| FO-AD804-PM | SC/SC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Simplex Ceramic Panel Mount, Aqua |
| FO-AD108-PM | LC/LC Fiber Coupler F/F Multimode OM1/OM2 Duplex Ceramic Panel Mount, Beige |
| FO-AD208-PM | LC/LC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Blue |
| FO-AD208-PMA | LC/LC APC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Green |
| FO-AD408-PM | LC/LC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Duplex Ceramic Panel Mount, Aqua |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.66 lbs [0.29kg] |
| Contents | |
| Included in Package | 1 - Fiber Terminal Box 4 - Splice Sleeves 1 - Clear Tube 2 - Cable Ties 3 - Mounting Hardware |
Spec Sheets
Product Weights
| SKU | Weight | |
| PP-F1652-GY | 0.66 lb |
