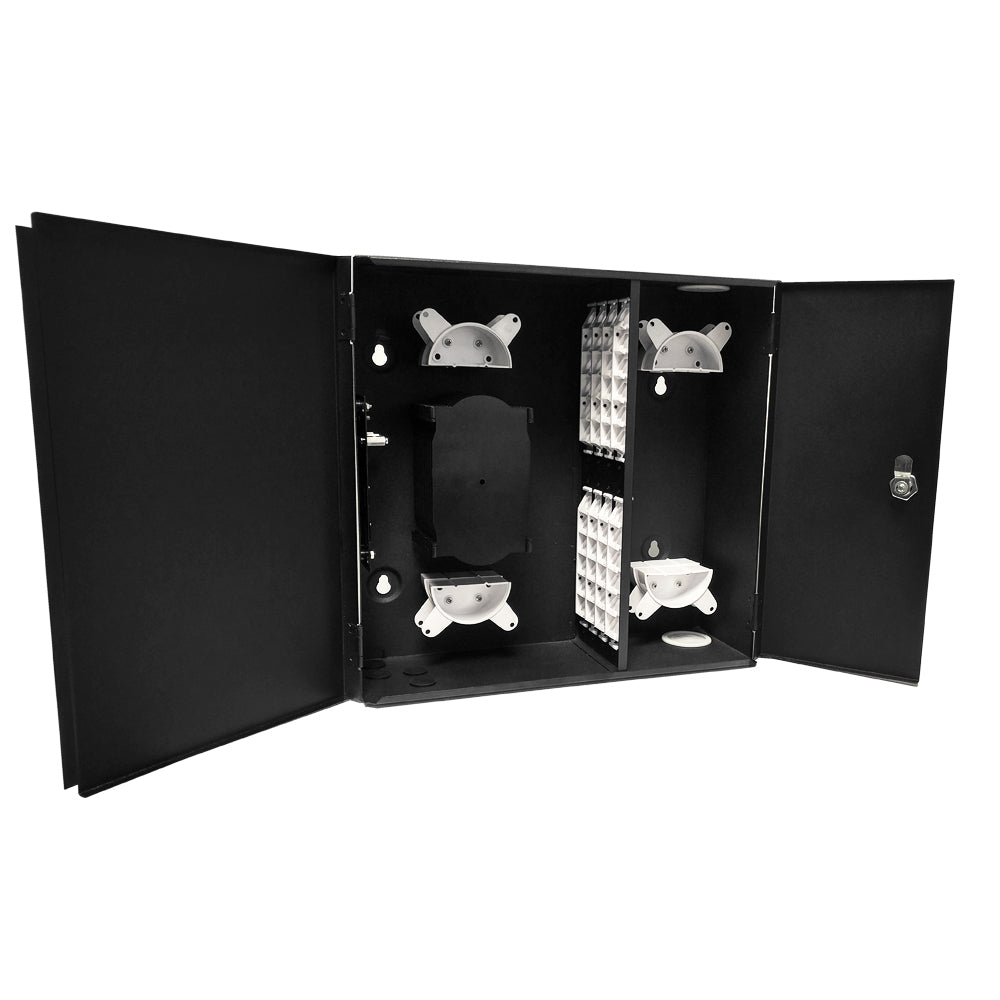

Name: Indoor Wall Mounted Fiber Optic Distribution Box (48 Couplers Maximum) - Black
Brand: Fiber Optic Wall Boxes & Splice Enclosures
SKU: PP-F1503-BK
Price: 78.37 USD
Availability: InStock

Indoor Wall Mounted Fiber Optic Distribution Box 48 Couplers Maximum - Black

Description
Spec Sheets
Product Weights

Description

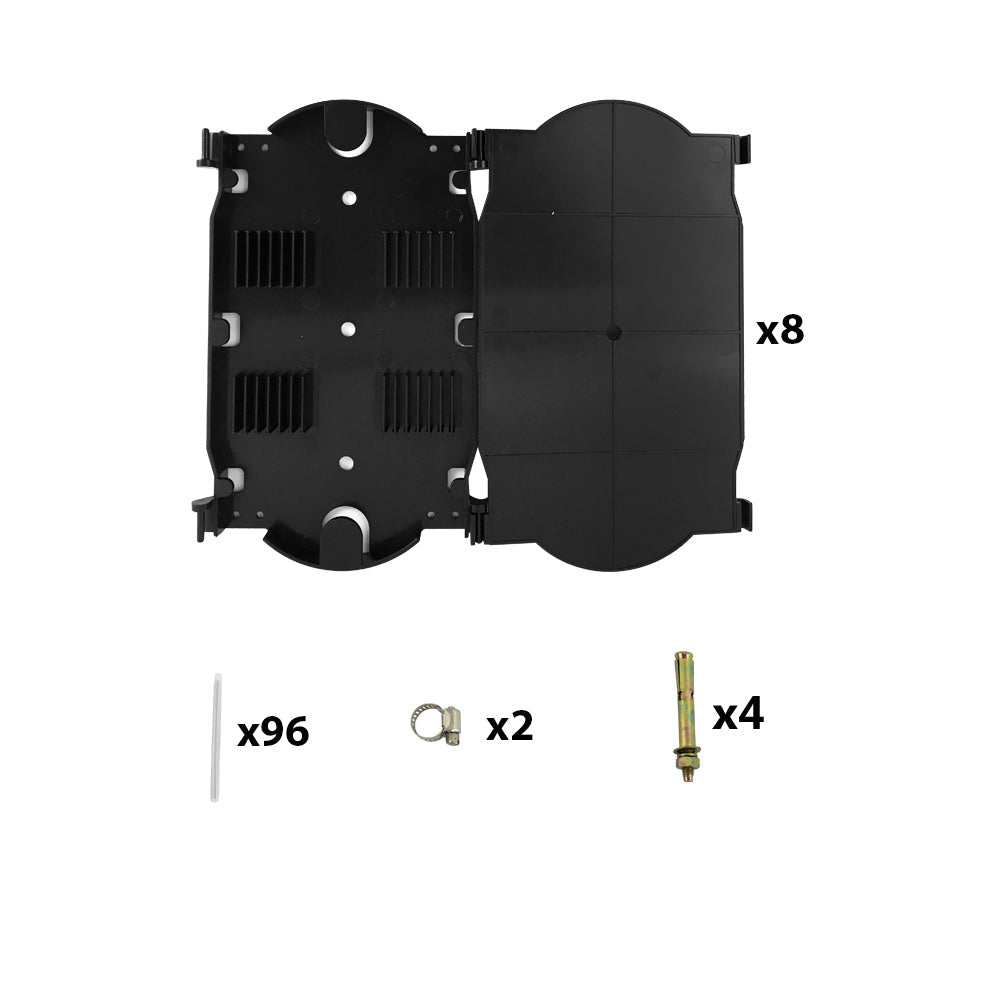

This wall mount fiber optic enclosure is meant for indoor use and can accommodate up to 48 fiber couplers (48 SC or ST simplex couplers or 48 LC duplex couplers). It is used to interconnect fiber splices and terminated fiber cables. The unit comes with eight 12-fiber splice trays, four cable routing clamps, 96 splice sleeves, eight 6-port blank adapter panels and mounting hardware.

Physical Characteristics
Color	Black (Powder Coat)
Material	Steel
Product Dimensions	15.75"W x 15"H x 5.75"D inches [40W x 38H x 14D cm]
Wall-Mountable	Yes
Splice Tray Compatibility	FO-SS60-50 & FO-SS40-50
Compatible Adapters
FO-AD504-PM	SC/SC Fiber Coupler F/F Multimode OM1/OM2 Simplex Ceramic Panel Mount - Beige
FO-AD604-PM	SC/SC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Blue
FO-AD604-PMA	SC/SC APC Fiber Coupler F/F Singlemode Simplex Ceramic Panel Mount, Green
FO-AD804-PM	SC/SC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Simplex Ceramic Panel Mount, Aqua
FO-AD108-PM	LC/LC Fiber Coupler F/F Multimode OM1/OM2 Duplex Ceramic Panel Mount, Beige
FO-AD208-PM	LC/LC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Blue
FO-AD208-PMA	LC/LC APC Fiber Coupler F/F Singlemode Duplex Ceramic Panel Mount, Green
FO-AD408-PM	LC/LC Fiber Coupler F/F Multimode 50 Micron 10gig OM3/OM4 Duplex Ceramic Panel Mount, Aqua
FO-AD600-WB	ST/ST Fiber Coupler F/F SM/MM Simplex for use with PP-F1500 and PP-F1600
Environmental
RoHS	Yes
Packaging Information
Package Quantity	1
Product Weight	11.6 lbs [5.3kg]
