Overview
This 10TB hard disk drive is engineered to work for surveillance security systems. It is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback.
Features
- Storage for advanced smart video solutions
- Exclusive AllFrameā¢ AI technology
- Multiple cameras, multiple streams
- Advanced workload capability for advanced systems
- Designed for reliable operation in advanced high-performance smart video solutions
- Field-proven high capacity
- Proactive storage management with WDDA
Specifications
|
Physical Characteristics
|
| Form Factor |
3.5 inch |
| Dimensions |
5.7" x 4.0" x 1.0" (147 x 102 x 26mm) |
| Operating Temperature |
0Ā°C to 65Ā°C |
| Non-Operating Temperature |
-40Ā°C to 70Ā°C |
|
Performance
|
| Formatted Capacity (Part Number) |
1TB (WD10PURX) |
2TB (WD20PURX) |
4TB (WD40PURX) |

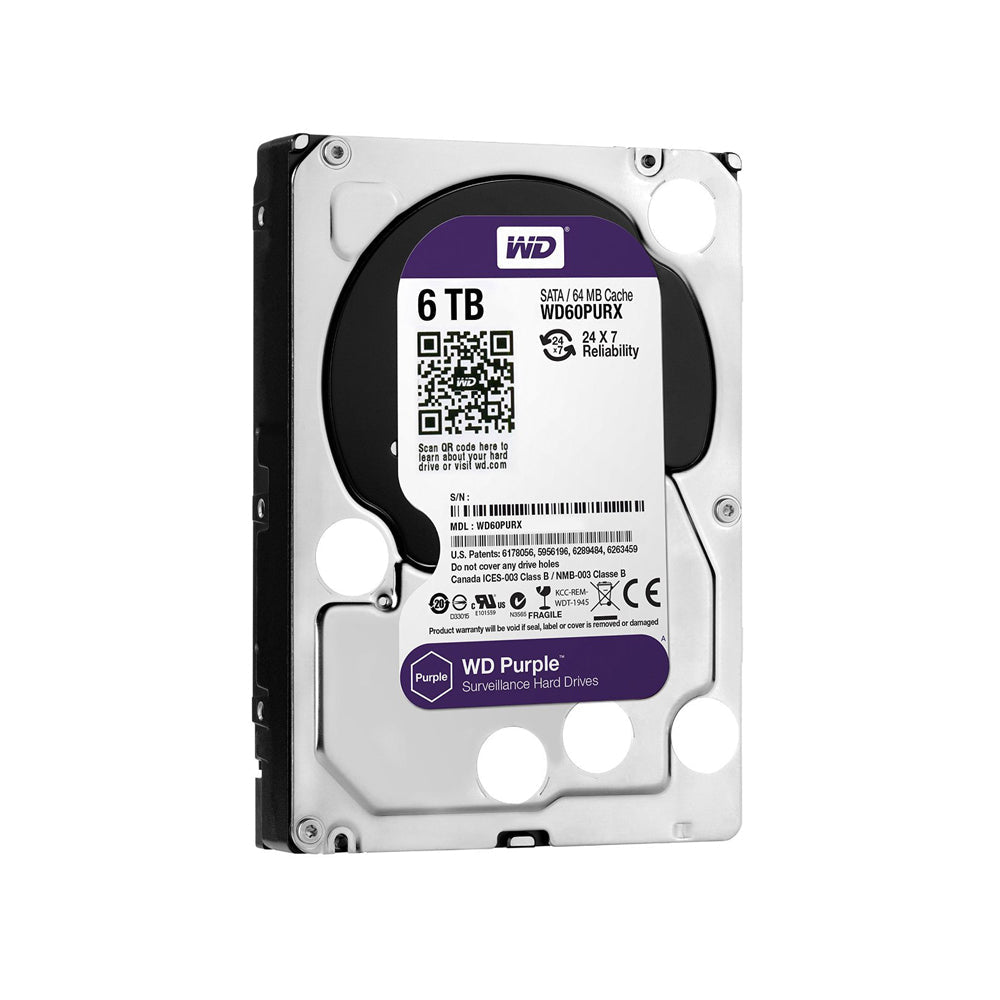

6TB (WD62PURX) |

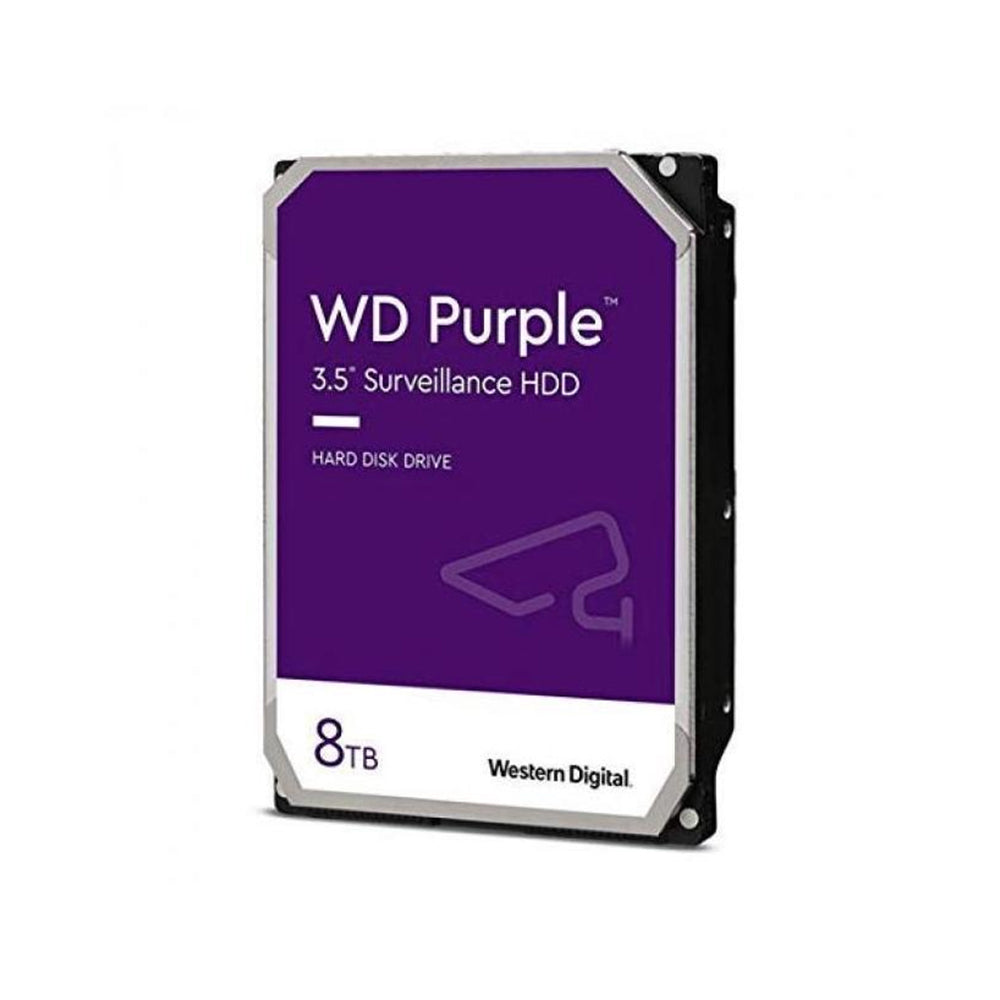

8TB (WD84PURZ) |

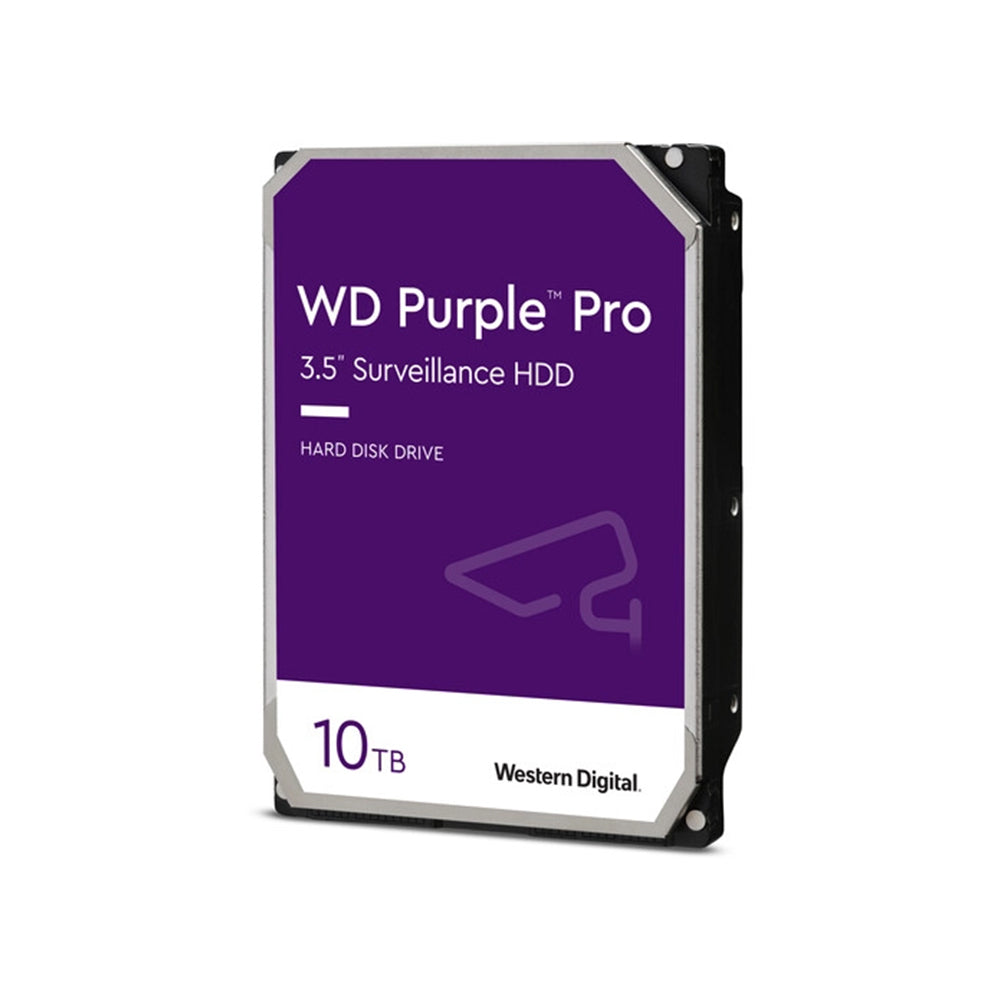

10TB (WD101PURP) |
| Cache |
64MB |
64MB |
64MB |
64MB |
|
|
| Data Transfer Rate |
Buffer to Host - 6 GB/s
Host to/from drive (sustained) - 110 MB/s |
Buffer to Host: 6 GB/s
Host to/from Drive (Sustained): 145 MB/s |
Buffer to Host: 6 GB/s
Host to/from Drive (Sustained): 150 MB/s |
Buffer to Host: 6 GB/s
Host to/from Drive (Sustained): 175 MB/s |
Buffer to Host: 6 GB/s
Host to/from Drive (Sustained): 265 MB/s |
Buffer to Host: 6 GB/s
Host to/from Drive (Sustained): 265 MB/s |
| Hard Disk Interface |
SATA |
| Rotational Speed (RPM) |
7200 IntelliPowerā¢ |
| Load/Unload Cycles |
300,000 |
300,000 |
300,000 |
300,000 |
600,000 |
600,000 |
| Non-Recoverable Read Errors per Bits Read |
< 1 in 1014
|
< 1 in 1014
|
< 1 in 1014
|
< 1 in 1014
|
< 1 in 1015
|
< 1 in 1015
|
|
Power Management
|
| Average Power Requirements |
Read/Write - 3.3W
Idle - 2.9W
Standby and Sleep - 0.4W |
Read/Write - 4.4W
Idle - 4.1W
Standby and Sleep - 0.4W |
Read/Write - 5.1W
Idle - 4.5W
Standby and Sleep - 0.4W |
Read/Write - 5.3W
Idle - 4.9W
Standby and Sleep - 0.4W |
Read/Write - 8.6W
Idle - 7.4W
Standby and Sleep - 0.4W |
Read/Write - 9W
Idle - 8W
Standby and Sleep - 0.5W |
|
Approvals
|
| RoHS |
Compliant |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.99 lbs [0.45 kg] |
1.40 lbs [0.64 kg] |
1.50 lbs [0.68 kg] |
1.65 lbs [0.75 kg] |
1.58 lbs [0.72 kg] |
1.65 lbs [0.75 kg] |
