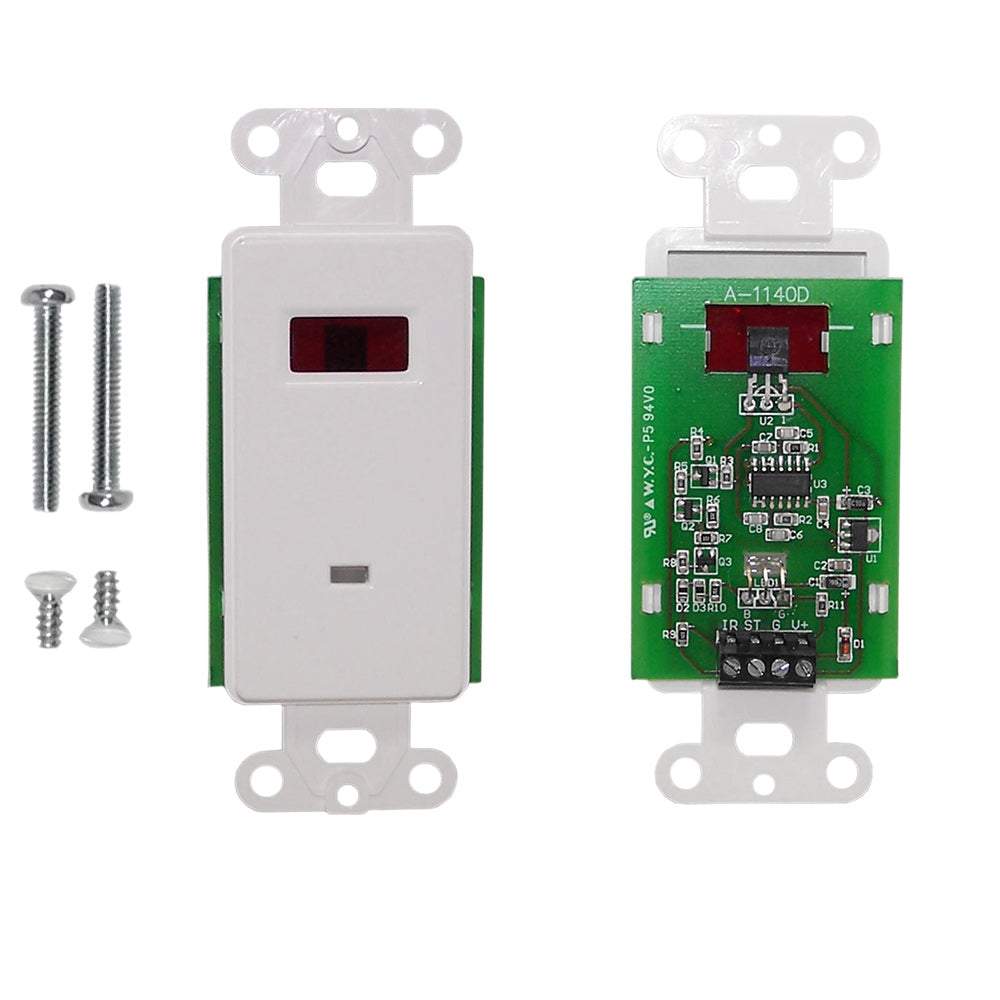

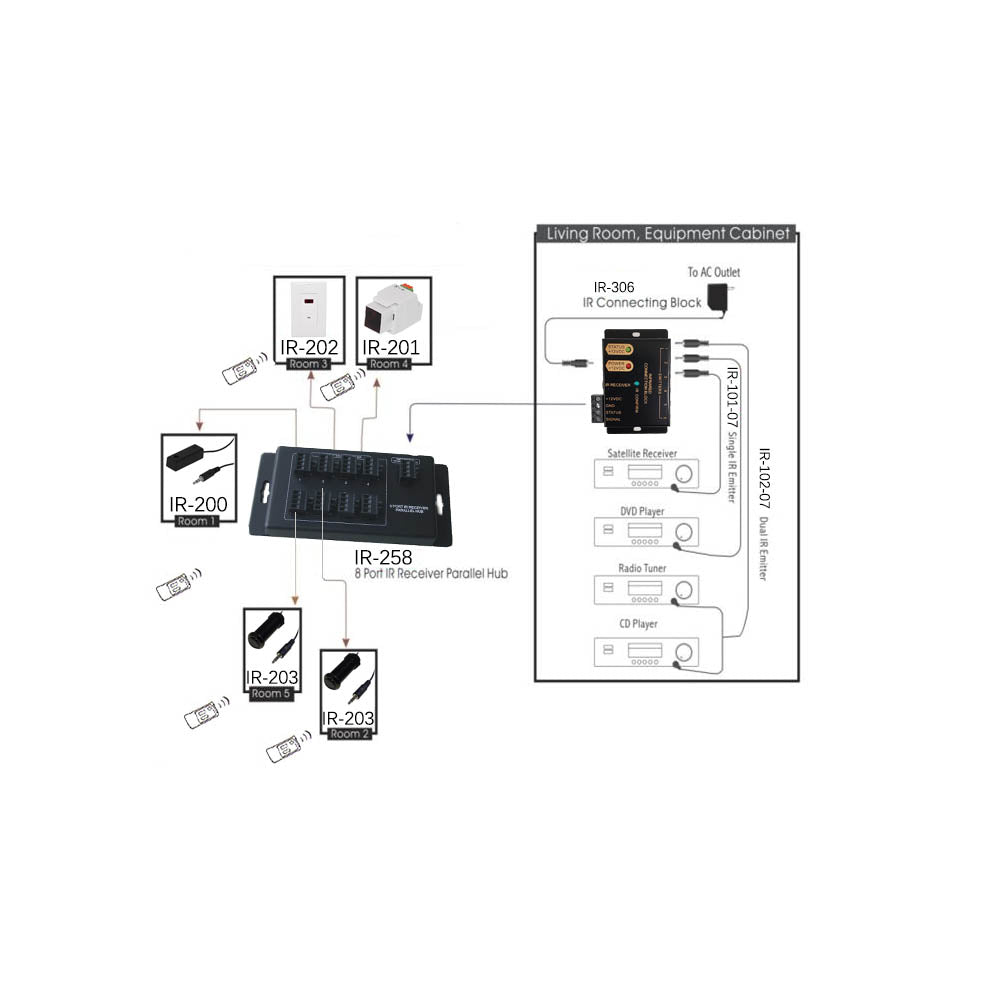

This dual band IR receiver mounts to a single gang standard electrical box using a decora cover plate. It is meant to receive remote control commands and be connected to an IR connecting block.
Physical Characteristics
Color
White
Material
ABS
Plate Size
Single Gang
Wire Requirements
Cat5e/Cat6 Cable
Performance
IR Frequency Range
30 KHz to 60 KHz
Range
40ft. at 38 KHz 25ft. at 56 KHz
System Status Indicator
Green LED
Talk Back Indicator
Blue LED
Power
12VDC, 30mA Max
Status Power
12VDC, 3mA Max
Packaging Information
Package Quantity
1
Product Weight
0.15 lbs [0.06kg]
Contents
Included in Package
1 - IR Dual Band Decora Wall Plate Receiver Kit 2 - Pair of Screws
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
SKU
Weight
IR-202
0.15 lb
