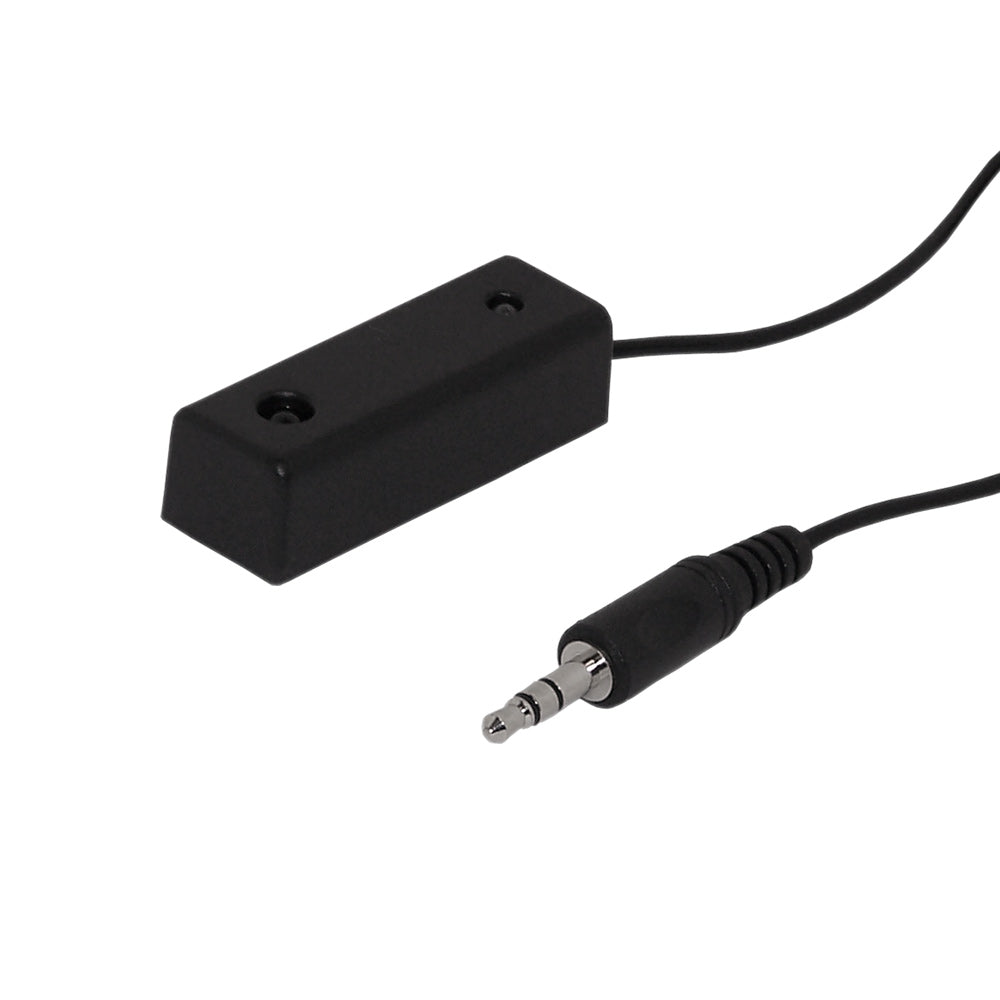

This IR surface mount receiver consists of a dual band surface mount receiver on one end and a 3.5mm stereo male plug on the other end. It is meant to receive remote control commands and be connected to an IR connecting block.
| Physical Characteristics |
|---|
| Cable Length |
10 foot [3m] |
| Color |
Black |
| Dimensions (LxWxH) |
45 x 14 x 13 mm |
| Connector(s) |
|---|
| Connector A |
Dual Band IR Receiver |
| Connector B |
1/8" (3.5mm) TRS Mini-Plug |
| Performance |
|---|
| IR Frequency Range |
30 KHz to 60 KHz |
| IR Pickup Range |
40ft at 38 KHz |
| IR Confirmation LED |
Compliant |
| CFL Friendly |
Compliant |
| Power |
12VDC, 30mA max |
| Packaging Information |
|---|
| Package Quantity |
1 |
| Product Weight |
0.1 lbs [0.04kg] |
| Contents |
|---|
| Included in Package |
1 - IR Dual Band Surface Mount Receiver
1 - Self-Adhesive Tape |
